To measure AC voltage, connect the Meter as follows:
1.
2.
Model UT805: OPERATING MANUAL
ACV
COM
RL
B. AC Voltage Measurement (See figure 5)
Warning
To avoid harms to you or damages to the Meter from
electric shock, please do not attempt to measure
voltages higher than 1000V or 750V rms although
readings may be obtained.
Take extra care when measuring high voltage to avoid
electric shock.
Insert the red test lead into the V/ terminal and the
black test lead into the COM terminal.
Press ACV button, the Meter is ready for
measurement after around 8 seconds. Auto ranging
is default, the Meter will select the appropriate range,
and an annunciator on the display will indicate
measurement unit. Or you could select the manual
ranging mode according to the “Selecting a
Measurement Range ( , AUTO and Button)”
section.

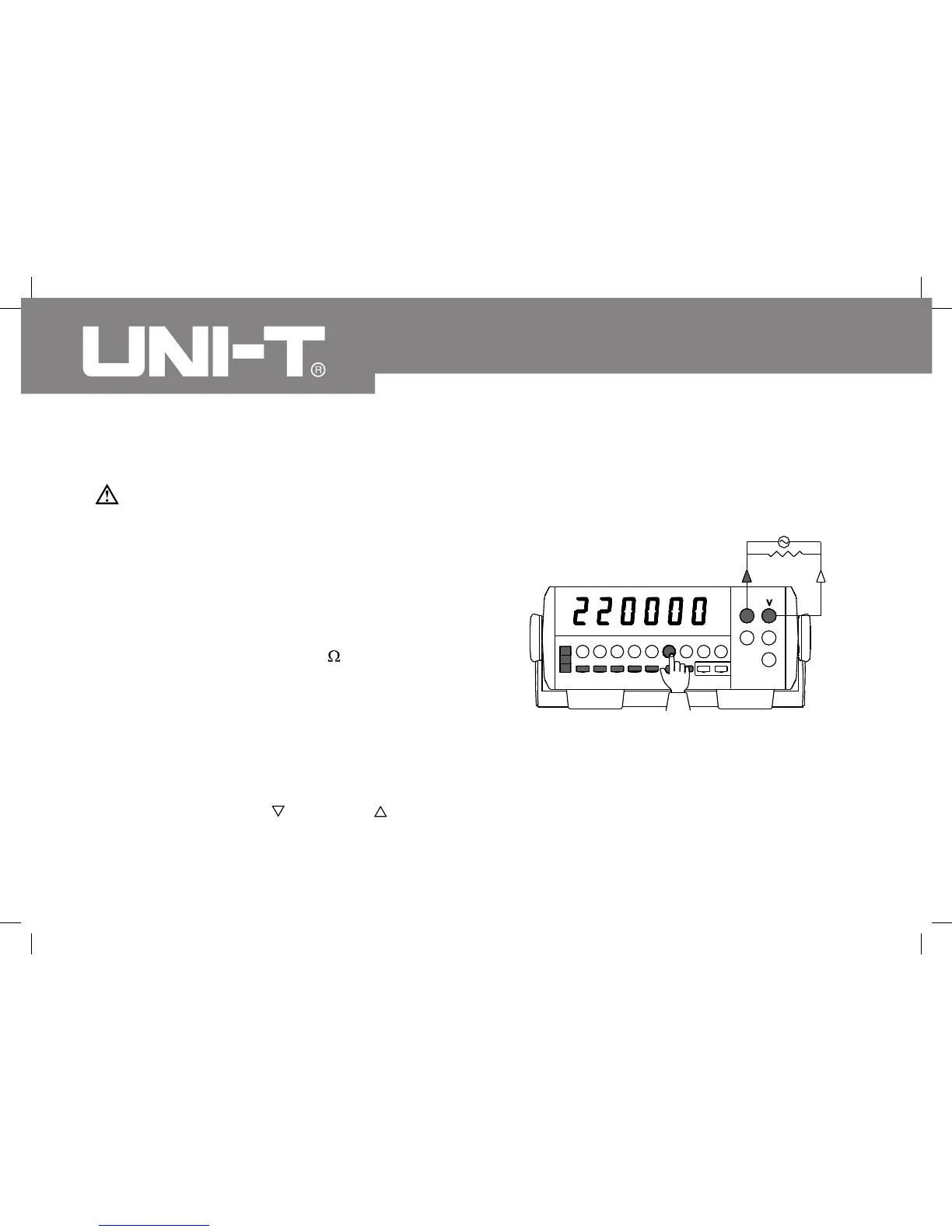

(figure 5)
To Next Page
