Your oscilloscope can measure 28 waveform parameters automatically. All auto
parameters can be measured with the cursors.
By using the cursors, you can quickly measure the time and voltage of a waveform.
Measuring one step voltage of the step signal
To measure one step voltage of the step signal, follow the steps below:
1. Press CURSOR to display the cursor measurement menu.
2. Press menu operation key F1 to set cursor type to VOLTAGE.
3. Turn the multifunction control knob to set cursor 1 at one step voltage of the step
signal.
4. Press SELECT to select the cursor, then turn the multifunction control knob again
to set cursor 2 at another step voltage of the step signal.
The cursor menu will automatically display the △V value, i.e. the voltage difference
of that point. See the figure below.

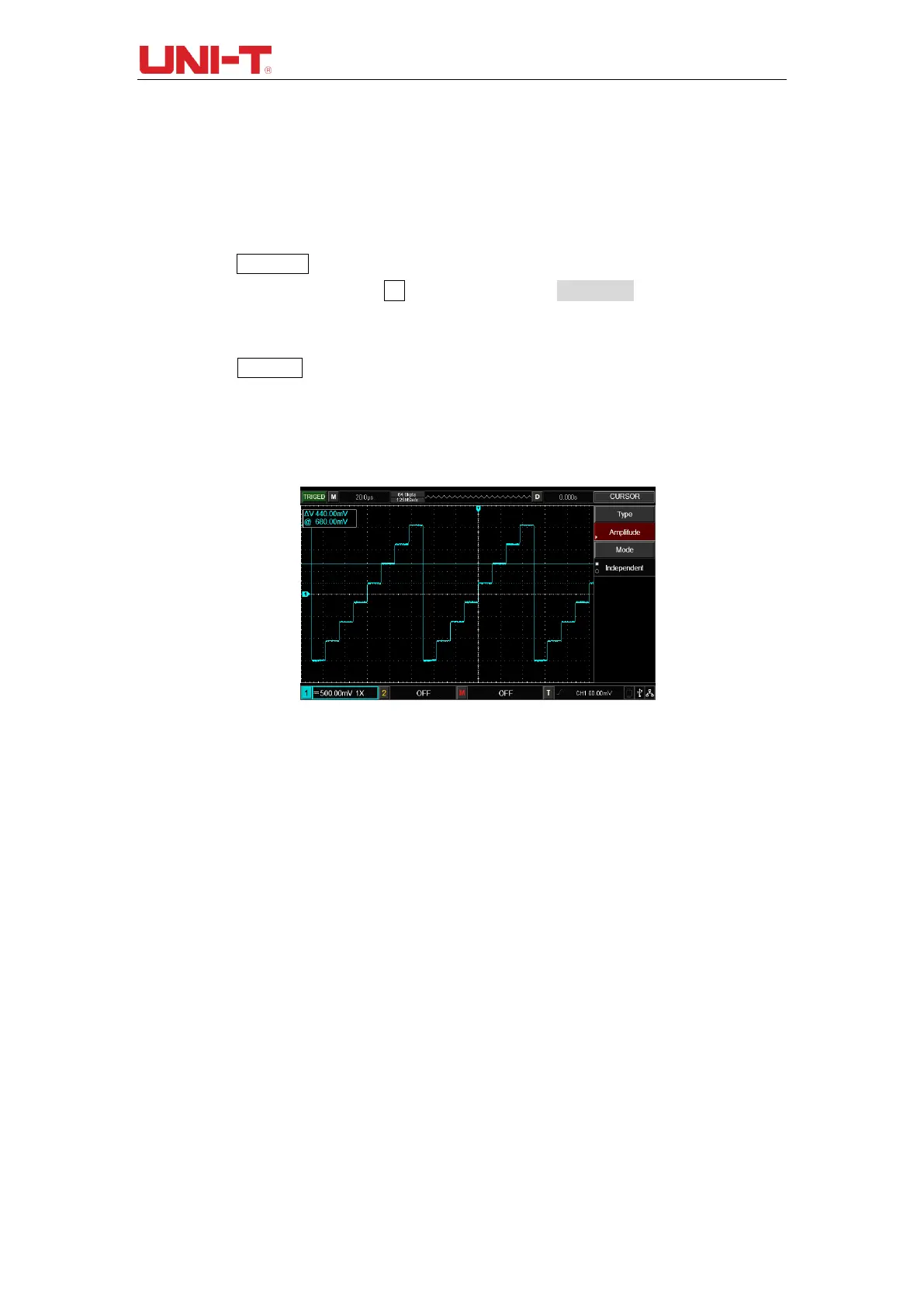

Figure 12-6 Measure the voltage difference of signals by cursors
Note: When using the cursors to measure time, follow step 2 only and set the cursor type
to time.
