UNI-T UTG1000 Series

42 UTG1000A Series

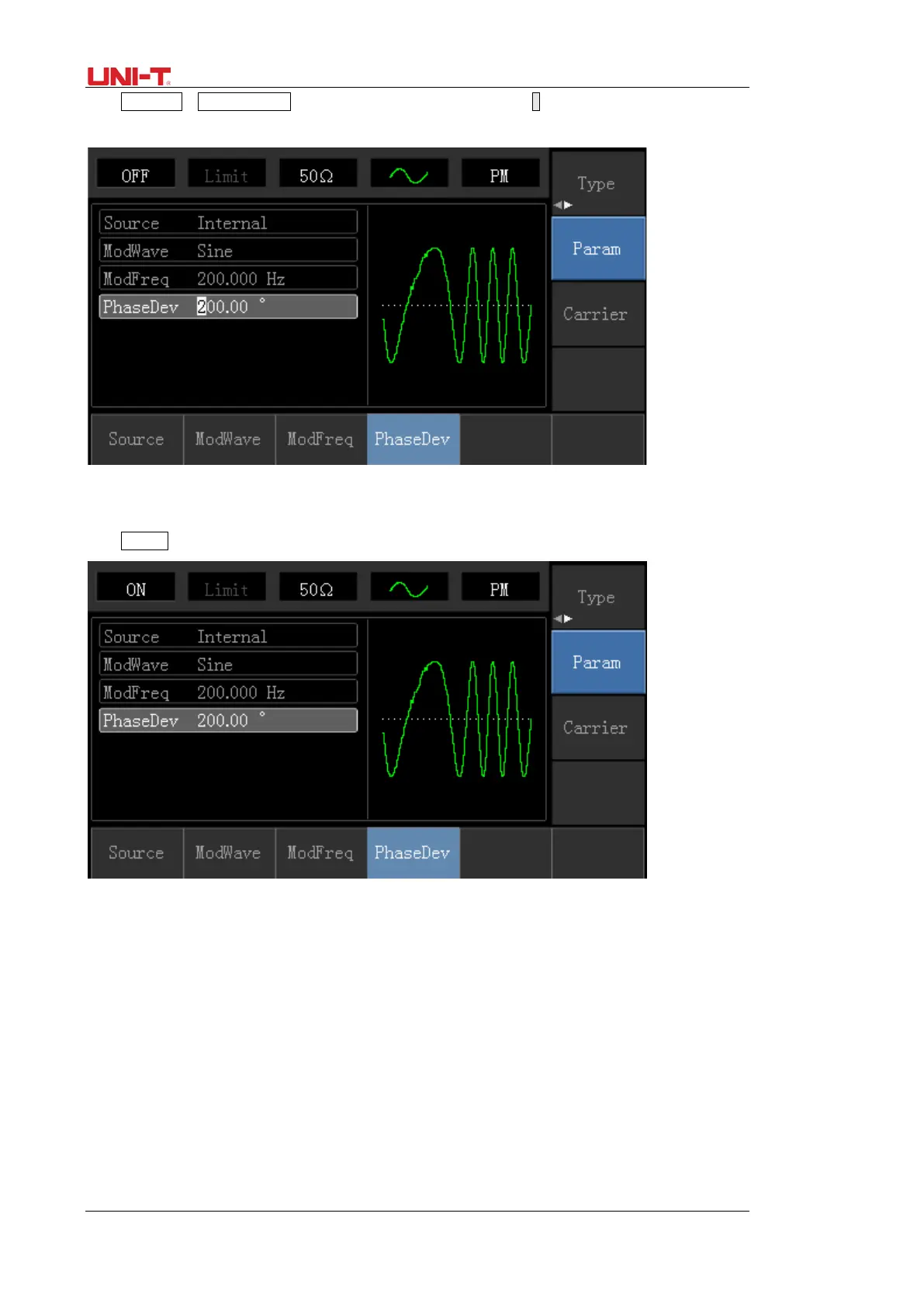

Press Parameter →Phase Deviationsoftkey, then enter number 200 and press ºsoftkey with number keyboard for
setting phase deviation.
5) Enable Channel Output
Press Channel button to open channel output quickly.
The shape of PM modulation waveform checked through oscilloscope is shown as following:
