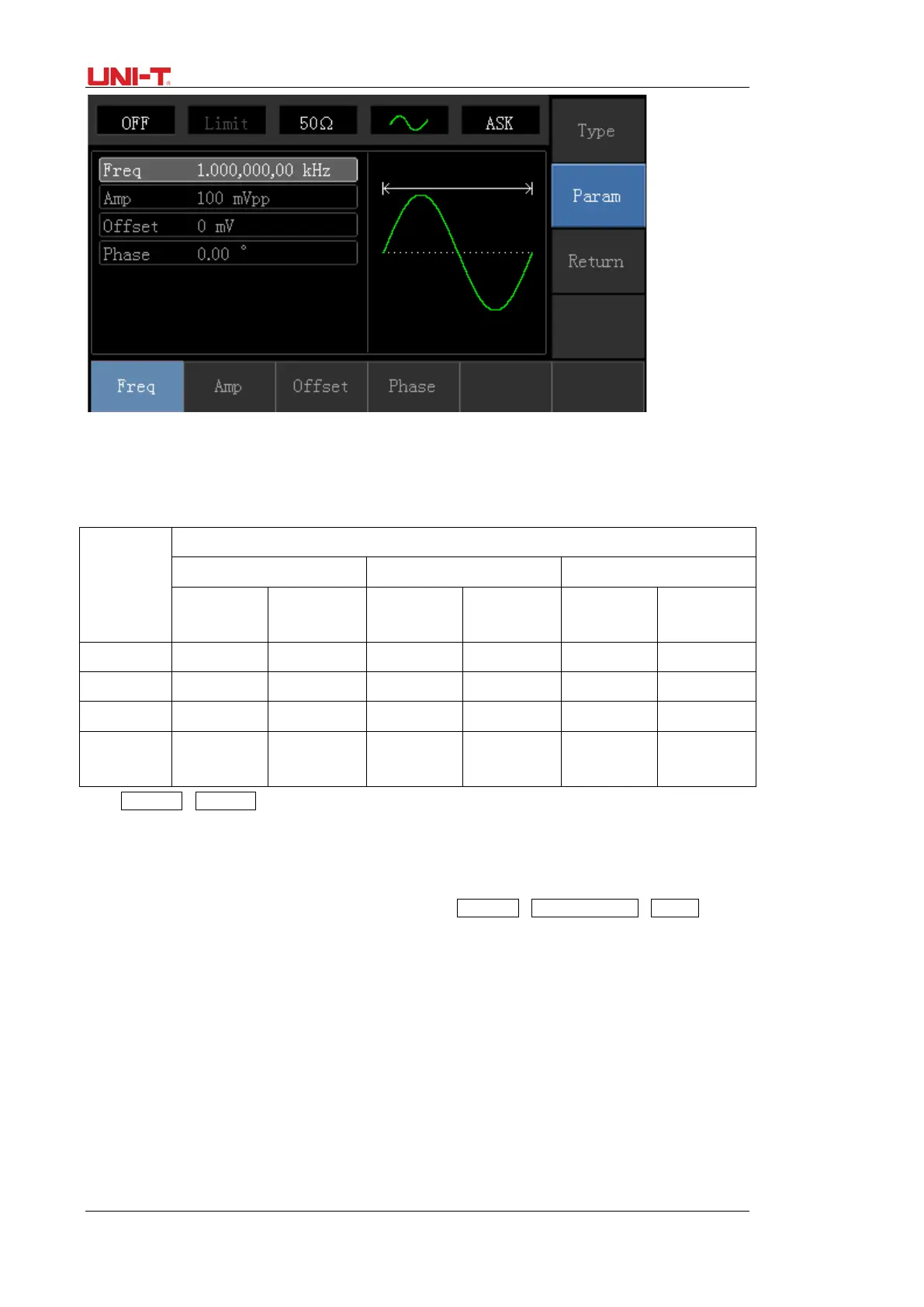

44 UTG1000A Series
Carrier Wave Frequency Setting
Settable carrier wave frequency range is different of different carrier waveform. Default frequency of all carrier
wave is 1kHz. The frequency setting range of each carrier wave can be seen in the following table:
Carrier Wave
Frequency
UTG1020A UTG1010A UTG1005A
Minimum
Value
Maximum
Value
Minimum
Value
Maximum
Value
Minimum
Value
Maximum
Value
Sine Wave 1μHz 10MHz 1μHz 10MHz 1μHz 5MHz
Square wave 1μHz 5MHz 1μHz 5MHz 1μHz 5MHz
Ramp Wave 1μHz 400kHz 1μHz 400kHz 1μHz 400KHz
Arbitrary
Wave
1μHz 3MHz 1μHz 2MHz 1μHz 1MHz
Press ParameterFrequencysoftkey, then enter required number value, and select unit.
Modulation Source Selection
The device can select internal modulation source or external modulation source. After enabling ASK function, the
default of modulation source is internal. If need to change, press ParameterModulationSourceExternal in turn.
