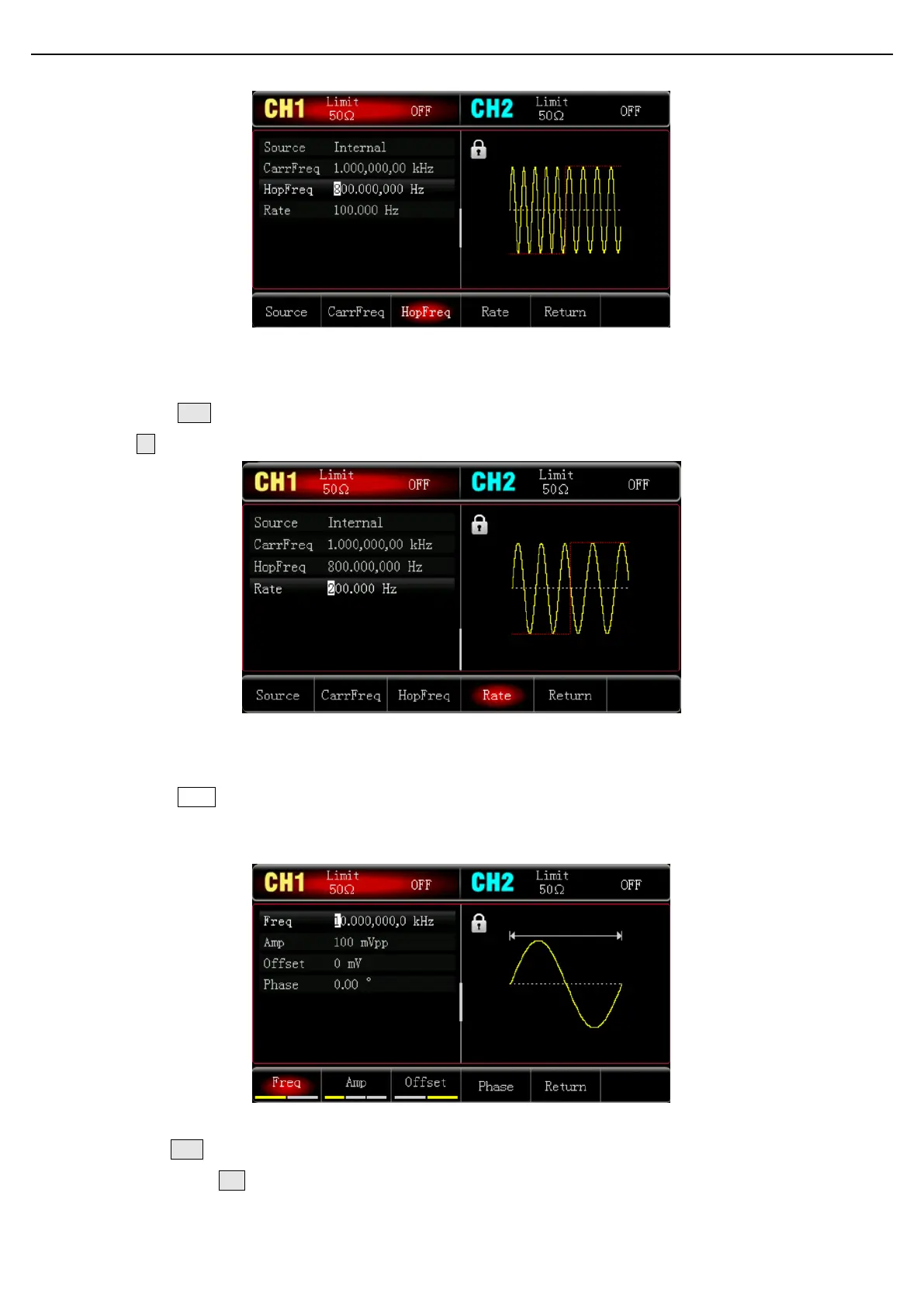

3) Set Modulation Rate
Press Rate soft key and use numerical keyboard to input 200 and then select the unit of the parameter to
Hz.
4) Set Carrier Wave Signal
Press Wave key to enter the carrier wave interface and select sine wave to be the carrier wave (the default
is sine wave).
Press Freq soft key to set the frequency, use numerical keyboard to input 2 and then select the unit of
parameter to kHz;
