Press Amp soft key to set the amplitude, use numerical keyboard to input 1 and then select the unit of
parameter to Vpp.
5) Enabling Channel Output
Press CH1 key, if the indicator light is illumined which means the channel output is enabled.

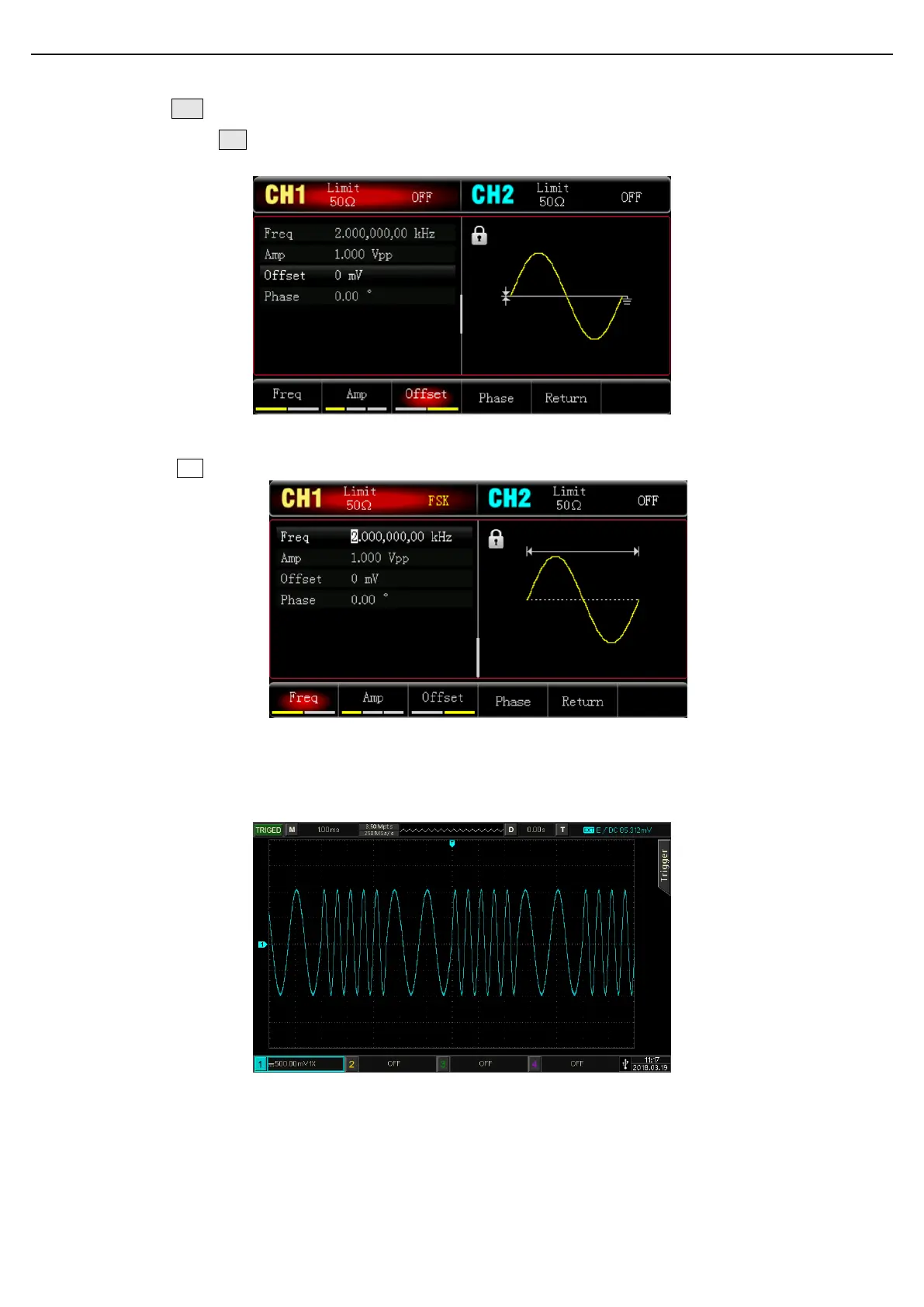

To view the shape of the FSK through an oscilloscope as shown in the following figure.
4.1.6 Phase Shift Keying (PSK)
In PSK mode, it can make the function/arbitrary waveform generator move between in two preset phases (the
phase of the carrier wave and modulation phase). According to the logical level of the modulation signal to
