User’s Manual UTG1000X Series
Instruments.uni-trend.com 44 / 74
output the carrier frequency or modulation phase. The modulation mode of the two channels are independent,
user can set the same or different modulation mode for the two channels.

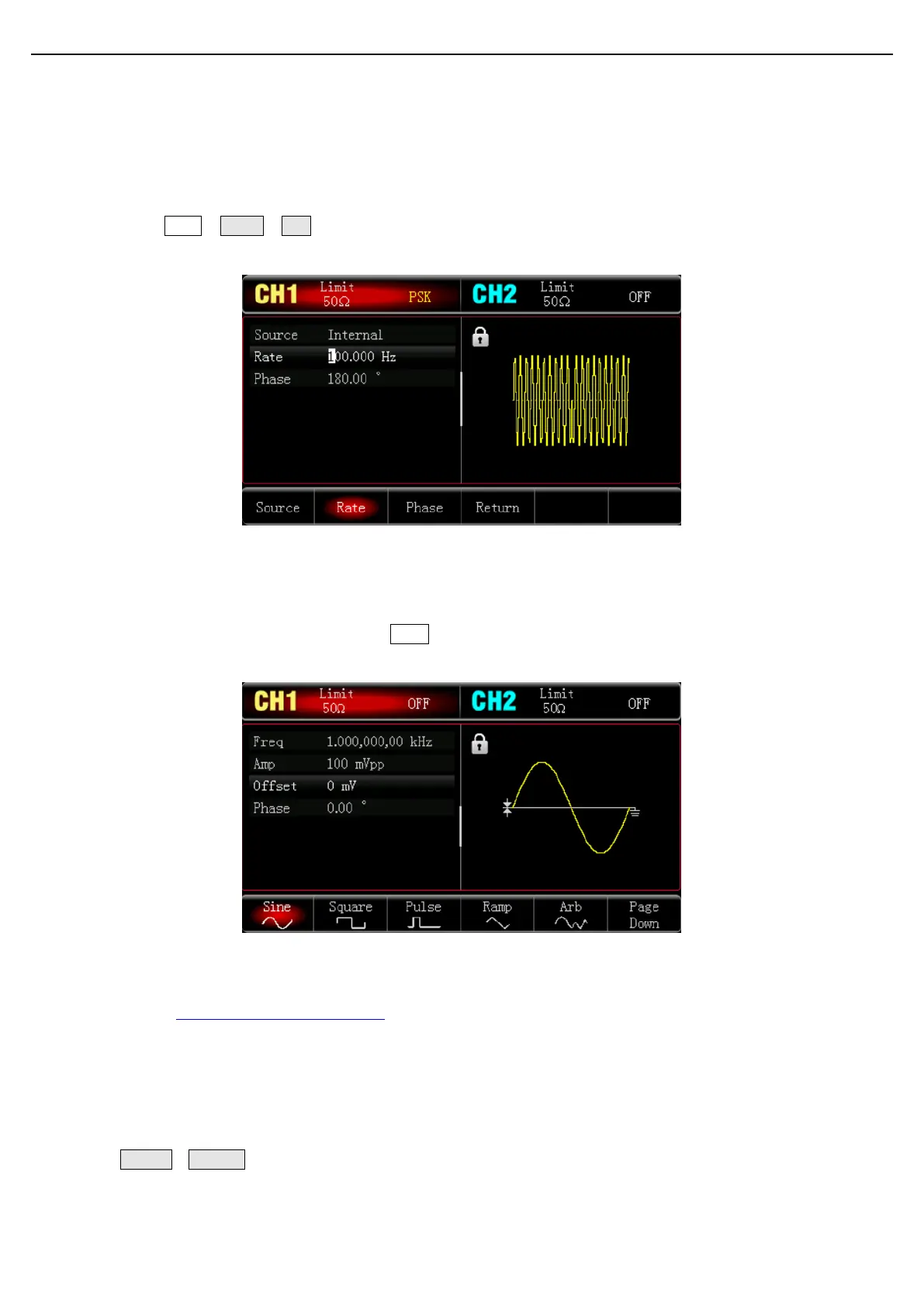

Select PSK
Press ModeShapePSK to turn on PSK mode, the instrument will output the modulated waveform
according to the currently setting.
Select Carrier Wave
The carrier wave can be sine wave, square wave, ramp wave or arbitrary wave (except DC). The default is sine
wave. After PSK mode is selected, press Wave key to enter the carrier wave interface.
Set Frequency for Carrier Wave
Refer to Set Frequency for Carrier Wave in AM mode.
Set Modulation Source
The modulation source of this instrument can be select internal or external. When PSK mode is enabled, the
default modulation source is internal; it can be change by multifunction rotary knob or press
ModSrcExternal soft key.
