User’s Manual UTG1000X Series
Instruments.uni-trend.com 48 / 74

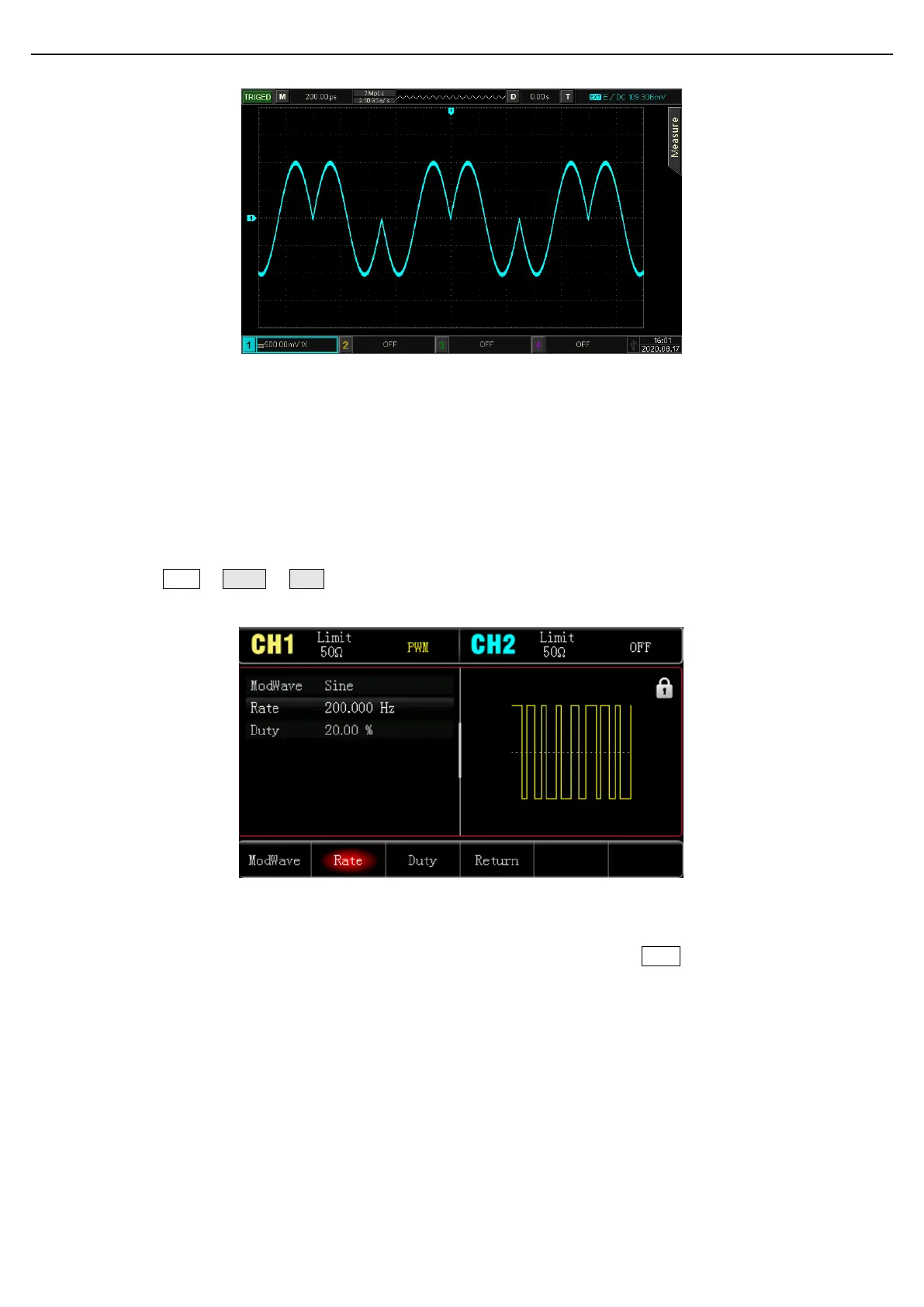

4.1.7 Pulse Width Modulation (PWM)
In PWM mode, modulated wave is consist of the carrier wave and the modulation wave. The pulse width
of the carrier wave will changed with the amplitude of the modulation wave. The modulation mode of the
two channels are independent, user can set the same or different modulation mode for the two channels.
Select PWM
Press Mode Shape PWM to turn on PWM mode, the instrument will output the modulated waveform
according to the currently setting.
Select Carrier Wave
The carrier wave of PWM can only be pulse wave. After PWM is selected, press Wave key to enter the carrier
wave interface.
