User’s Manual UTG1000X Series
Instruments.uni-trend.com 51 / 74

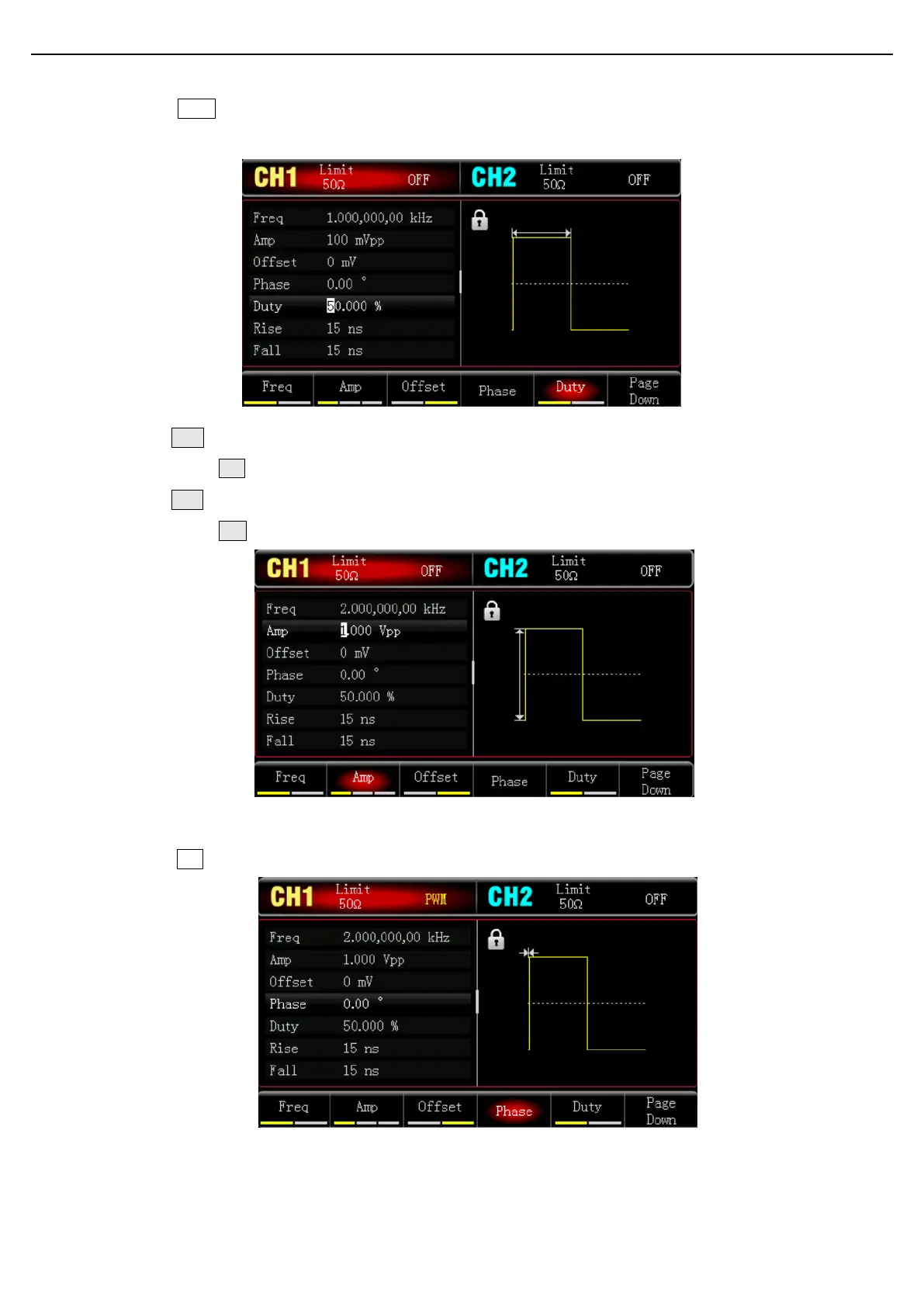

Press Wave key to enter the carrier wave interface and select pulse wave to be the carrier wave (the default
is pulse wave).
Press Freq soft key to set the frequency, use numerical keyboard to input 2 and then select the unit of
parameter to kHz;
Press Amp soft key to set the amplitude, use numerical keyboard to input 1 and then select the unit of
parameter to Vpp.
5) Enabling Channel Output
Press CH1 key, if the indicator light is illumined which means the channel output is enabled.
To view the shape of the PSK through an oscilloscope as shown in the following figure.
