User’s Manual UTG1000X Series
Instruments.uni-trend.com 62 / 74
2) Select Pulse String Wave
Base on the step 1, press WaveSine to select the sine wave to be the carrier wave. The default pulse
string wave is the sine wave, so don’t change this setting.
The amplitude setting can be set by multifunction rotary knob and arrow keys. (Remarks: If the setting
interface displays Freq, this means it can only change the frequency parameter, it can’t convert to
period. If it displays Period, then 2ms period is corresponding to 500 Hz and their reciprocal relationship
is T=1/f). Press Freq Freq (the second time press Freq soft key is used to the conversion of frequency

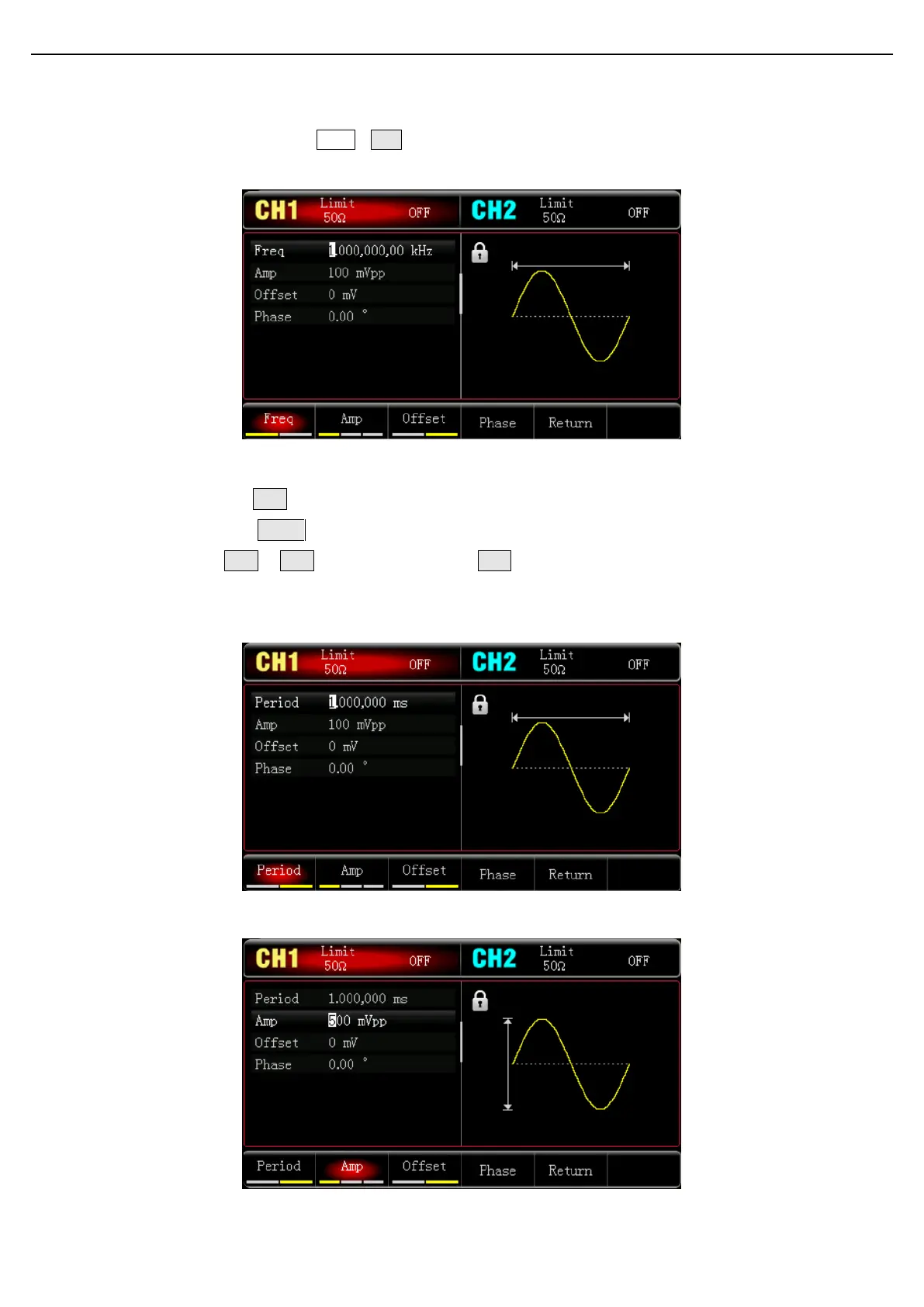

and period in parameter list), the interface as shown in the following figure.
Press the corresponding soft key to set a parameter, to input numerical value and then select the unit.
To Next Page
