3) Set Period and Wave Cycle of Pulse String

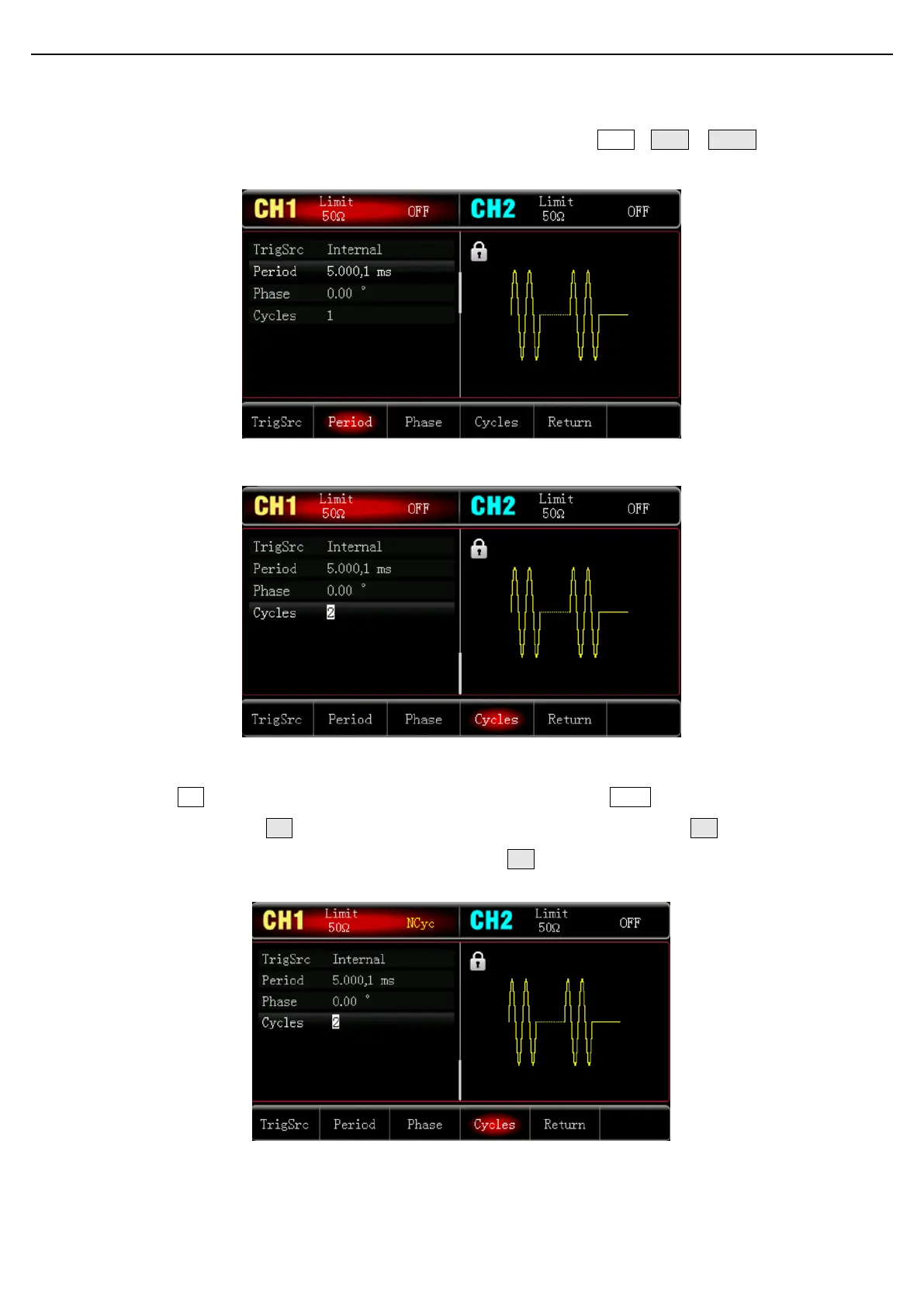

After pulse string wave and the relevant parameter is selected, press ModeBurst NCycle to return to
the interface as follows,
Press the corresponding soft key to set a parameter, to input numerical value and then select the unit.
4) Enabling Channel Output
Press CH1 key on the front panel to quickly turn on CH1 output, or press Utility key to pop out the label and
then press soft key CH1 to turn on channel output. When channel output is enabled, CH1 key is illuminated
and the gray OFF character turns to yellow “N Cycle” in CH1 label backlight that means the CH1 output is
turned on.
To view the shape of the pulse string through an oscilloscope as shown in the following figure.
