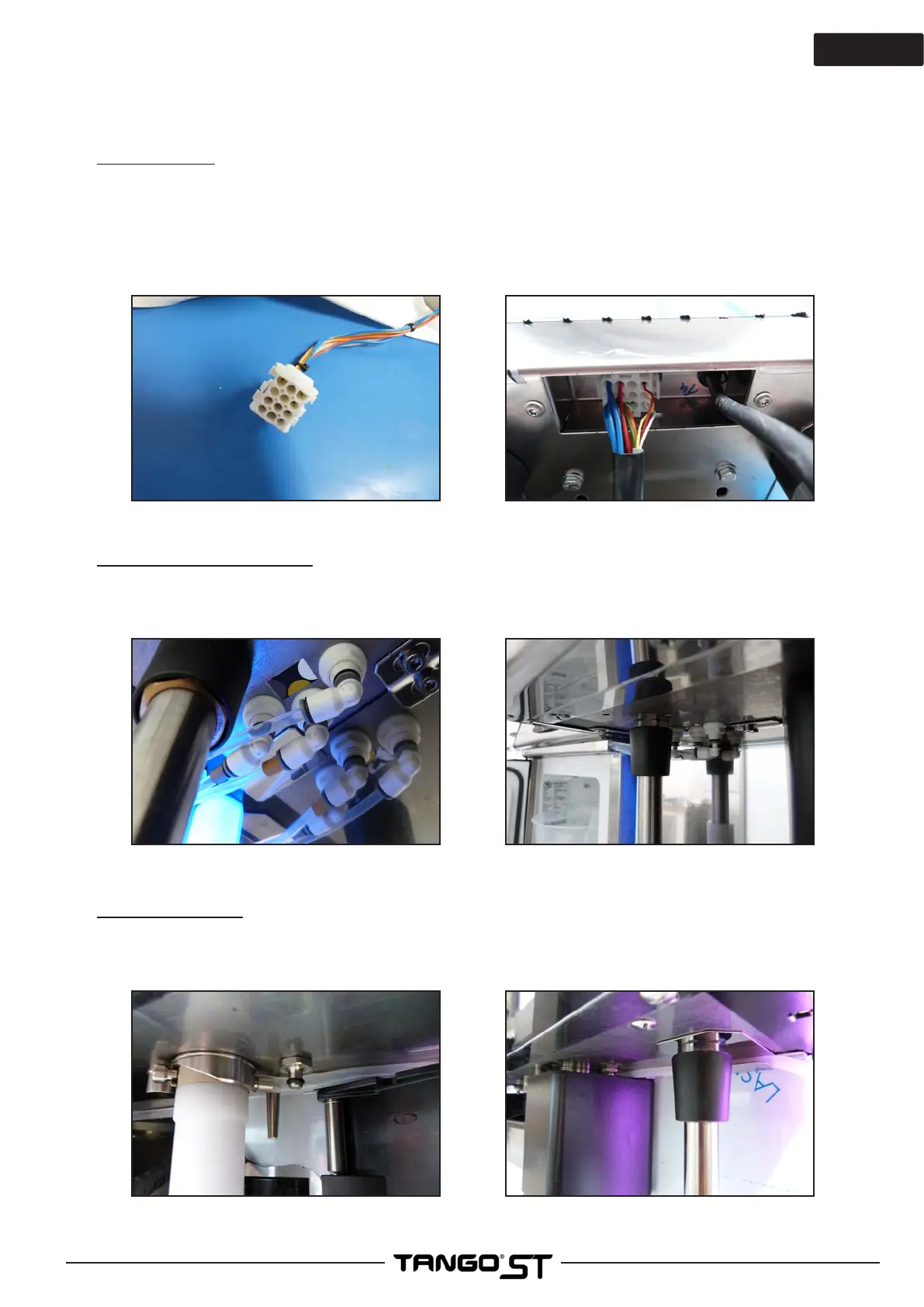

►Connecting the ST refrigerator module to the machine
♦ Electrical part:
The refrigerator is composed of a supply cable for the mains and computer connection to the machine.
- Place the refrigerator on the left of the machine
- The cable connector has a fool proong device, if this makes connection difcult, the connector is the wrong
way round.
- The connector on the refrigerator is located under the refrigerator at the back.
♦ Hydraulic part - milk pump
With a pump milk, there are 3 quick couplers differentiated with 3 different colors (yellow, grey, white). Refer
to the decal on the chassis for the positioning.
♦ LC hydraulic part
With a cappuccino LC the refrigerator is delivered with the pipe already tted in the refrigerator, it remains
simply to feed it through the plate prepared for the purpose and x it to the cappuccino outlet end.
