45
Installation instructions
ENGLISH

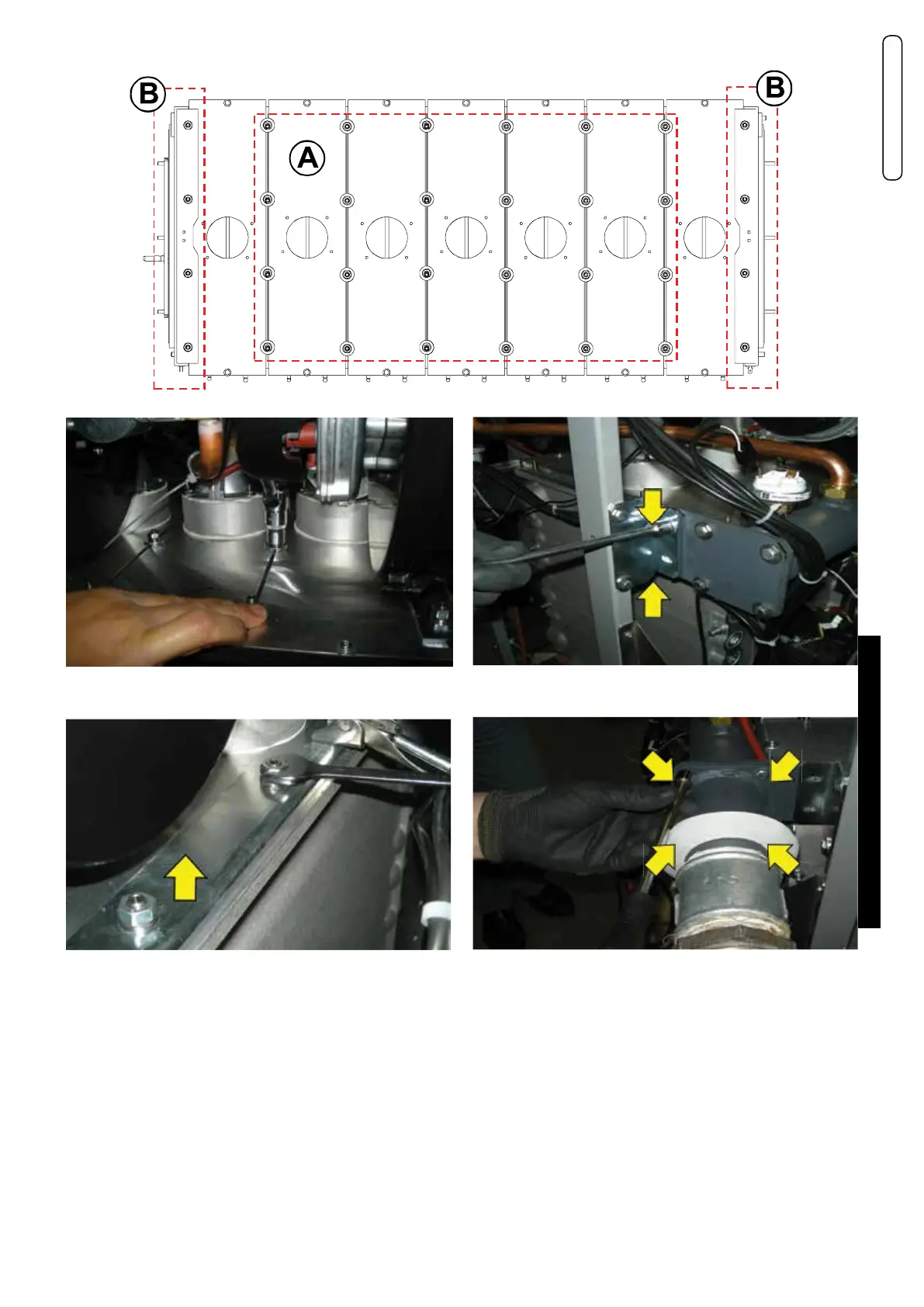

- Remove the screws “B” (with 13 mm socket wrench / 13
mm hex spanner) and remove the fastening plates
Element screws
- Remove screws “A” for each element
(with 13 mm socket wrench)
- Remove the gas pipe fastening screws (right and
left sides)
- Remove the four screws with a 10 mm socket wrench, then
the gas  ange
