46

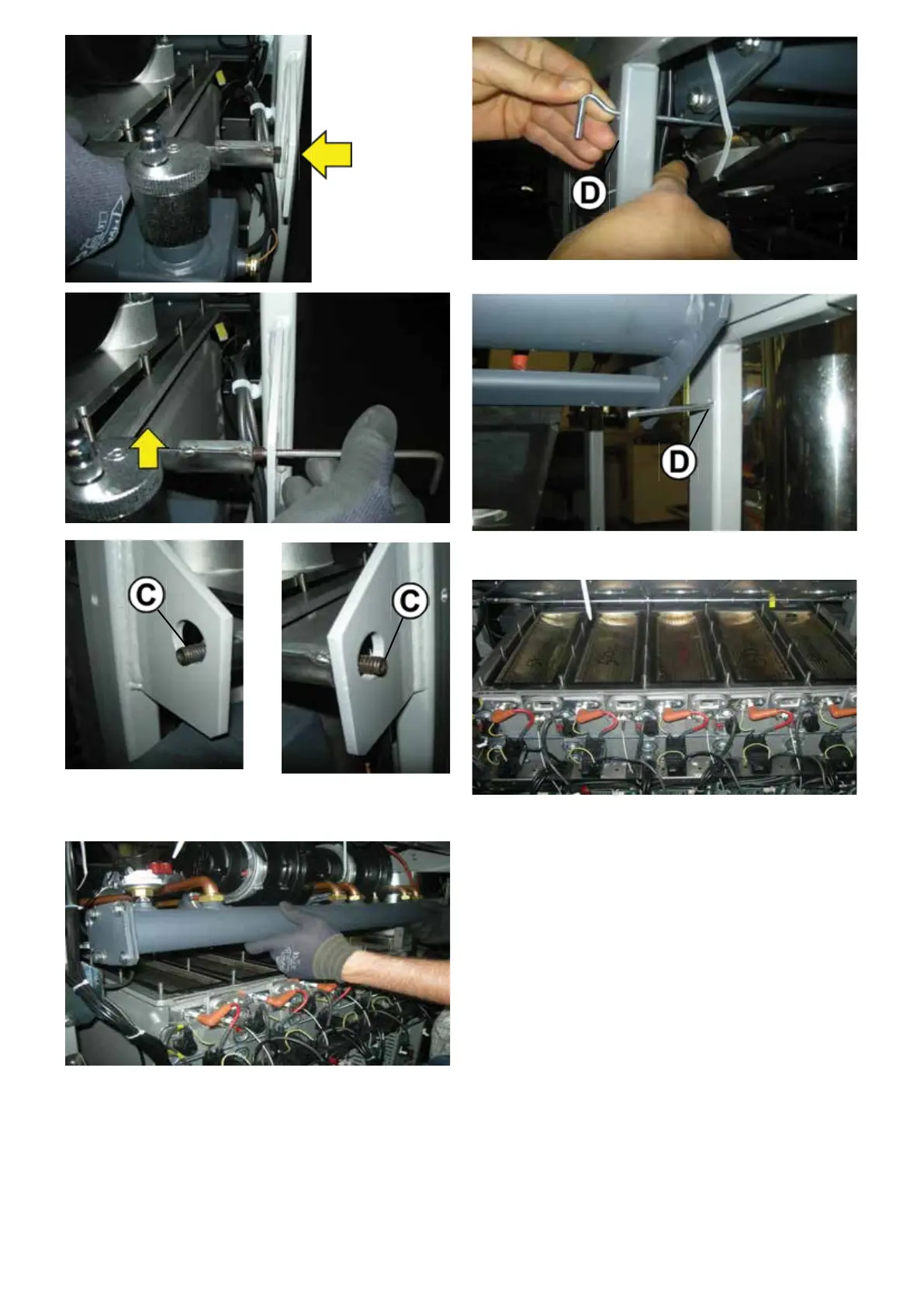

- Slightly lift the rear burner block and remove the 2 pins
using a 4 mm hex spanner, until you reach the holes “C”
- Lift the burner block (front part)
- Insert the dowels in the holes ”D” to support the burner
block.
