15
Technical Features
ENGLISH
EXAMPLE:
For a ∆T 20K, of a MODULEX 900, the maximum
water ow rate required is 36,289 l/h.

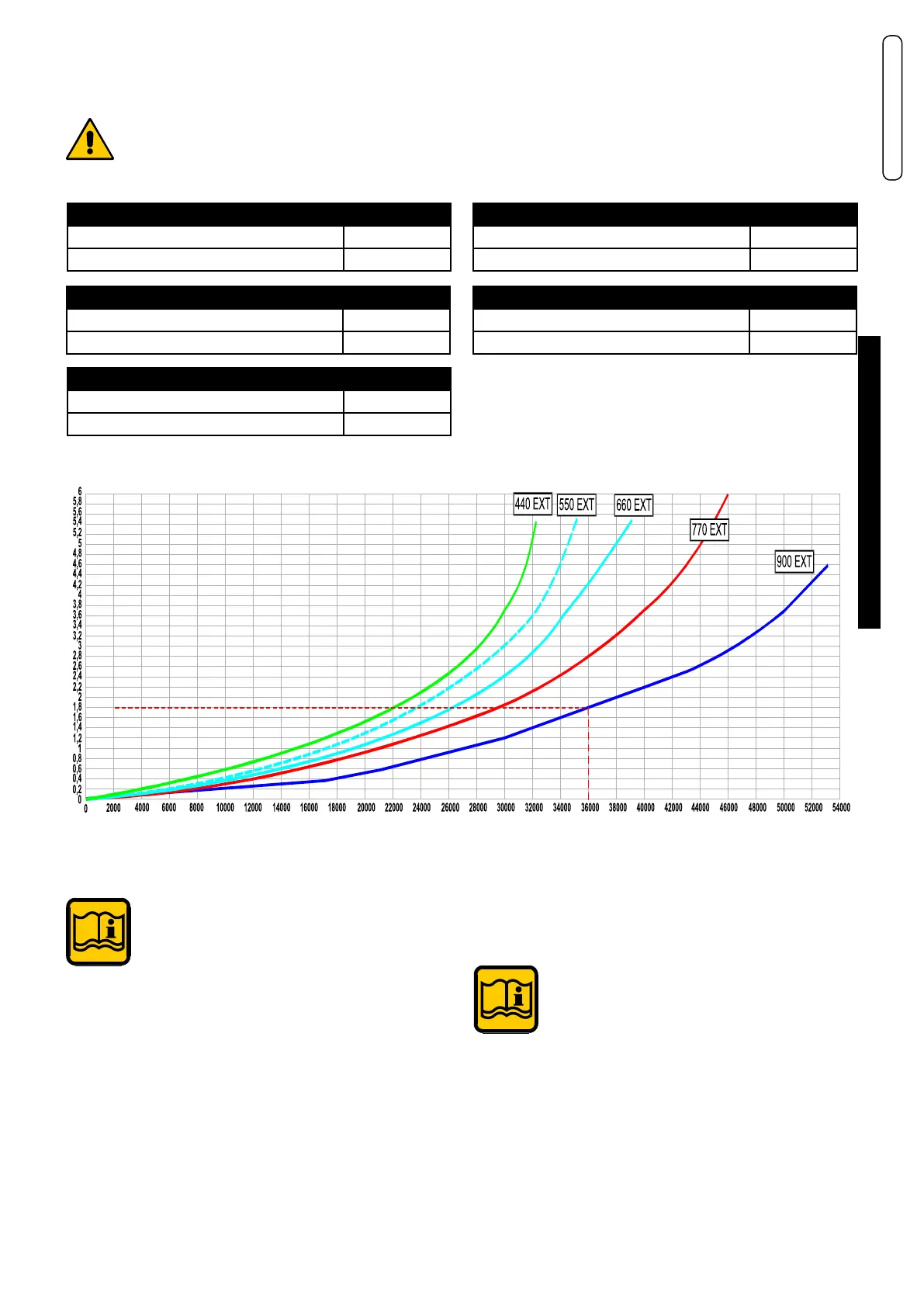

The graph of the boiler pressure drops shows that
the pump must ensure a head of at least 1.6 m/H
2
O
NOTE:
It is always advisable to use a hydraulic separator (*) between
the boiler circuit and the system.
FLOW RATE l/h
Pressure drop (mH
2
O)
2.4.2 - DETERMINATION OF THE PRIMARY CIRCUIT PUMP OR BOILER PUMP
The pumps must be determined by the installer
or designer according to the boiler and sys-
tem data.
The boiler pump must have head that is able to ensure the
pump's ow rates according to the circuit's ∆t.
The pump is not an integral part of the boiler.
It is recommended to select a pump with a ow rate
and head of approximately 2/3 of its characteristic
curve.
MODULEX EXT 440
Maximum ow rate in l/h (∆t=15K) 24,326
Requested rated ow rate in l/h (∆t=20K) 18,243
MODULEX EXT 900
Maximum ow rate in l/h (∆t=15K) 48,647
Requested rated ow rate in l/h (∆t=20K) 36,487
MODULEX EXT 550
Maximum ow rate in l/h (∆t=15K) 30,404
Requested rated ow rate in l/h (∆t=20K) 22,804
MODULEX EXT 660
Maximum ow rate in l/h (∆t=15K) 36,487
Requested rated ow rate in l/h (∆t=20K) 27,365
MODULEX EXT 770
Maximum ow rate in l/h (∆t=15K) 42,570
Requested rated ow rate in l/h (∆t=20K) 31,926
(*) For the features, refer to the SPINOX
installation manual, available on the website.
