Installation instructions
ENGLISH
OBLIGATION!
wear protective gloves

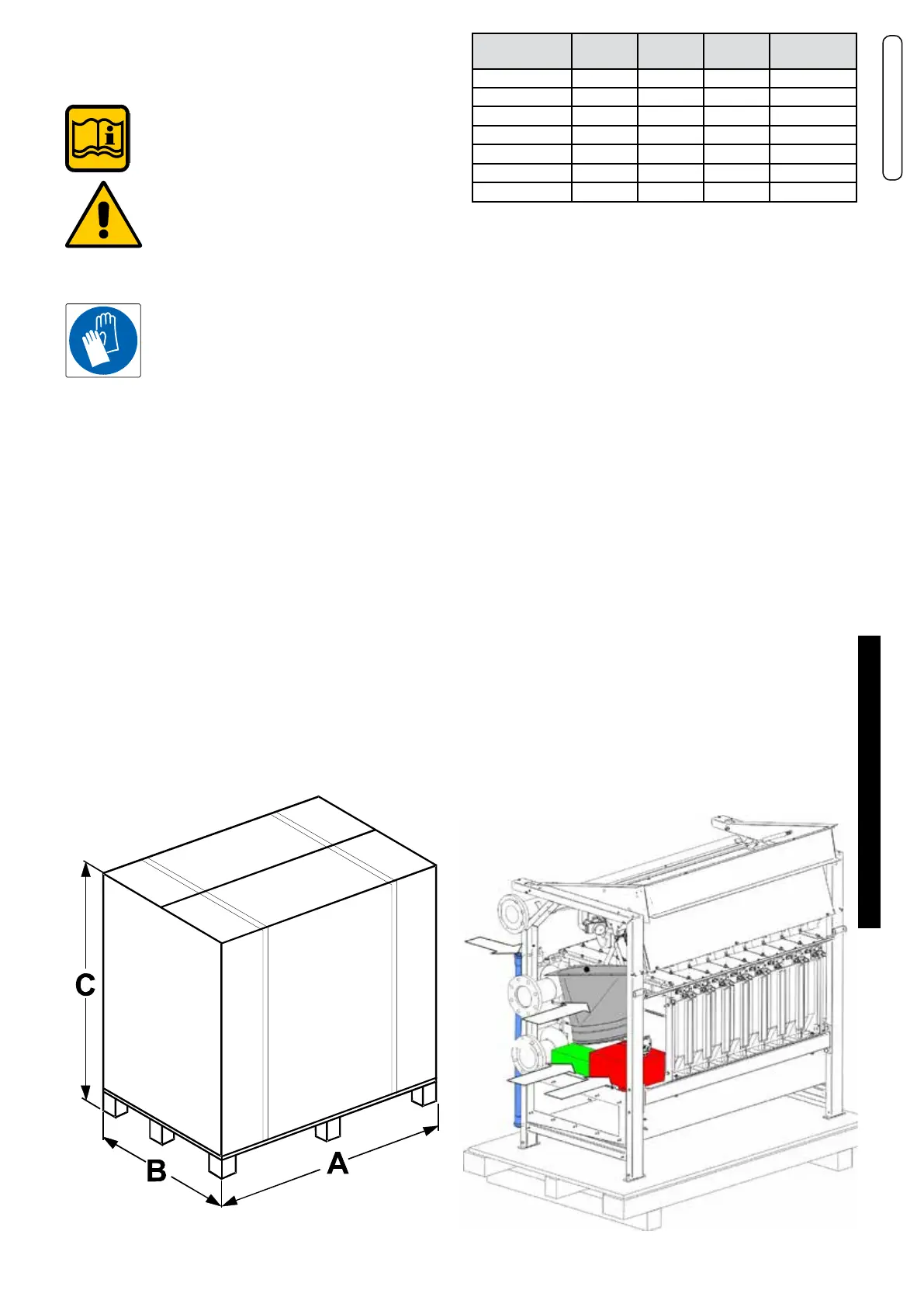

Modulex EXT A B C
Gross
Weight
mm mm mm kg
348 1263 1120 1515 585
440 1263 1120 1515 585
550 1531 1120 1515 643
660 1531 1120 1515 707
770 1799 1120 1515 806
900 1799 1120 1515 858
3.4 - PACKAGING
The boiler MODULEX is supplied assembled in a sturdy card-
board box.
After removing the two straps, remove the card-
board from the top and ensure the integrity of the
contents.
Keep the packaging material (cardboard box,
straps, plastic bags, etc.) out of the reach of chil-
dren as they are potential sources of danger.
Unical will not be held liable for damage to per-
sons, animals or objects due to failure to comply
with the above instruction.
- Transport the boiler using suitable transportation means.
- Protect all parts against impacts if they must be transported.
- Follow the transport instructions on the packaging.
• The boilers must always be lifted and carried with a carrying
trolley or equipment suitable for transport.
To remove the boiler from the pallet, it is necessary to have a
rocker crane, to avoid damage during gripping.
- Remove the casings and harness with the straps “A”, taking
care to pass the straps on the load-bearing crosspieces of
the frame
- Tie the straps to the rocker arm “B”, operating with caution.
the box contains:
on the left side of the boiler:
- The ue gas exhaust manifold
- A cardboard box containing:
Gasket between pan and terminal.
Collar gasket (Ø 250) Ø 300.
Two elbows + a Tee + a plastic
condensate drain plug
The screws necessary for xing the ue gas terminal
- The sensors: external, heater.
- The ue inspection cap
- Sheet and cable glands for power supply output
- A cardboard box containing:
The anges
Inside the rear side casing:
- The condensate drain trap pipes (1 m)
Above the boiler cover:
A plastic bag containing:
- Instruction manual for the installation and maintenance
technician
- Uy control unit operating manual
- BCM 2.0 manual
- Hydraulic test certicate
- Certicate of conformity
- Warranty certicate (IT only)
- Warranty extension 10 A (IT only)
- INAIL certicate (IT only)
- Spare parts coupon (IT only)
- Dowels to lock the fan set in raised position (use only
for models 100 ÷ 350 kW)
