Unical MODULEX EXT Series User Manual

7
General information
ENGLISH

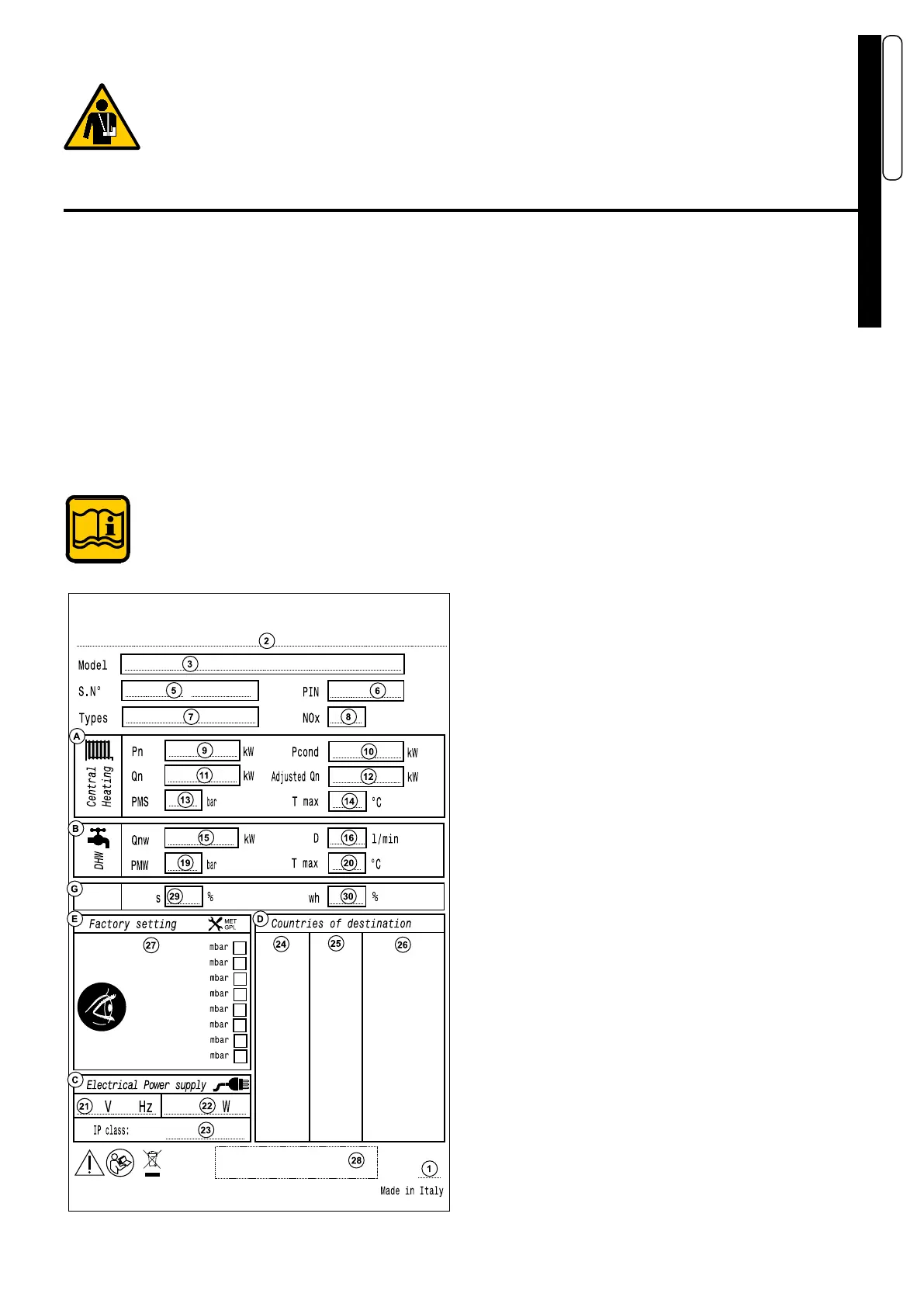

1.6 - TECHNICAL DATA PLATE
KEY:
1 = CE monitoring body
2 = Type of boiler
3 = Boiler model
5 = (S.N°) Serial Number
6 = P.I.N. Product Identication Number
7 = Types of approved ue gas exhaust congurations
8 = (NOx) NOx Class
A = Heating circuit characteristics
9 = (Pn) Effective nominal output
10 = (Pcond) Effective output in condensation
11 = (Qn) Maximum thermal ow rate
12 = (Adjusted Qn) Adjusted for rated heat output
13 = (PMS) Max. heating operating pressure
14 = (T max) Max. heating temperature
B = Domestic hot water circuit characteristics
15 = (Qnw) Rated heat output in domestic hot water function
(if different than Qn)
16 = (D) Specific D.H.W. flow rate according to EN625-
EN13203-1
19 = (PMW) Max. domestic hot water operating pressure
20 = (T max) Max. domestic hot water temperature
C = Electrical characteristics
21 = Electrical power supply
22 = Consumption
23 = Protection rating
D = Countries of destination
24 = Direct and indirect countries of destination
25 = Gas category
26 = Supply pressure
E = Factory settings
27 = Adjusted for gas type X
28 = Space for national brands
G = ErP
29 = Seasonal energy efciency to heat the room
30 = Seasonal water heating energy efciency.
The CE Marking
certies the appliance compliance with the essential safety re-
quirements dened in the applicable European Directives and
Regulations and that its operation meets the technical standards
of reference.
The CE marking is a󰀩xed on each individual appliance by a
special label.
The EC declaration of conformity, issued by the Manufacturer
pursuant to international regulations, can be found in the docu-
mentation accompanying the product.
The technical data plate can be found under
the casing, on the front xing crosspiece. ITS
DUPLICATE is placed next to the temperature
control unit.
/
DANGER! Do not use the appliance to support any object.
Specically, do not place any liquid containers (Bottles, Glasses, Containers or
Detergents) on top of the boiler.
If the appliance is installed inside a box, do not insert or place other objects inside it.
