7
【CLEAR】
Clear number or character when editing in Quantitative Mode;
【LOAD】 Load saved data or saved curve ;
【PRINT】 Print data;
【SAVE】 Save data or curve;
【100%T】 Set 0Abs and 100%T;
【EXIT】 Return to previous screen;
【ENTER】 Confirm the inputted data or selected item; Go to next setup or screen;
【∧】,【∨】 Set Wavelength; Enter Standard solution value or Enter Known Factor
value; Browse the items in the menu
Operation Instruction:
Prepare the spectrophotometer

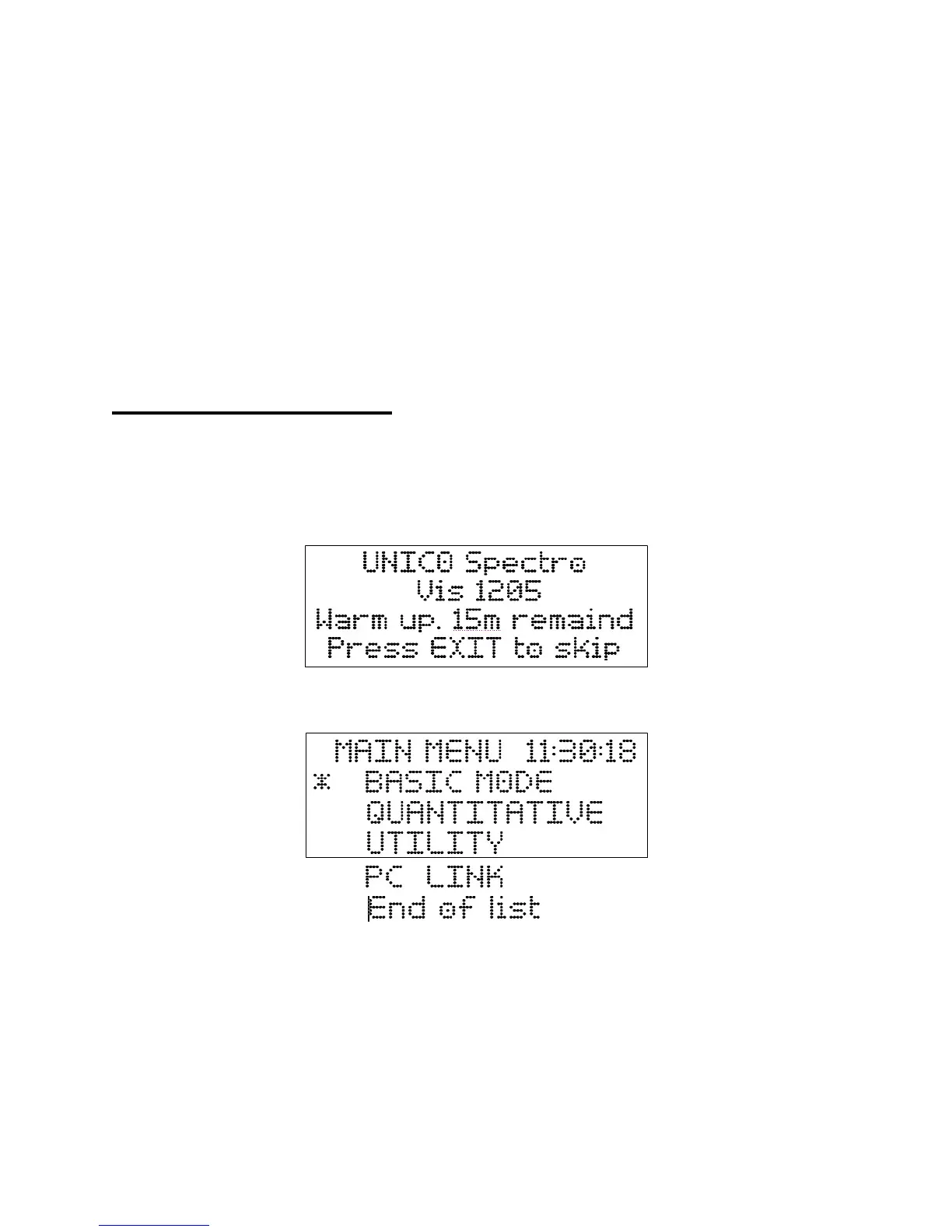

Turn on the spectrophotometer by pressing the Power Switch (IO). Press EXIT to skip 15
minutes warm up.
After 15 minutes warm up the main menu displays.
Note:
a) If the saved wavelength has been out of order,`WL calibrating`will be
implemented and then go into Main Menu.
b) It is strongly recommended that taking dark current following the steps below
after warm-up:
1. Select UTILITY in main menu and then select Dark Current
To Next Page
