Uniden UM725 Radio Owner’s Manual

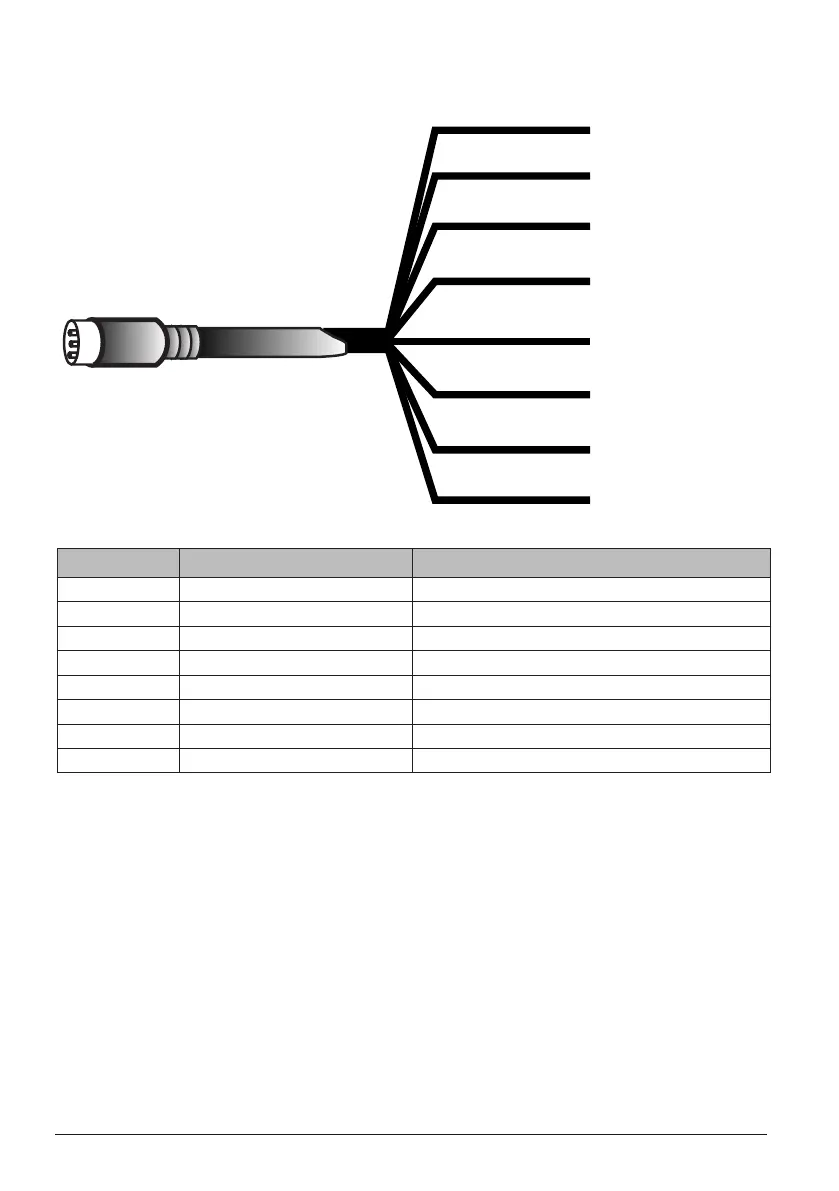

ACCESSORY CABLE
Wire Color Description Connects To…
Yellow NMEA IN (+) NMEA Data OUT (+) from GPS receiver
Green NMEA IN (-) NMEA Data OUT (-) from GPS receiver
White NMEA OUT (+) NMEA Data IN (+) on Chart plotter
Brown NMEA OUT (-) NMEA Data IN (-) on Chart plotter
Red External Speaker (+) External Speaker (+)
Bare Ground /Ext. Speaker (-) External Speaker (-)
Black NC
Orange NC
YELLOW
GREEN
WHITE
BROWN
RED
BARE
BLACK
ORANGE
