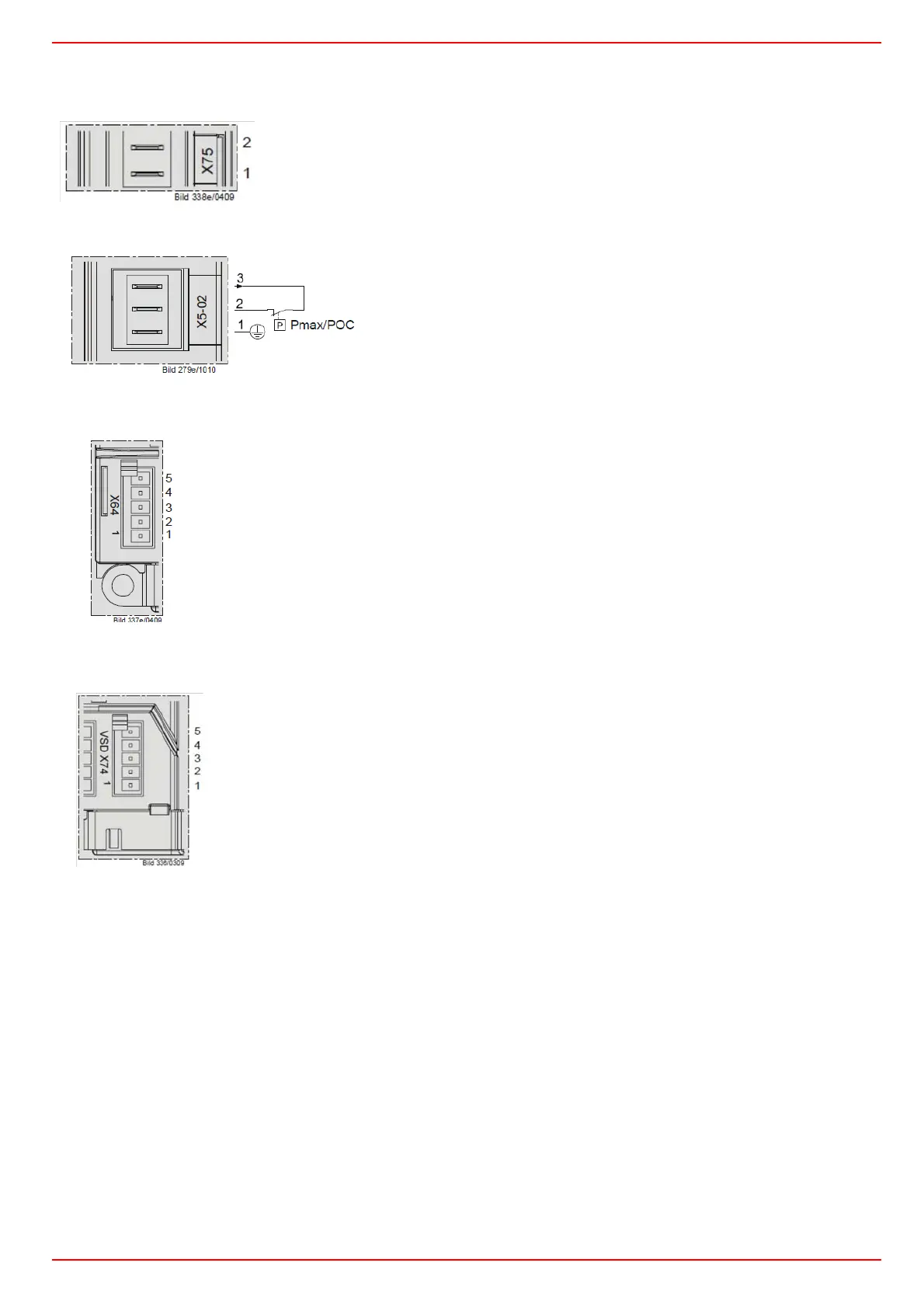

Wiring variants for LMV37

5 -Power supply speed sensor

4 -Speed sensor input

3 - PWM (Pulse Width Modulation) speed output

2 - GND (signal reference)

1 -Controller input (4÷20mA)

5 -Supply

ConnectorX75

ConnectorX64

ConnectorX74

2 - Fuel meter input

1 - Supply fuel meter

ConnectorX5-02

Connections Pmax

4 -Feedback signal

3 - PWM (Pulse Width Modulation) speed output

2 - GND (signal reference)

1 -External supply 24V DC
