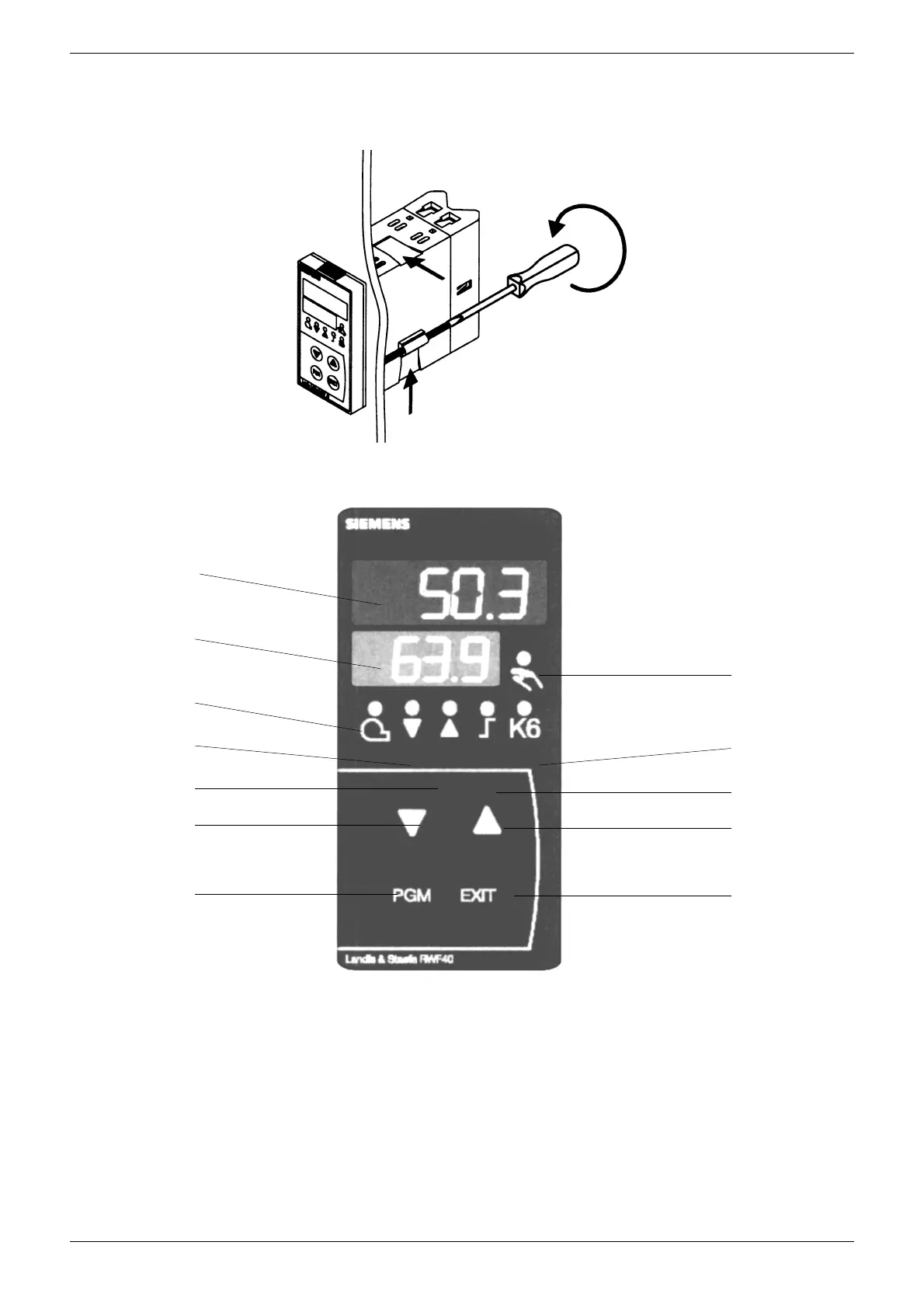

INSTRUMENT MOUNTING
Mount the instrument using the relevant mounts as illustrated in the figure.
To wire the instrument and sensors, follow the instructions given on the burner's wiring diagrams.
INSTRUMENT FRONTAL PANEL
Current value or
value of parameter
(red)
Setpoint or name of
parameter (green)
Decrease value
(down arrow)
Programming key
Burner start
enabled
Burner signal
increases
Burner signal
decreases
Manual
operation
Auxiliary output
Double stage
operation
Increase value (up
arrow)
Escape settings
key
