14
Duct pressure switches and sensors

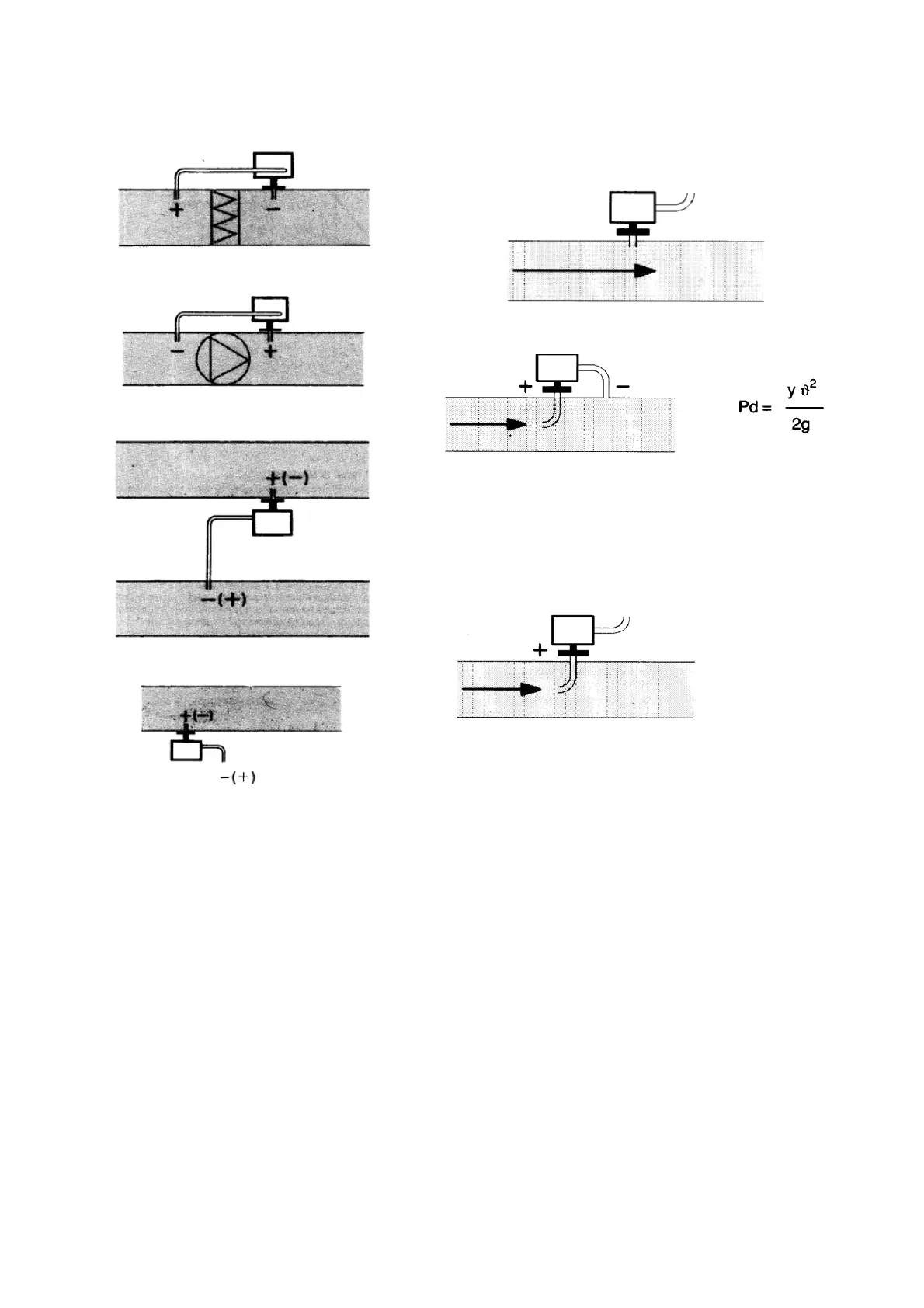

Installing differential pressure probes for air
A - Control a filter (clogging)
B - Control a fan (upstream/downstream)
C - Measurement of difference in pressure between two ducts
D - Measurement of difference in pressure between two rooms or
of inside of duct and outside
Basic principles
Measuring static pressure(i.e. pressure exerted
by air on pipe walls)
Measuring dinamic pressure
Key
y Kg/m
3
, specific weight of air
m/s, air speed
g 9.81 m/s
2
gravity acceleration
Pd mm C.A., dynamic pressure
Measuring total pressure
