Chapter 2 Installation and Wiring
7
2.2.1 Installation of Fixed LED Display-Front Installation(Standard)
1) Check whether the bottom beam is level. Make sure that its levelness is within
±1mm.
2) Install the cabinets sequentially from bottom to top and from middle to both sides.
In addition, fix the connecting plates and cabinets with installation screws to the
square tubes.
3) Keep proper joints and flatness between the cabinets during cabinet installation.
4) After the installation of the cabinet is completed,Connect the power cable and the
signal cable between the cabinets;
5) Install the module on the corresponding cabinets.During the module installation
keep flatness between the modules during modules installation;
6) The installation of the screen is completed.

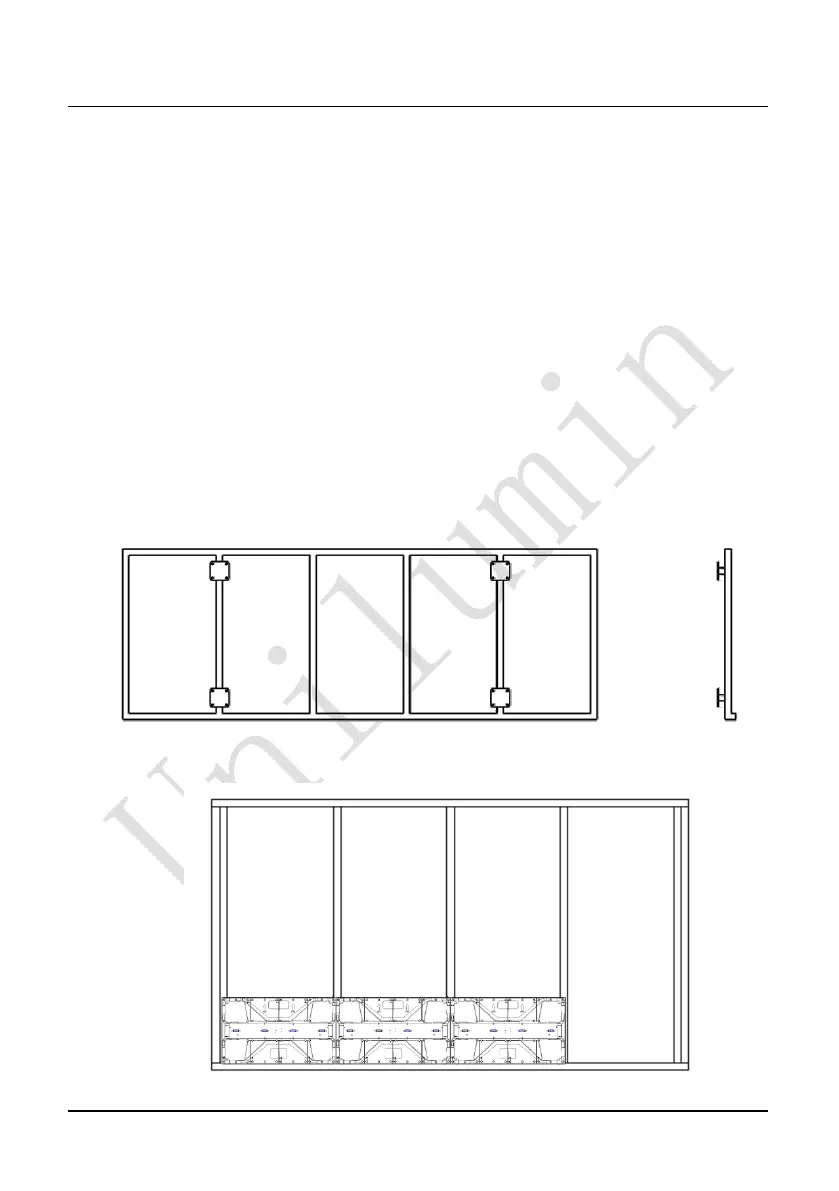

Fig 2-2 Profile Installation
