Chapter 2 Installation and Wiring
9

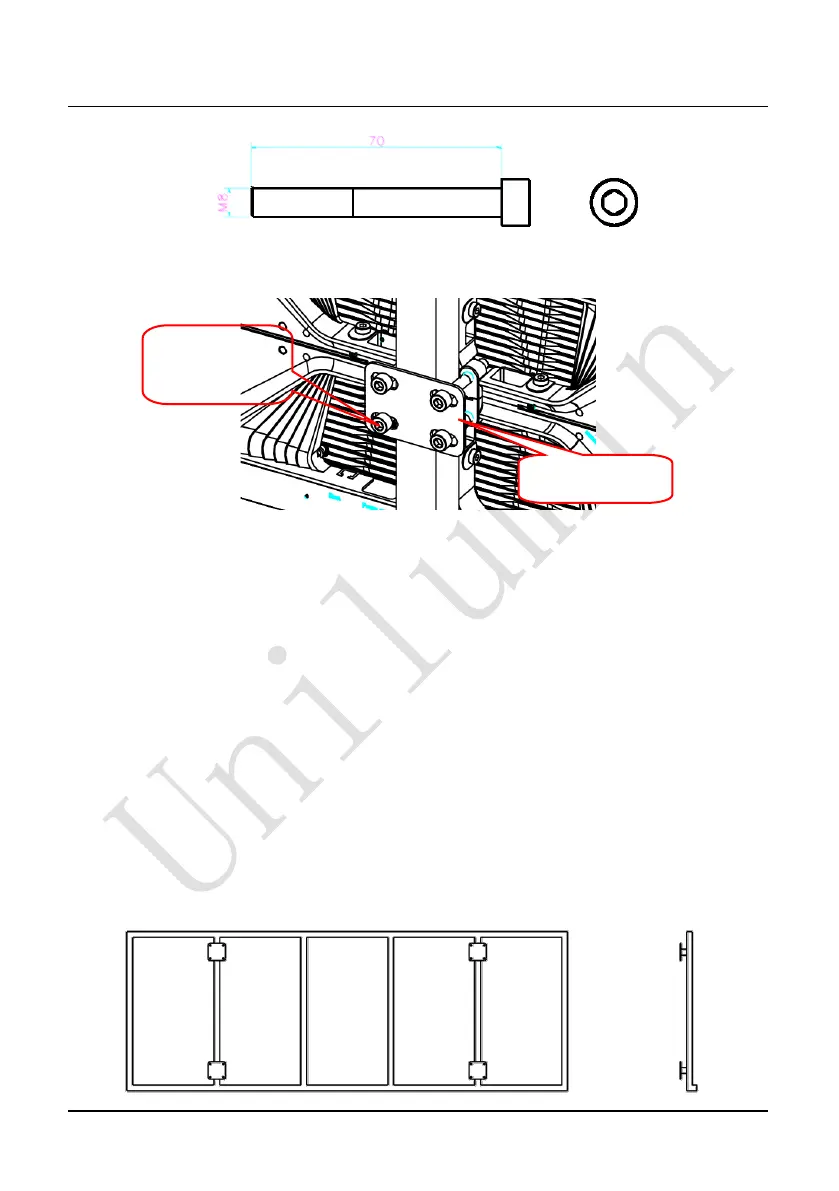

Fig 2-7 M8×70 socket head cap screws（front）
Fig 2-8 Back view of front maintenance Installation Details
2.2.2 Installation of Fixed LED Display-Rear Installation(Optional)
1) Check whether the bottom beam is level. Make sure that its levelness is within
±1mm.
2) Install the cabinets sequentially from bottom to top and from middle to both sides.
In addition, fix the connecting plates and cabinets with installation screws to the
square tubes.
3) Keep proper joints and flatness between the cabinets during cabinet installation.
4) After the installation of the cabinet is completed,Connect the power cable and the
signal cable between the cabinets;
5) The installation of the screen is completed.
