Chapter 2 Installation and Wiring

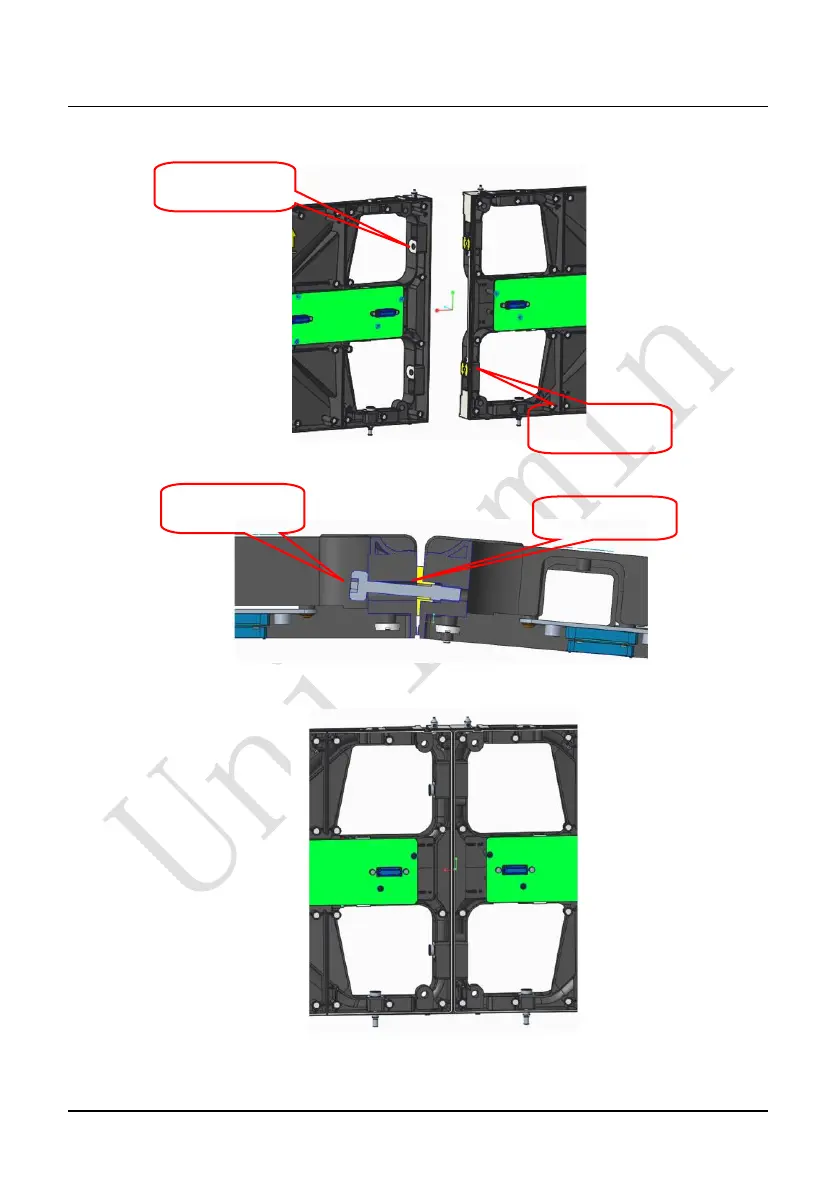

Fig 2-17 Installing angle block 2

Fig 2-18 Splicing of left and right cabinet

Fig 2-19 Internal drawing of left and right cabinet splicing

Fig 2-20 Splicing of left and right cabinets completed

Angle block

M6 plug bolts

Angle block
