To connect:
1. Release a connector from the terminal
using a screwdriver and pull it out.
2. Remove sucient insulation from the
cables and insert stripped cables into the
appropriate connector. Then tighten the
corresponding terminal screw using a at
screwdriver Figure 4-8.
3. After fastening all the cables, insert the
connector back into the terminal block.
Maximum cable size is 1.5mm
2
.
Maximum torque required for tightening
the screw is 0.25Nm.

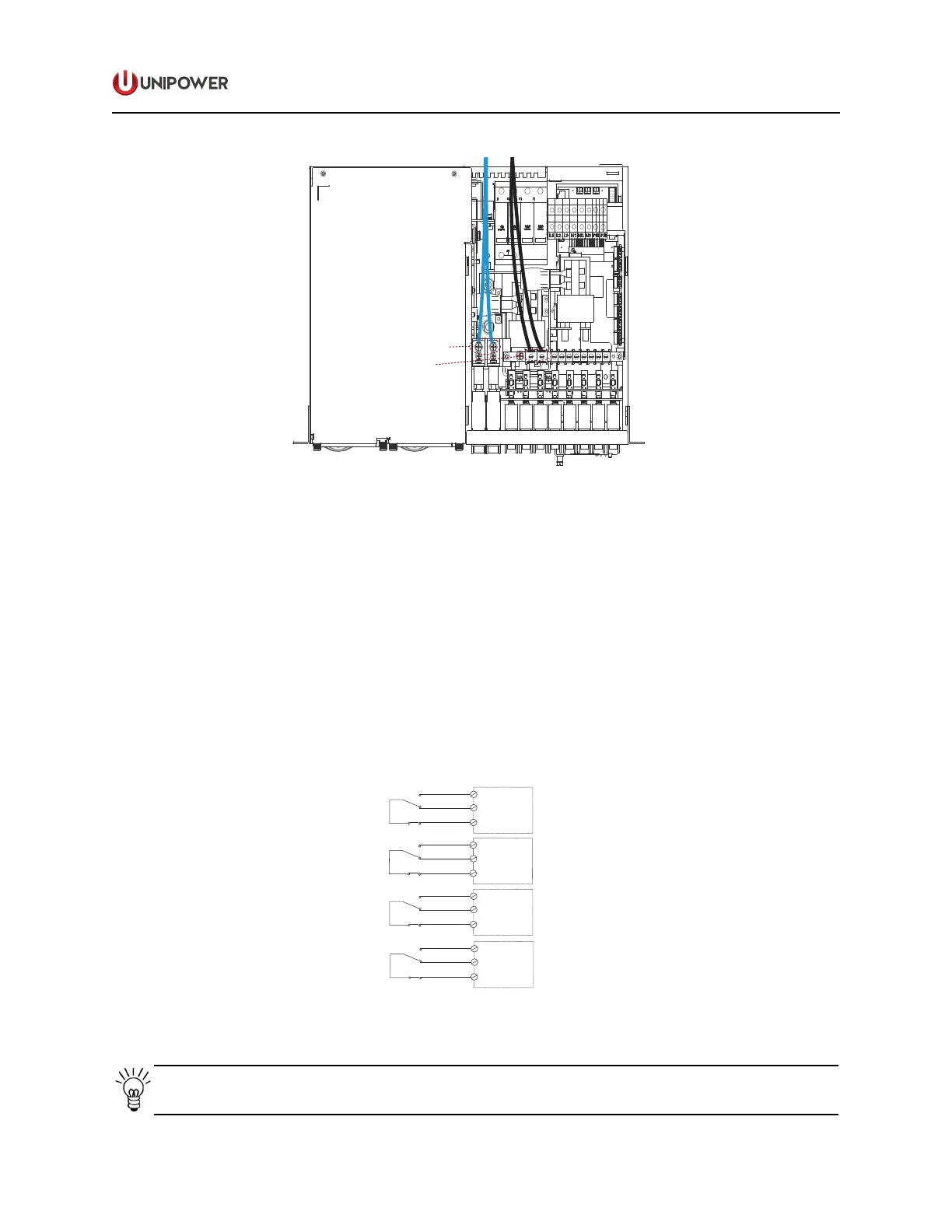

Figure 4-8 Signal Connection Detail
4.5.4 DC Load Connections
Load Connections are available at the rear, with connections labeled corresponding to each
load breaker, Figure 4-9.
F1- F1+ F2- F2+ F3- F3+ F4- F4+
Batt - Batt +
Figure 4-9 Load and Battery Connections (Rear View)
For DC load connections follow instructions given in Figure 4-6.
Maximum cable size is 4.0mm
2
. Maximum torque required for tightening the screw is 0.6Nm.
CAUTION For correct electrical polarity of DC loads see connector labels.
