2.1 Overview
Aspiro DC power systems oer a range of solutions for diverse applications such as broadband
access, cable head ends, micro/pico BTS Cells, Enterprise, E911, and GSM-R.
The Aspiro shelf system utilizes ecient, dense, and reliable plug-in rectier modules
XR04.48, XR08.48 or XPGe12.48, with output power available at either 400W, 800W or
1200W per rectier, based upon a soft-switching approach. Features include wide input
operating range, wide operating temperature, full self-protection and three LEDs for
immediate rectier status indication.
The power system can be managed locally through messages and alarm displayed on the
LCD screen of the system controller or remotely, using the PC-based PowCom™ software,
or through a web browser with Ethernet connection.
2.2 System Congurations
Aspiro 1U system consists of:
1. System Controller ACC Extended
2. 4 x Load and 1 x Battery breakers including LVD
3. XR04.48 / XR08.48 / XPGe12.48 Rectiers (Maximum 2)
4. Rear Connections
1
2
3
4

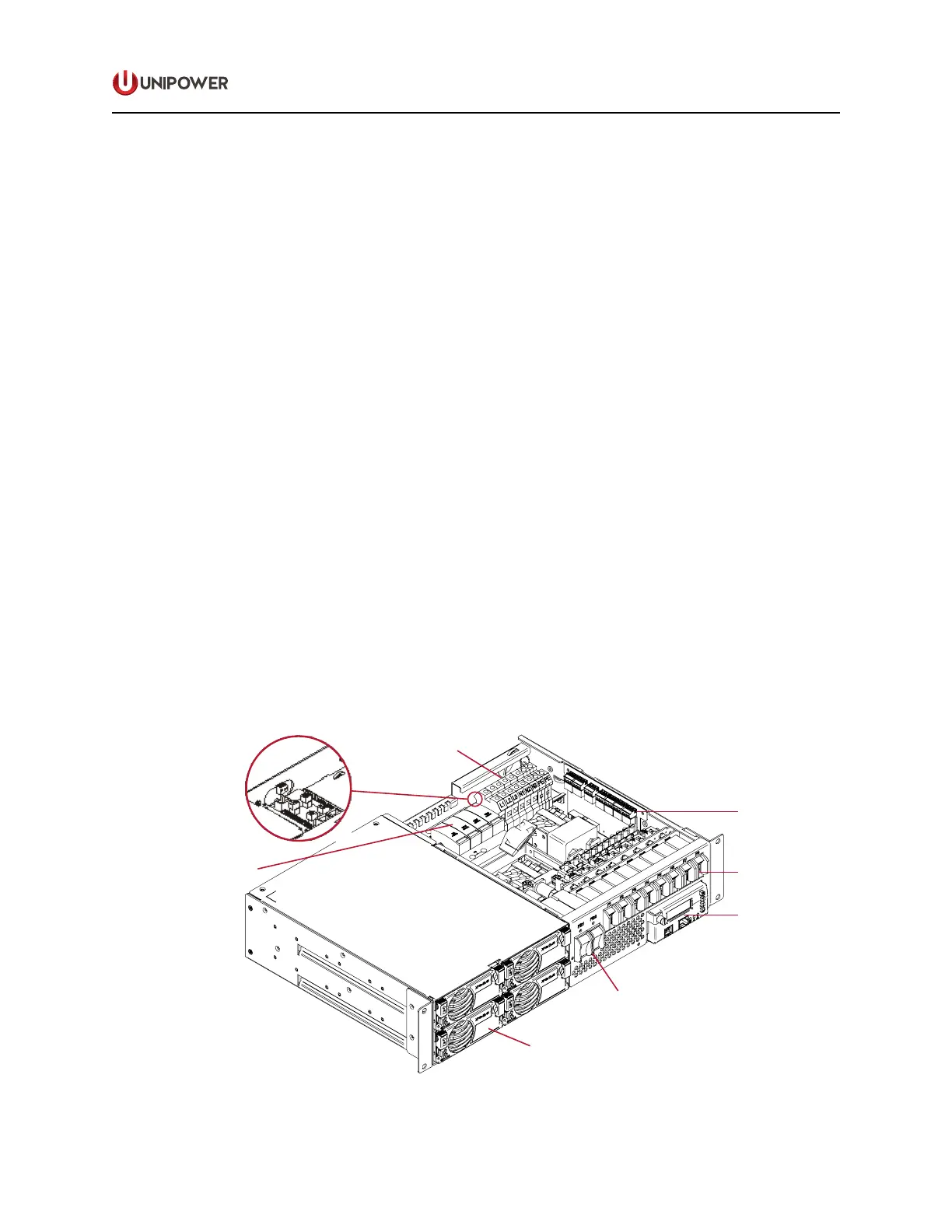

Figure 2-1 Power System Overview
