Unipower Aspiro 1U - Figure 7-6 Breaker Removal - a; Figure 7-7 Breaker Removal - B

Page 41
POWERING TECHNOLOGY
Document No. M00035-MAN rev. 3a
aspiro1u_m35-man-rev3a-0417.indd
This document is believed to be correct at time of publication and UNIPOWER LLC accepts no responsibility for
consequences from printing errors or inaccuracies. Specications are subject to change without notice.
2. Pull the Faston connector from the circuit breaker, see detail in Figure 7-6 (1).
3. Press the top and bottom of the breaker, Figure 7-6 (2) to disengage it from its place and
pull it out, Figure 7-7.
1
1
2
2

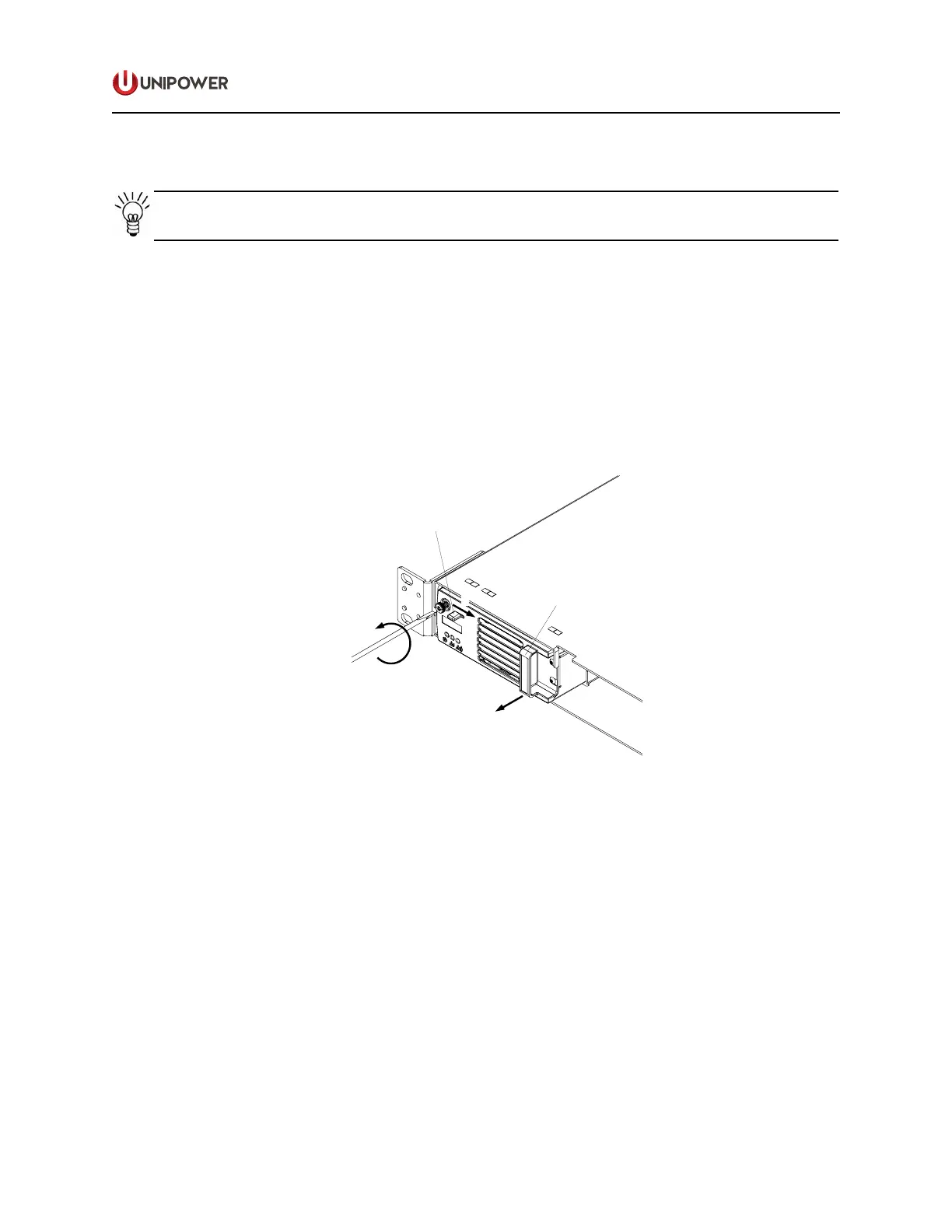

Figure 7-6 Breaker Removal - A
Figure 7-7 Breaker Removal - B
4. Snap in a new breaker of the same type.
5. Plug the Faston connector to the breaker.
6. Re-attach the top cover.
