1.1 Ports and Input Device
The keyboard has two input ports to accept a variety of input devices:
A port with DB-9 squeeze release type connector at the upper-right hand side of the
keyboard supports barcode scanner input. Wand, CCD, or Laser scanners are supported.
An open slot at the upper-left corner of the keyboard can support a standard dual track
magnetic card reader. Alternatively, this open slot can be configured to support a single
track magnetic reader, triple track magnetic reader, or a bar code slot reader.
The following procedures should be followed when connecting an undecoded barcode
scanner to the scanner port:
Plug the connector of the scanner into the DB-9 connector located at the right hand
side of the keyboard.
•
• Switch the computer off.
Switch the computer back on.•
1.2 Decoding Capability
1.2.1 Bar Code:
* Code 39 Standard and Full ASCII
* UPC\EAN with supplement codes
* Interleaved 2 of 5
* Standard 2 of 5
* MSI Code
* Plessey Code
Scanner
Port
Card
Reader
Slot

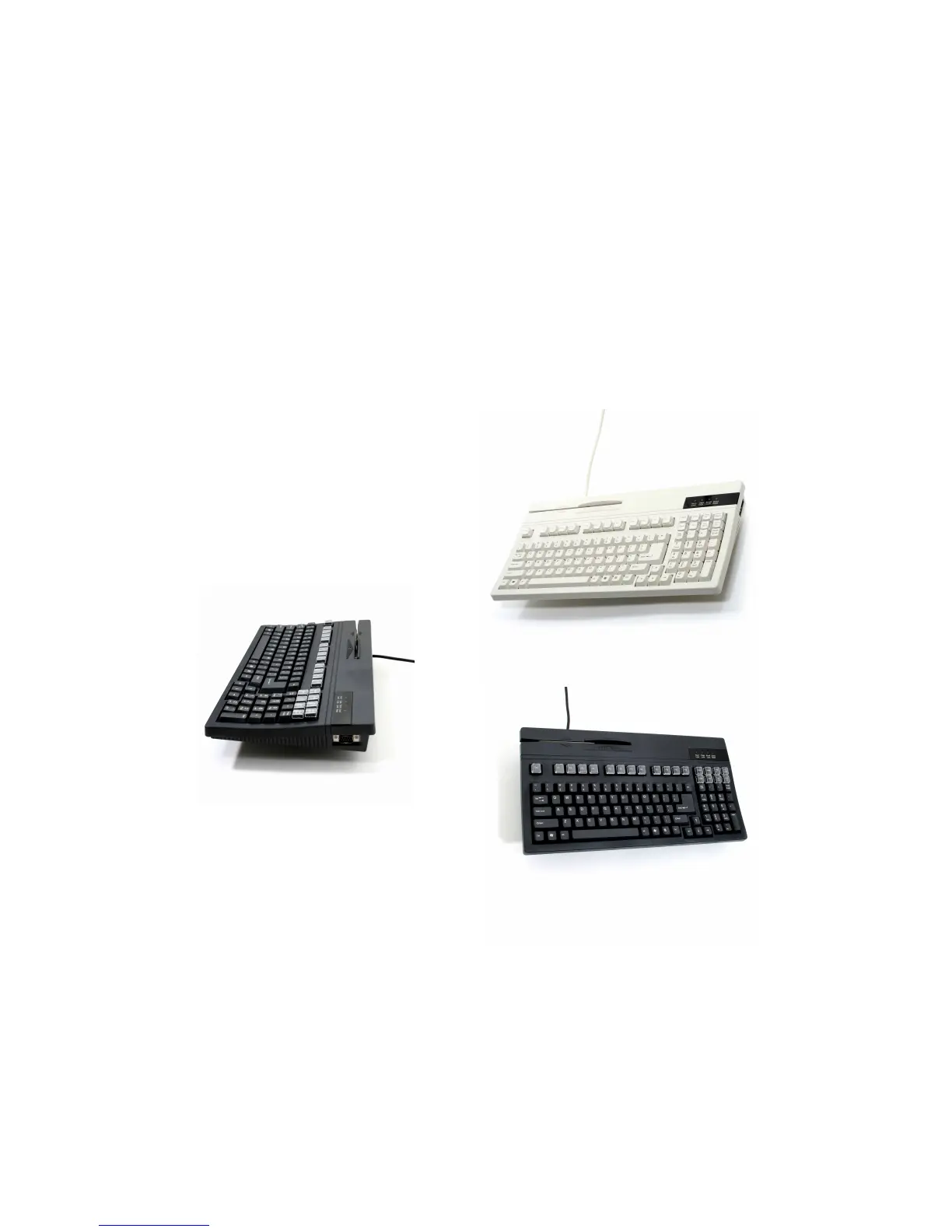

K2724B
(Black)
K2724
(Beige)
