Unitech MS836 User Manual

A check digit is optional for Code 39 and can be
added as the last digit. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits Code 39 barcodes as
is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 39 barcodes
to verify that the data complies with the check digit
algorithm. Barcodes passing the check will be
transmitted except the last digit, whereas those failing
it will not be transmitted.

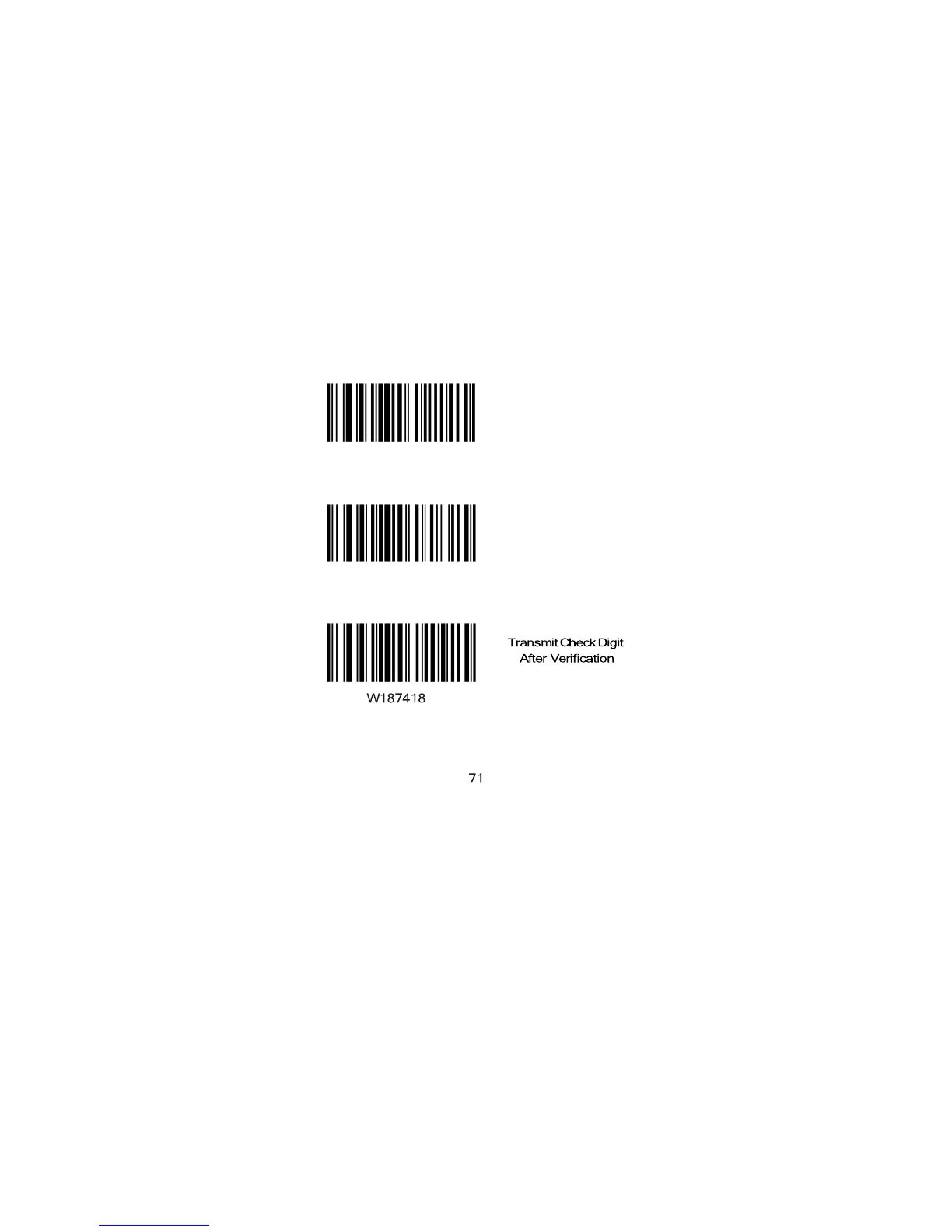

Transmit Check Digit After Verification: The scanner
checks the integrity of all Code 39 barcodes to
verify that the data complies with the check digit
algorithm. Barcodes passing the check will be
transmitted, whereas those failing it will not be
transmitted.
W187400
W187408
*Disable
Do Not Transmit Check Digit
After Verification

Unitech MS836 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Maximum scan area	220 x 250 mm
Maximum scan width	220 mm
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Power consumption	85 mA
Buzzer	Yes
Certification	CE, FCC
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP42
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Depth	95 mm
Width	70 mm
Height	160 mm
Weight	150 g
