Unitech MS836 User Manual

W0C760C
Check digits are optional for Code 93 and can be
added as the last two digits, which are calculated
valuesused to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Digit After Verification: The
scanner checks the integrity of all Code 93 barcodes to
verify that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted except the last two digits, whereas those
failing them will not be transmitted.
Transmit Check Digit After Verification: The scanner
checks the integrity of all Code 93 barcodes to
verify that the data complies with the check digit
algorithm. Barcodes passing the checks will be
transmitted, whereas those failing them will not be
transmitted.

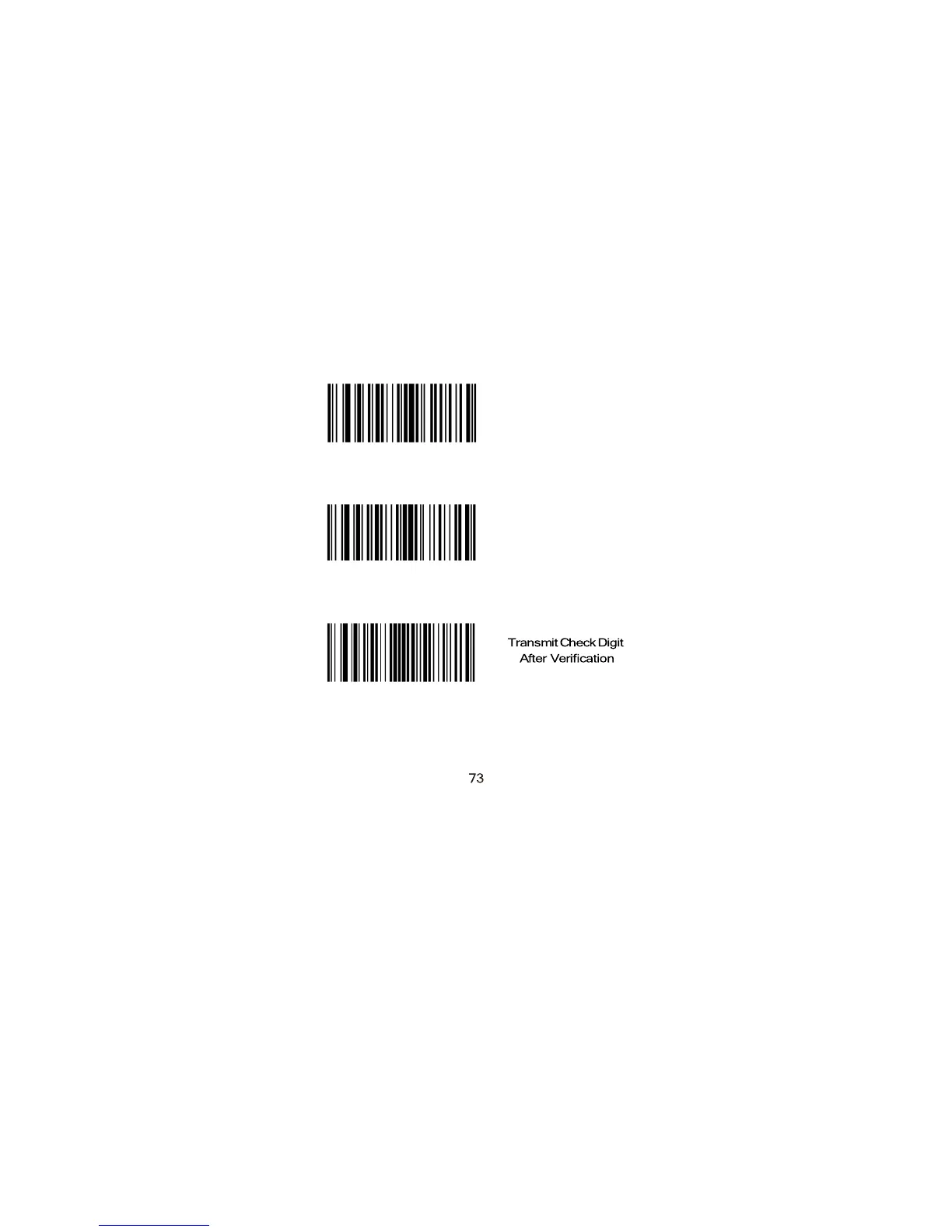

Disable
W0C7600
W0C7604
*Do Not Transmit Check Digit
After Verification

Unitech MS836 Specifications

General

Type	Handheld bar code reader
Wavelength	650 nm
Sensor type	Laser
Scanner type	1D
Read rate (max)	100 reads/s
Maximum scan area	220 x 250 mm
Maximum scan width	220 mm
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	USB
Connectivity technology	Wired
Power consumption	85 mA
Buzzer	Yes
Certification	CE, FCC
Product color	Black
Housing material	Plastic
International Protection (IP) code	IP42
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 85 %

Weight and Dimensions

Depth	95 mm
Width	70 mm
Height	160 mm
Weight	150 g
