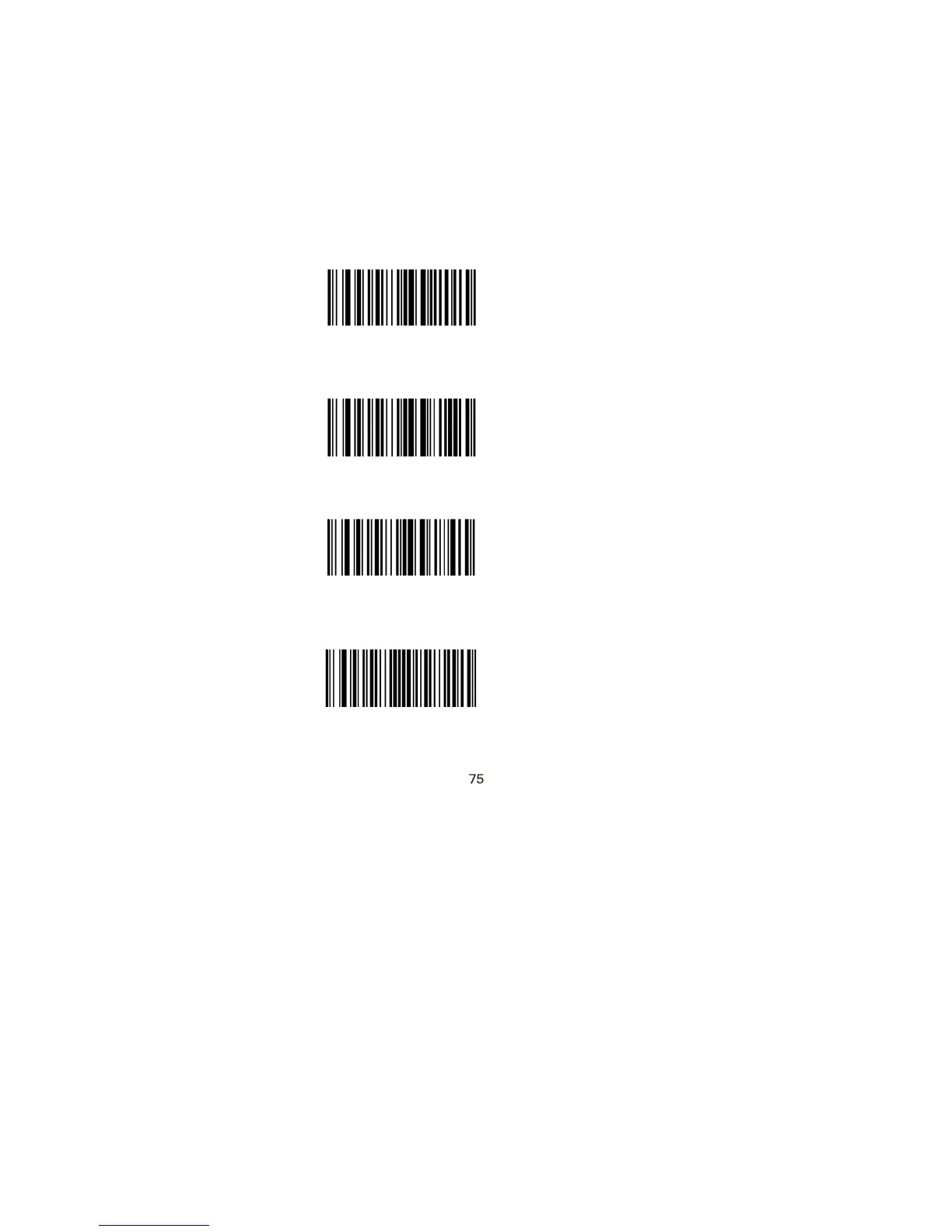

Check digits are optional for Code 11
and can be added as the last one or
two digits, which are calculated
values used to verify the integrity of
the data.
If the Disable option is enabled,
the scanner transmits Code 11
barcodes as is.
W0C7900
Disable
W0C7904
W0C7908
*One Check Digit,MOD10
Two Check Digits,
MOD10/MOD10
W0C790C
Two Check Digits,
MOD10/MOD11

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Unitech MS836 and is the answer not in the manual?

Unitech MS836 Specifications

General IconGeneral
TypeHandheld bar code reader
Wavelength650 nm
Sensor typeLaser
Scanner type1D
Read rate (max)100 reads/s
Maximum scan area220 x 250 mm
Maximum scan width220 mm
Linear (1D) barcodes supportedCodabar, Code 128, Code 39, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, U.P.C.
2D (matrix & stacked) barcodes supportedNot supported
Standard interfacesUSB
Connectivity technologyWired
Power consumption85 mA
BuzzerYes
CertificationCE, FCC
Product colorBlack
Housing materialPlastic
International Protection (IP) codeIP42
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 85 %
Weight and Dimensions IconWeight and Dimensions
Depth95 mm
Width70 mm
Height160 mm
Weight150 g
