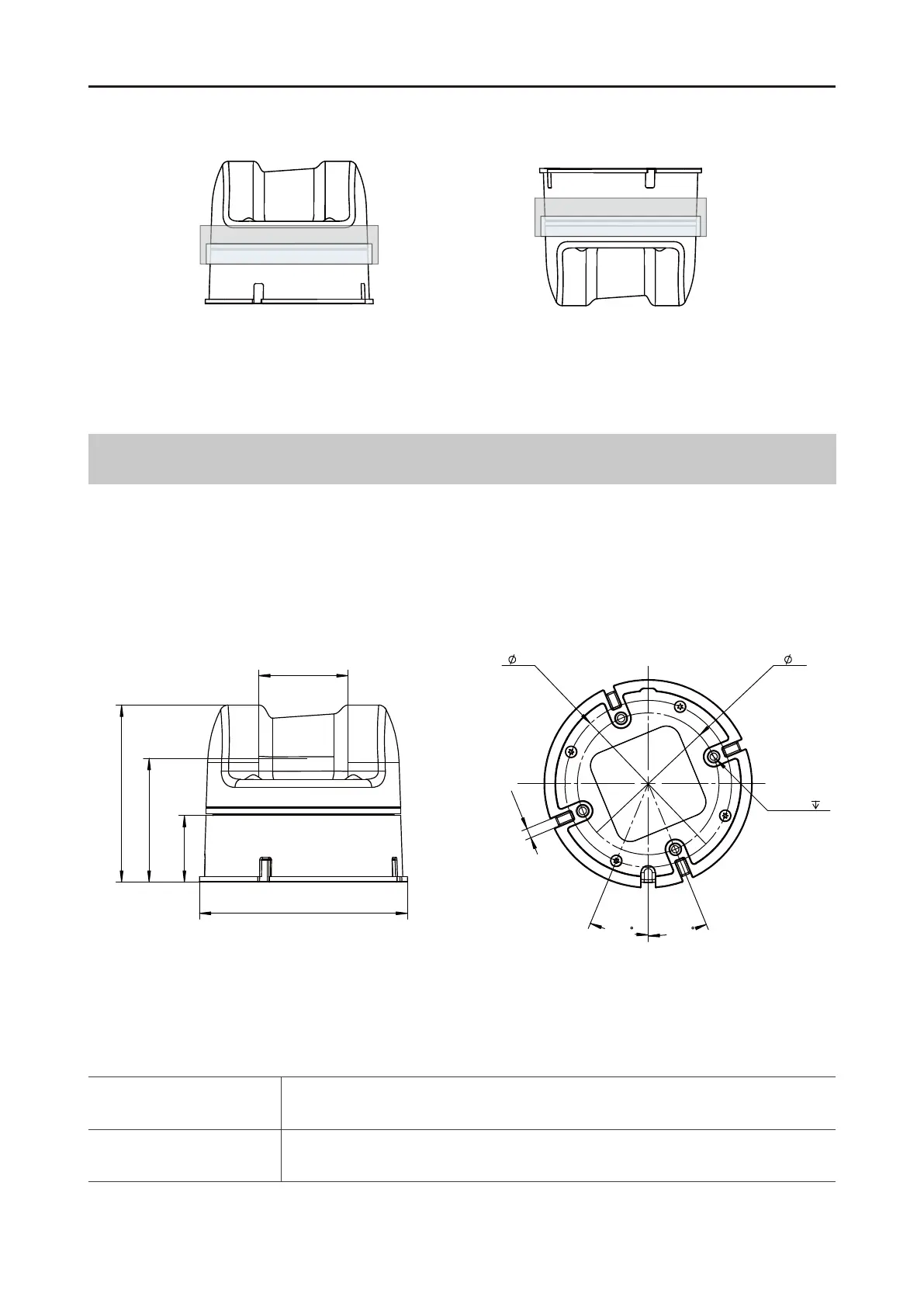

L2 Mechanical Dimensions
Unit：mm
Installation Dimensions
The bottom of the L2 has 4 M3 installation holes with a depth of 6mm. Please install the L2 in an
appropriate position according to the L2 mechanical dimensions and installation hole position
dimensions shown in the following figure.
L2 Weight and Dimensions
2024 Unitree Robotics. All rights reserved.
8
Unitree4D LiDAR-L2 User Manual
Weight
Dimensions
230g
75 (width) x75 (depth) x65 (height)mm
60 51
22.5 22.5
6 4 x M3
3.50
65
32
44.50
24
75
Installation Water Protection Diagram
DownUpside
