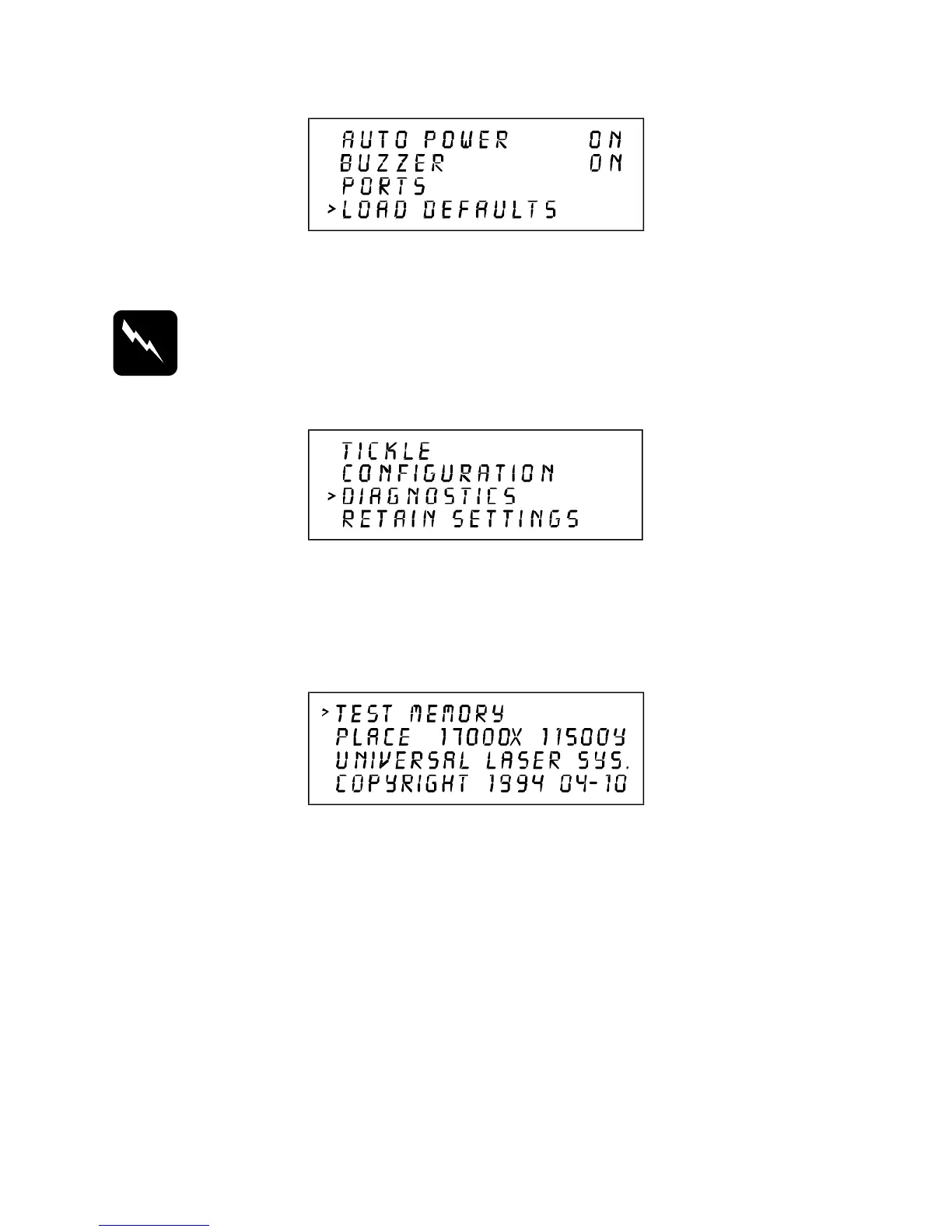

The LOAD DEFAULTS selection on the last line returns the system to its factory default settings.
WARNING:
Do not select the LOAD DEFAULTS menu selection without first consulting a ULS
technical support representative.
The DIAGNOSTICS selection allows the testing of certain features of the engraving system. Selecting
this option will lead to other submenus.
It may be necessary to use the diagnostic tests if instructed to do so by a member of the ULS technical
support staff. The first line on the menu display is a buffer memory test but in the process of testing
memory all files in the buffer will be erased. Once the memory test is started it will continue to run until
it is canceled. The second line displays the current position of the motion system in motion system units.
Each unit represents a single step of the motion system motors. The final two lines are a copyright
notice.
