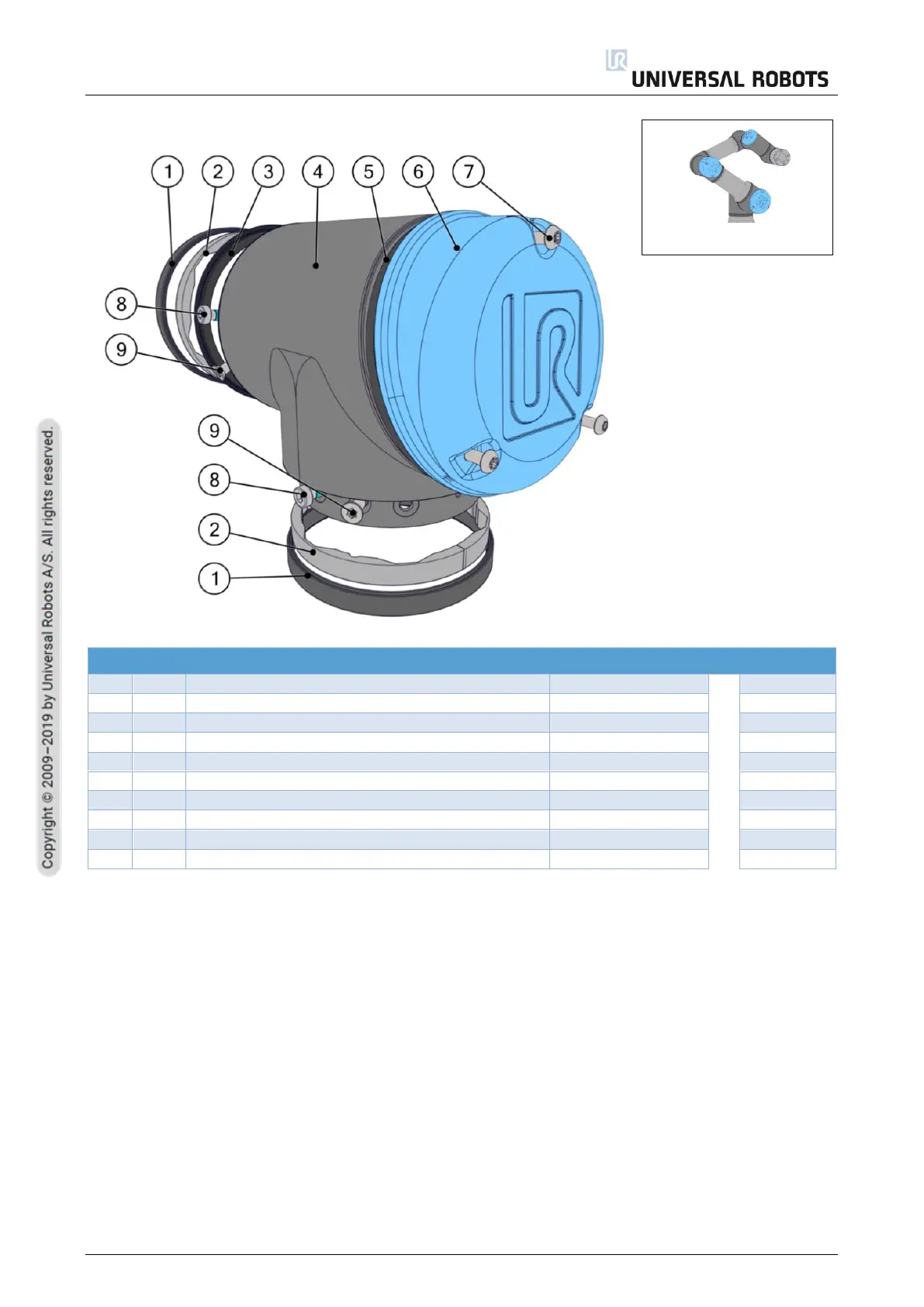

Elbow joint for UR3e– 124011
Elbow joint for UR3e– 124011
NO.
QTY.
DESCRIPTION
PART NUMBER(S)
PAGE NO.
1
2
Flat ring for size 1
103703
147
2
2
Form ring for size 1
103703
147
3
1
Wear ring for size 1
103703
147
4
1
Elbow, size 1
N/A
N/A
5
1
O-ring for lid size 1
103413
150
6
1
Lid size 1
103413
150
7
3
Screws for lid size 1
103413
150
8
16
Screws
N/A
N/A
9
6
Screws counter sunk
N/A
N/A
