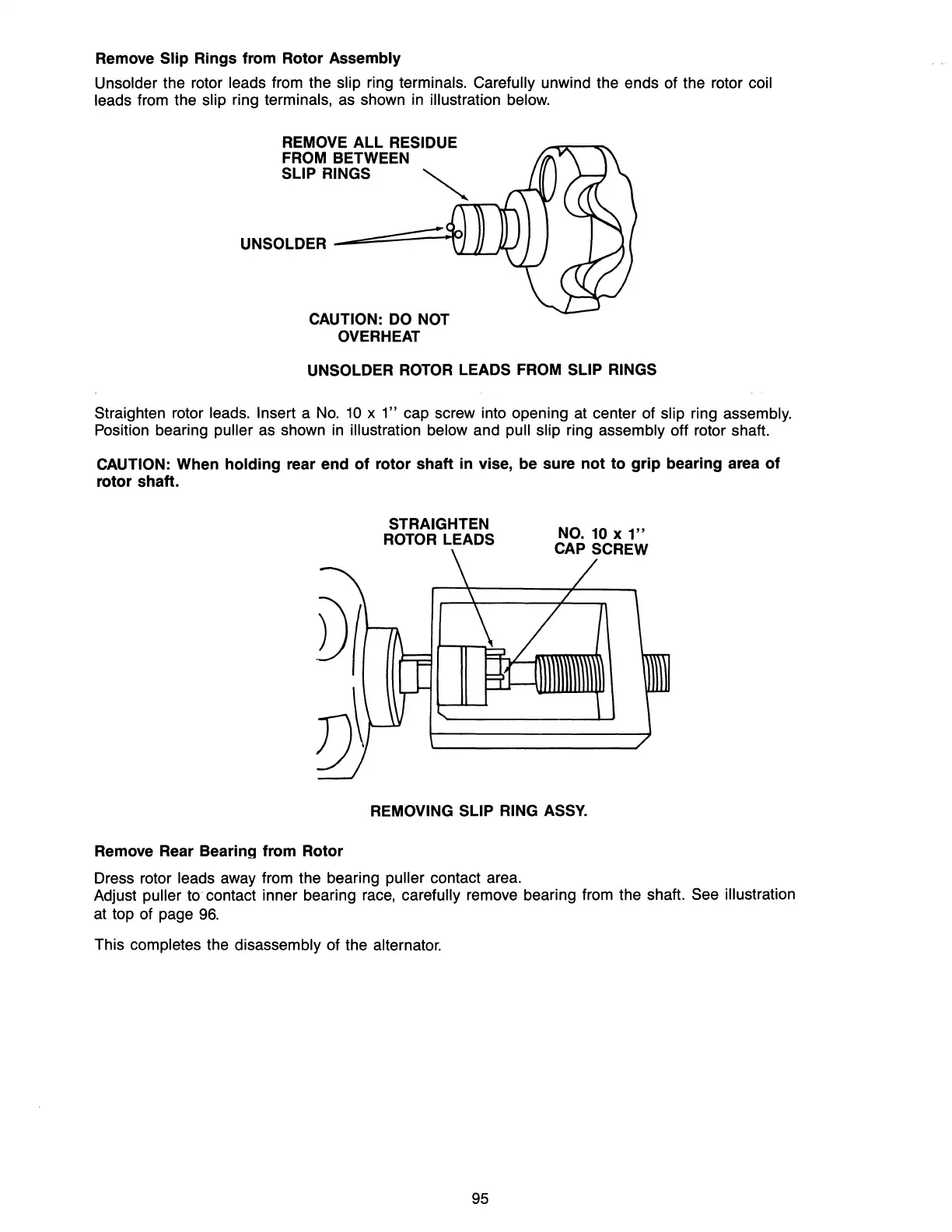

Remove Slip Rings from Rotor Assembly
Unsolder
the rotor leads from the slip ring terminals. Carefully unwind the ends of the rotor coil
leads
from the slip ring terminals, as shown
in
illustration below.
REMOVE
ALL RESIDUE
FROM
BETWEEN
SLIP RINGS
UNSOLDER
_=:::::::.----ji"'1
CAUTION:
DO
NOT
OVERHEAT
UNSOLDER
ROTOR
LEADS FROM SLIP RINGS
Straighten rotor leads. Insert a
No.
10
x
1"
cap screw into opening
at
center of slip ring assembly.
Position bearing puller as shown
in
illustration below and pull slip ring assembly off rotor shaft.
CAUTION: When holding rear end of rotor shaft
in
vise, be sure not to grip bearing area of
rotor shaft.
Remove Rear Bearing from Rotor
STRAIGHTEN
ROTOR
LEADS
REMOVING SLIP RING
ASSY.
Dress rotor leads away from the bearing puller contact area.
Adjust
puller to contact inner bearing
race,
carefully remove bearing from the shaft. See illustration
at
top of page
96.
This completes the disassembly of the alternator.
95
