Universal M-12 User Manual

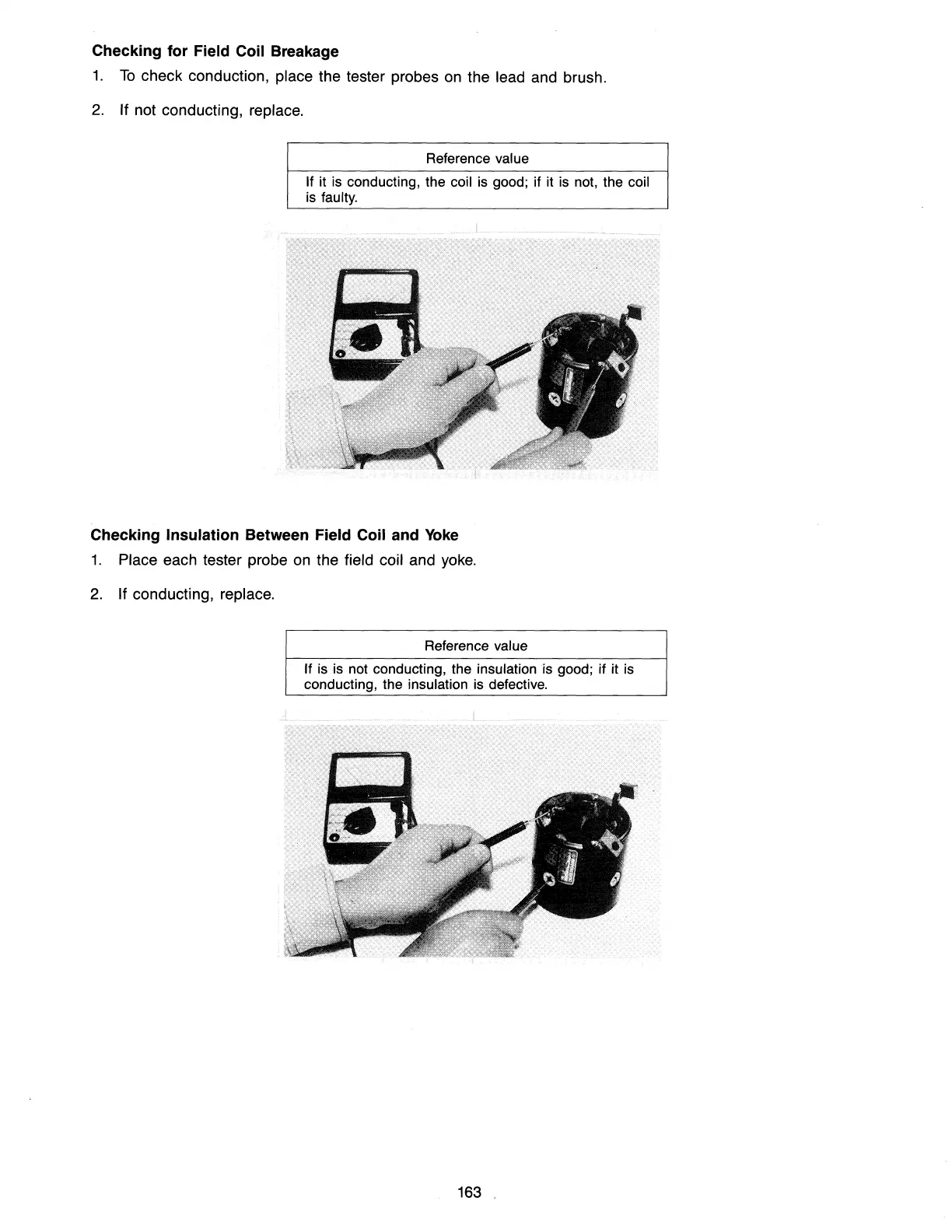

Checking for Field Coil Breakage
1. To check conduction, place the tester probes on the lead and brush.
2. If not conducting, replace.
Reference value
If
it is conducting, the coil is good; if it is not, the coil
is faulty.
Checking Insulation Between Field Coil and Yoke
1. Place each tester probe on the field coil and yoke.
2. If conducting, replace.
Reference value
If
is is not conducting, the insulation is good; if it is
conducting, the insulation is defective.
163 .
