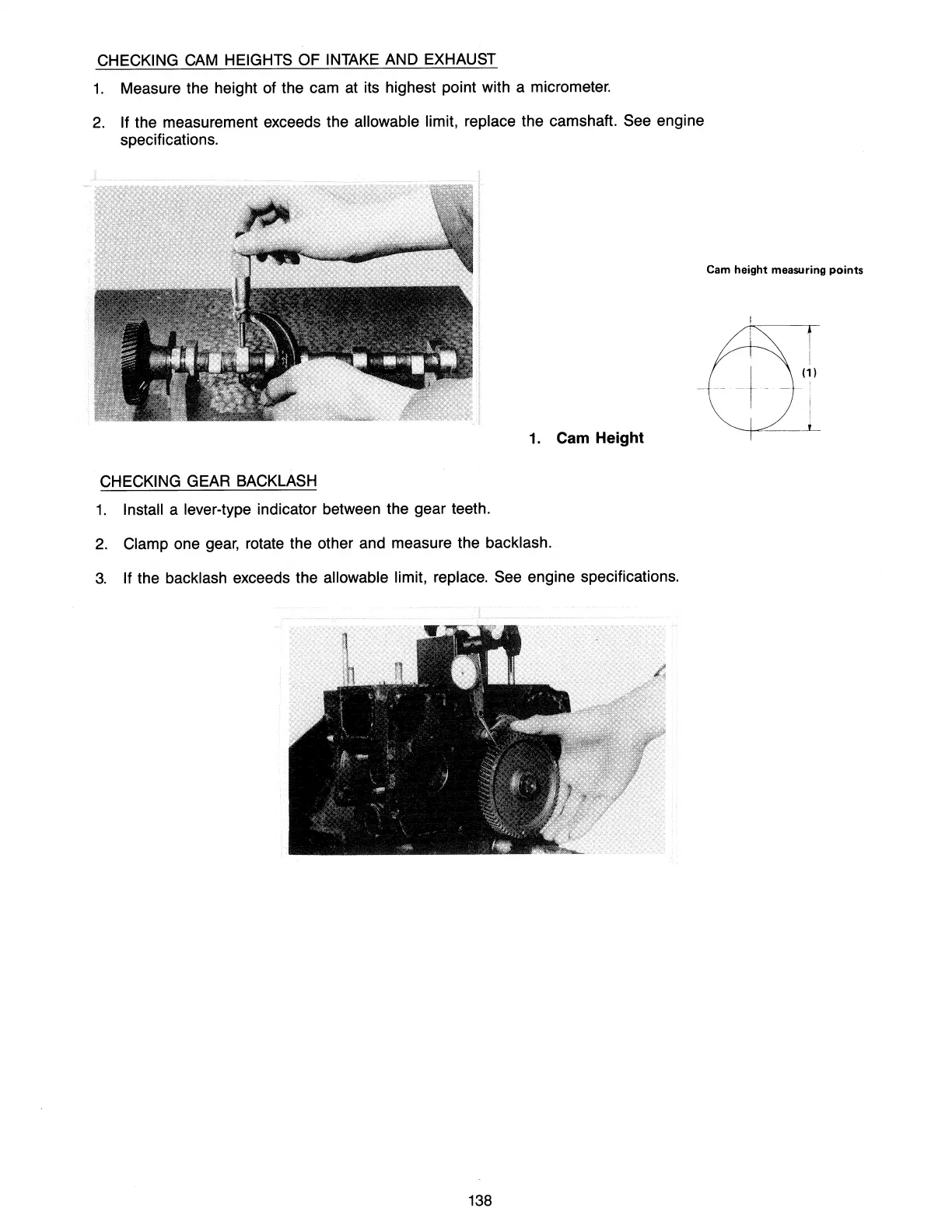

CHECKING CAM HEIGHTS
OF
INTAKE
AND
EXHAUST
1.
Measure the height of the cam
at
its highest point with a micrometer.
2.
If the measurement exceeds the allowable limit, replace the camshaft. See engine
specifications.
1. Cam Height
CHECKING GEAR BACKLASH
1.
Install a lever-type indicator between the gear teeth.
2.
Clamp one
gear,
rotate the other and measure the backlash.
3.
If the backlash exceeds the allowable limit, replace. See engine specifications.
138
Cam height measuring
points
