OVEN
T
est to do
Check if the c
ontactors are stuck closed, constantly feeding the heating elements.

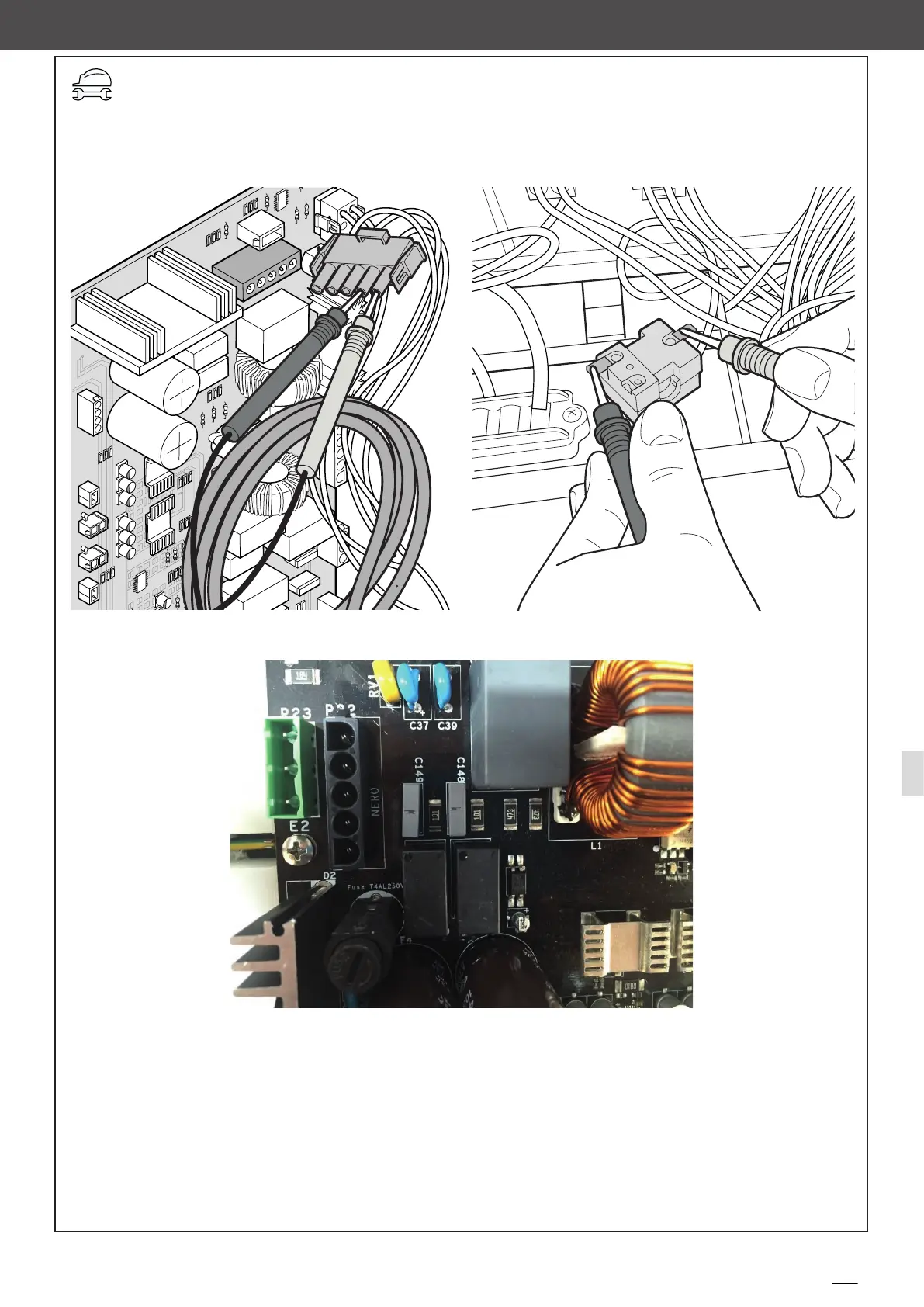

The powerboard picture to send to Service international
Picture 1
136
135
137
Table of Contents
Table of Contents
3
Introduction
4
Power Board Layout
8
Software Update
46
Service MENU User Setting Parameters
59
Steam.maxi TM TM
66
Air.maxi TM
71
Self Cleaning Solenoid Valves
74
Cheftop Mind.maps TM Big
83
Spido.gas TM Theory and Practice
103
Fault Message Guide
129
AF01 - Motor Thermal Protection (Permanent Error)
132
AF02 - Safety Thermostat Alarm
135
AF03 - Temperature Probes Alarm
137
AF04 - Communication Error with Power Board
140
AF23 - Gas Alarm
143
AF24 - W Rong Position of Pollo Valve
147
AF25 - Trolley Is Missing
149
AF26 - Tank Missing or Safety Thermostat
151
AF39 - Chamber Ceiling Temperature too High
153
AF41 - Case 1, T > 150 °C (302 °F)
156
AF41 - Case 2, T < 150 °C (302 °F)
157
AF43 - Single-Point or Multi-Point Core Probe Completely Damaged
158
WF01 - WF02 Chamber Temperature Probe
159
WF04 - AFO8 Fan Speed Error
160
WF06 - Power Board Temperature Warning
162
WF16 - Lack of Water or EL1
164
WF17 - Partial Breaking of Multipoint Probe
168
WF19 - Lack of Detergent
170
WF20 - Rotor Valve EG1
171
WF23 - Blower Tachometer Alarm
172
WF25 - Water Valve EL2
174
WF26 - Rotor Valve EG2
175
WF27 - Lack of Water or Valve EL1
176
WF29 - Gas Fumes Temperature
177
WF30 - Gas Fumes Probe Board Communication Error
178
WF31 - Fumes Board Temperature
179
WF33/AF40 - (Only in Gas Ovens) Corrupted Sd Card
181
WF34 EG1 or EL2 Valve
182
WF35 EG1 or EG2 or EL2 Valve
183
WF36 Lack of Water or EL1 or EG1/EG2
184
Wf37 - Lack of Water or El1 or Eg1/Eg2
185
WF38 - Flame Control Board Warning
186
WF41 - Internet Connection Failure
187
Hood
188
WC01 - Temperature Probe Warning
188
WC02 - Power Board over Temperature
190
WC05 - Fumes Temperature Warning
191
WC06 - Lack of Power Warning
192
WC07 - Lack of Communication Warning
193
AS01-AS02- Floor or Ceiling Safety Thermostat Alarm
194
STATIC Oven
194
AS03 - Lack of Communication Alarm
195
AS04-AS05 - Floor/Ceiling Temperature Probe Alarm
196
WS01 - Power Board Overheating Warning
197
Al01-Al04 - Chamber/Resistor Temperature Probe Alarm
198
AL02 - Lack of Communication Alarm
199
AL03 - Lack of Power Alarm
200
WL01 - Humidity Probe Alarm
201
WL02 - Power Board over Temperature Alarm
202
AM01 - Chamber Temperature Probe Alarm
203
Slowtop
203
AM02 - Lack of Communication
204
AM03 - Safety Thermostat Alarm
205
AM04 - Motor Thermal Protection Alarm (T > 150 °C/302 °F)
206
WM02 - Power Board Overheating Warning
207
WM03 - Core Probe Warning
208
NON Alarm Problems
209
