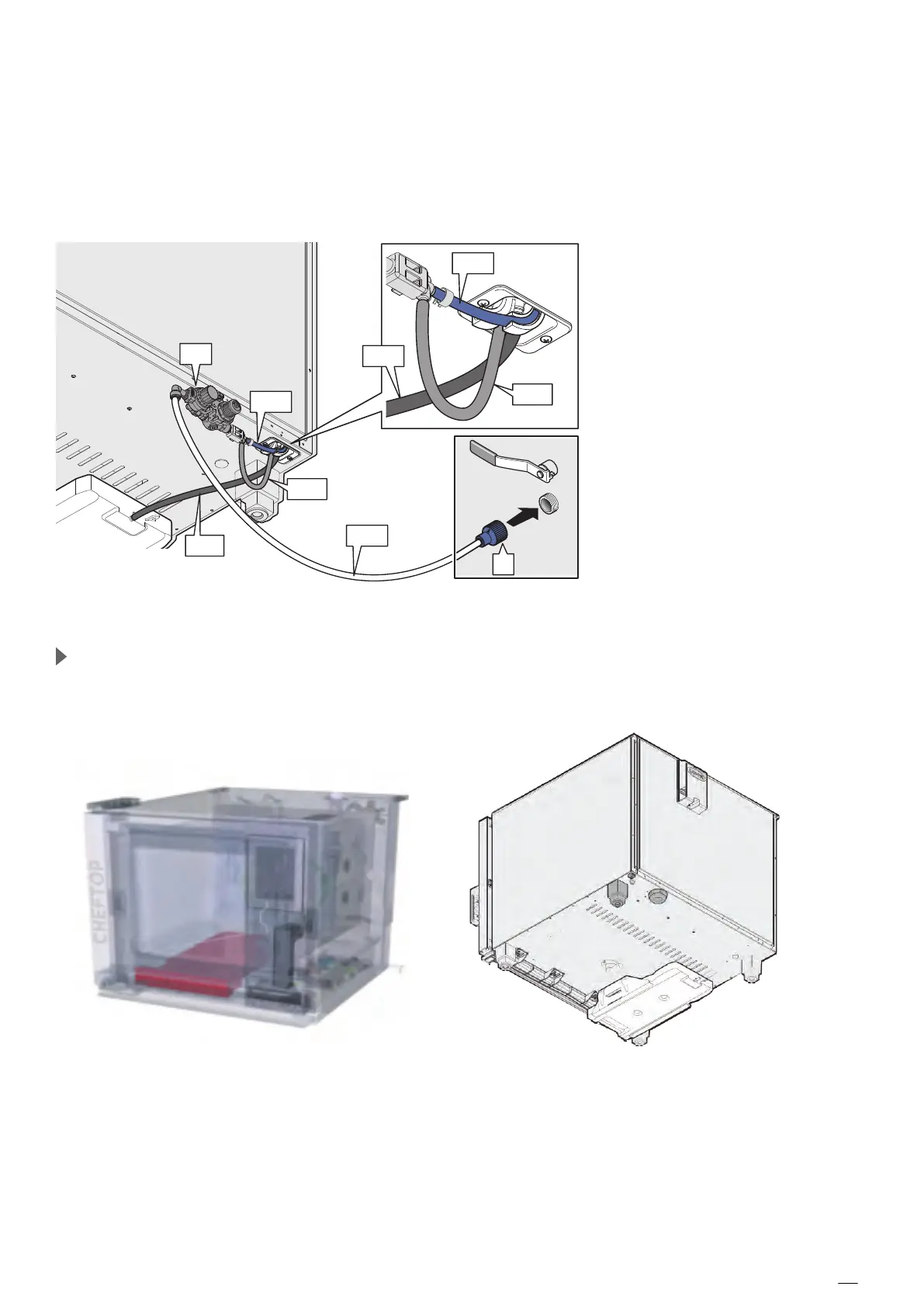

The water inlet system is composed of:
A) Input filter 3/4’’ with non-return valve;
B) One mechanical filter of 100 μm;
C) One pressure reducer set at 2.3 bar / 29 psi (not adjustable);
D) One water main connection pipe made of white LDPE (d=15mm 0,6 inches)
E) For Plus and One models one Cleaning system fed by the blue pipe made of LDPE (d = 12 mm - 0,47 inches)
F) EPDM 12 mm black pipe for steam (d = 12 mm - 0,47 inches)
G) Connection to the detergent tank black LDPE (d = 10 mm - 0,4 inches)
A
B-C
ø12 F
ø10 G
ø12 E
ø15 D
ø12 F
ø10 G
ø12 E
Water inlet after December 2016
Detergent tank
CHEFTOP-BAKERTOP MIND.Maps™ PLUS and ONE ovens are equipped with a chemical tank installed
underneath the oven. CHEFTOP MIND.Maps™ Compact Ovens’ detergent tank is inside the oven structure.
CHEFTOP MIND.Maps™ Compact
CHEFTOP MIND.Maps™
The tank capacity changes according to the oven model:
■ 3 l + 0,8 l of reserve (0,66 gal + 28,15 floz)
■ 2 l + 0,8 l of reserve (0,44 gal + 28,15 floz) only for compact oven
