Checks
- The copper jumper and the electrical cable must be secured together beneath the screw in its tightening direction; and
the electrical connections must be well secured before connecting the appliance to the mains electricity .
- check for any electrical dispersion between the phases and the ground, and for electrical continuity between
UIFFYUFSOBMDBTJOHBOEUIFNBJOHSPVOEMJOF
- Check that the power supply voltage does not deviate from the nominal voltage value specied on the
appliance rating plate when the appliance is operating. If this is not the case, wire the phases as specied on
the "technical specications" sheet attached.
Adapting to dierent voltage
'PSFMFDUSJDBMBOEWPMUBHFSFRVJSFNFOUTUIBUEJòFSGSPNTUBOEBSEWBMVFT7_1)/1&)[JUJTOFDFT-
sary to replace the power supply cable and connect the new cable to the terminal board following the diagrams on
the i5FDIOJDBMTQFDJöDBUJPOTwTIFFU 1PXFSTVQQMZ$POOFDUJPO%JBHSBN attached to the appliance.
Replacing the power supply cable
The cable must be replaced by UNOX or by
its technical assistance service, and in all
cases by a person with similar qualication
in order to avoid possible risks.
Follow the procedures below to replace the power
supply cable:

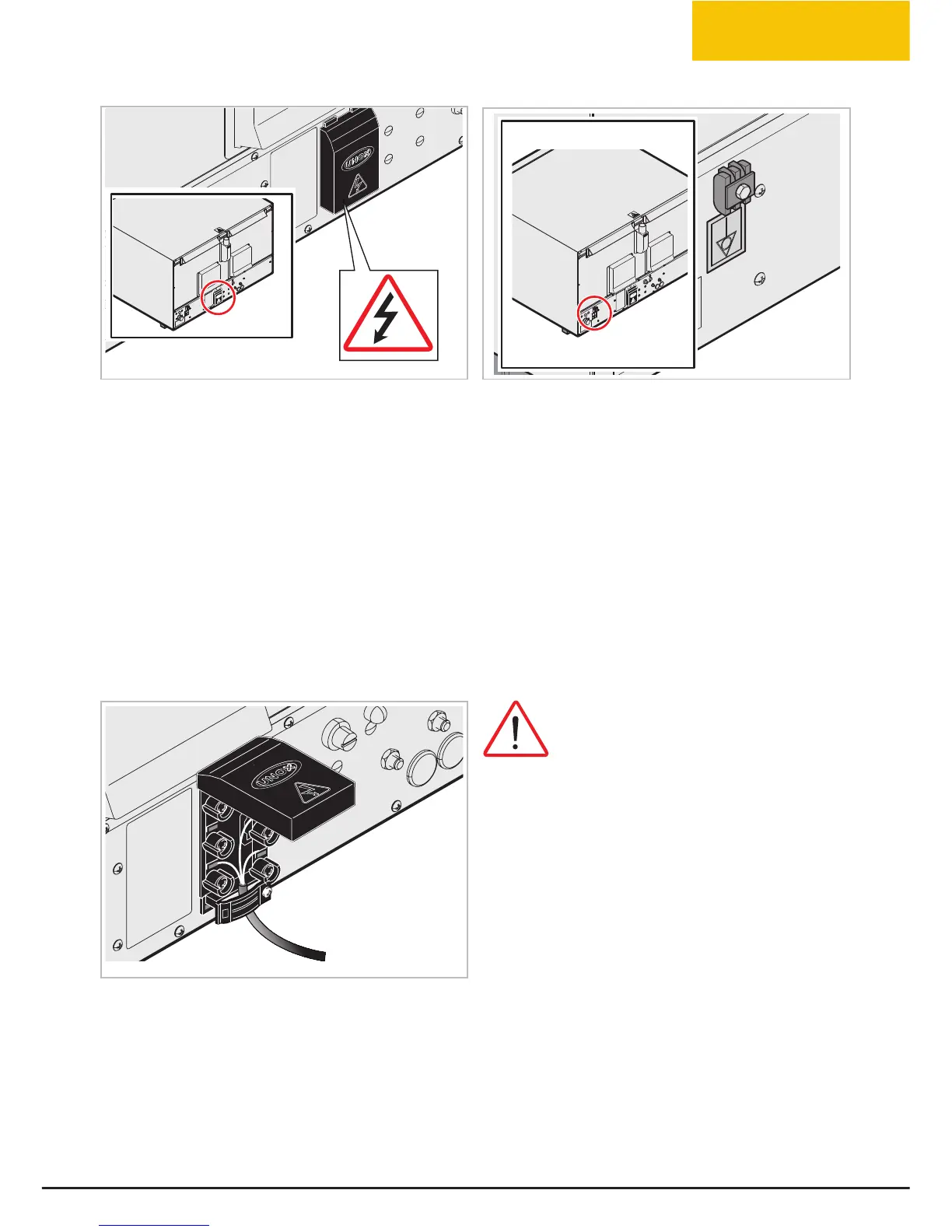

- open the cover of the terminal board by releasing the
two bottom tabs;
- remove the cable installed by detaching it from the
terminal board;
- consult the i5FDIOJDBMTQFDJöDBUJPOTwTIFFU POWER
SUPPLYCONNECTION DIAGRAM: the sheet indi-
cates all possible wiring diagrams and the specica-
tions that the new cable must have in reference to
the wiring selected $BCMF5ZQF ;
- re-connect the cable;
- Close the terminal board cover again

