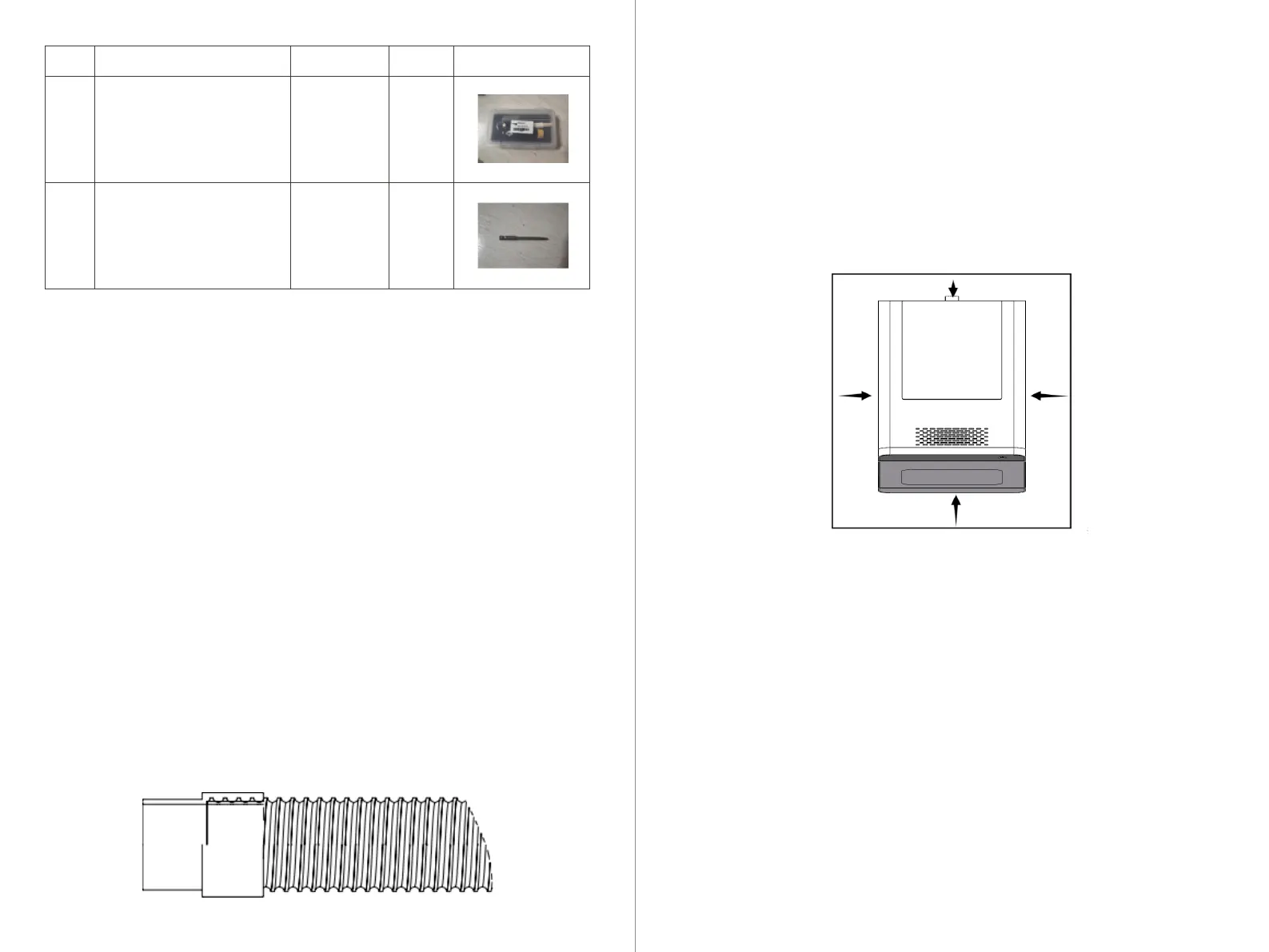

Spindle chuck cleaning set
M3*75 hexagon bits
1
1
4.3 Additional Peripheral Equipment Preparation Required
4.4 Selection of Installation Environment
Dust Collector
A dust collector is required for the operation of the equipment. It is used to
collect and remove dust, waste, and particles generated during machine opera-
tion, maintaining a clean working environment, reducing the impact of dust on
operator health, preventing fire or explosion hazards, and avoiding damage to
components caused by dust entering the equipment.
Please ensure that the dust collector meets the following requirements:
- Airflow: ≥2600L/M
- Suction: ≥52KP·m³/s
- Diameter of vacuum hose: Inner diameter 40mm, outer diameter 48mm
Equipment Transportation: Due to the heavy weight of the main unit alone,
which is 106KG, at least 4 personnel are required for transportation. Ensure that
each person has sufficient strength to participate in the transportation. When
transporting, lift and carry the equipment from the four bottom corners togeth-
er. Be sure to hold the equipment firmly to prevent dropping. This ensures the
safety and smoothness of the transportation process.
15 16
Name SpecificationItem Qty Style
Installation Site Requirements:
Equipment Weight: 106KG
- The equipment must be placed on a sturdy and level surface capable of bear-
ing the weight of the machine.
Equipment Dimensions: Length 560mm × Width 442mm × Height 704mm
- The dimensions of the installation area should exceed the actual size of the
equipment to ensure stable installation.
