© UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com
6
P5
P4
H1
H1

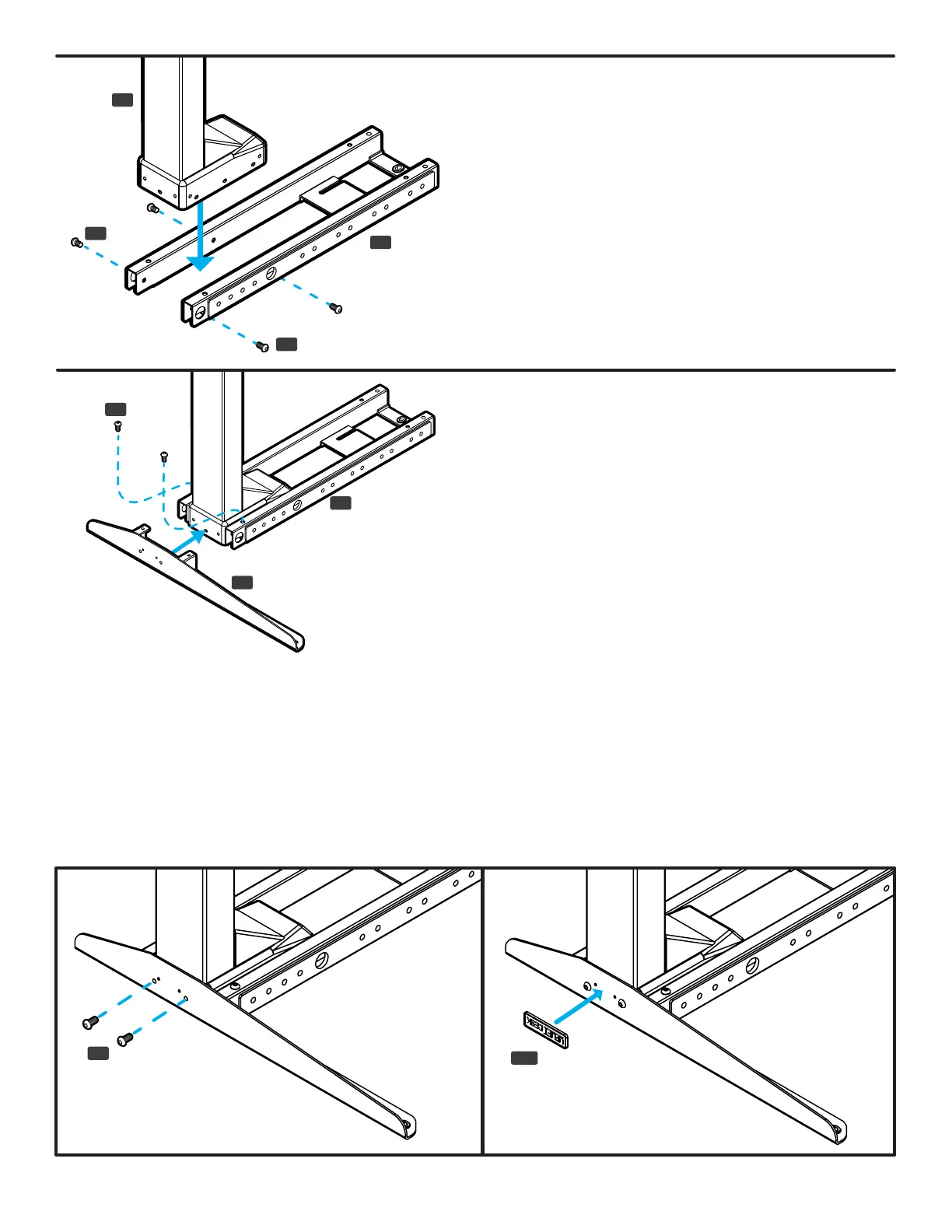

Step 3 - Side Bracket Attachment
A. Slide the tabs of the Side Bracket (P2) into the
Crossbar End (P5) and insert two M6x10 Machine
Screws (H1) through the top of the Crossbar End
as shown. Loosely start each screw by hand.
Once both screws are started, tighten them both
completely.
B.
Repeat this step for the 2nd Leg assembly.
• If your Side Brackets came with the Logo Plates
(P16) pre-attached, continue on to Step 4.
P5
H1
P2
• If your Side Brackets came with the Logo Plates (P16) detached and four extra M6x10 Machine Screws
(H1) were in the Side Bracket box, follow Steps C through E below.
C. Insert two M6x10 Machine Screws (H1) through the two larger holes in the face of the Side Bracket (P2)
and into the Leg. Once both screws are started, tighten them both completely.
D.
Attach the Logo Plate (P16) by pressing the posts on the Logo Plate rmly into the two smaller holes
in the side of the Side Bracket. The Logo Plate conceals the two screws in the face of the Side Bracket.
When assembling the Legs in the orientation shown, the Logo Plate will need to be attached upside-down
so that it is right-side-up when the desk is ipped over.
E.
Repeat this step for the second Leg assembly.
Step 2 - Crossbar End Attachment
A. Place one of the Crossbar Ends (P5) upside down
as shown.
B.
Position one of the Legs (P4) so that the back
of the Leg and the back of the Crossbar End are
aligned and ush.
C.
Using the 4mm Allen Wrench (H6), loosely in-
sert four M6x10 Machine Screws (H1) through the
Crossbar End holes and into the Leg as shown, but
do not tighten them.
D.
Once all four screws have been started, tighten
them using the Allen Wrench (H6).
E.
Repeat this step for the second Leg assembly.
P16
H1
To Next Page
