Section 2 - Service and Repair Lift Cylinder
113101-000 MX15 / MX19 | Service Manual Page 2-25
2-13 L
IFT
C
YLINDER
R
EMOVAL
Refer to Figure 2-21.
1. Elevate the platform and deploy the maintenance brace (see “Blocking the Elevating Assembly” on
page 2-6).
2. Provide a suitable container to catch the hydraulic fluid, then disconnect the hydraulic hoses. Immedi-
ately plug hoses to prevent foreign material from entering.
3. Remove emergency lowering valve cable and down valve wires from the emergency lowering (down)
valve.
4. Remove the cable bracket from the lift cylinder.
5. Remove capscrews and locknuts securing lift cylinder pivot pins.
6. Remove lower pivot pin and lower cylinder to rest on chassis.
7. Attach a suitable hoisting device and sling to the cylinder, and remove upper pivot pin.
8. Carefully remove cylinder.

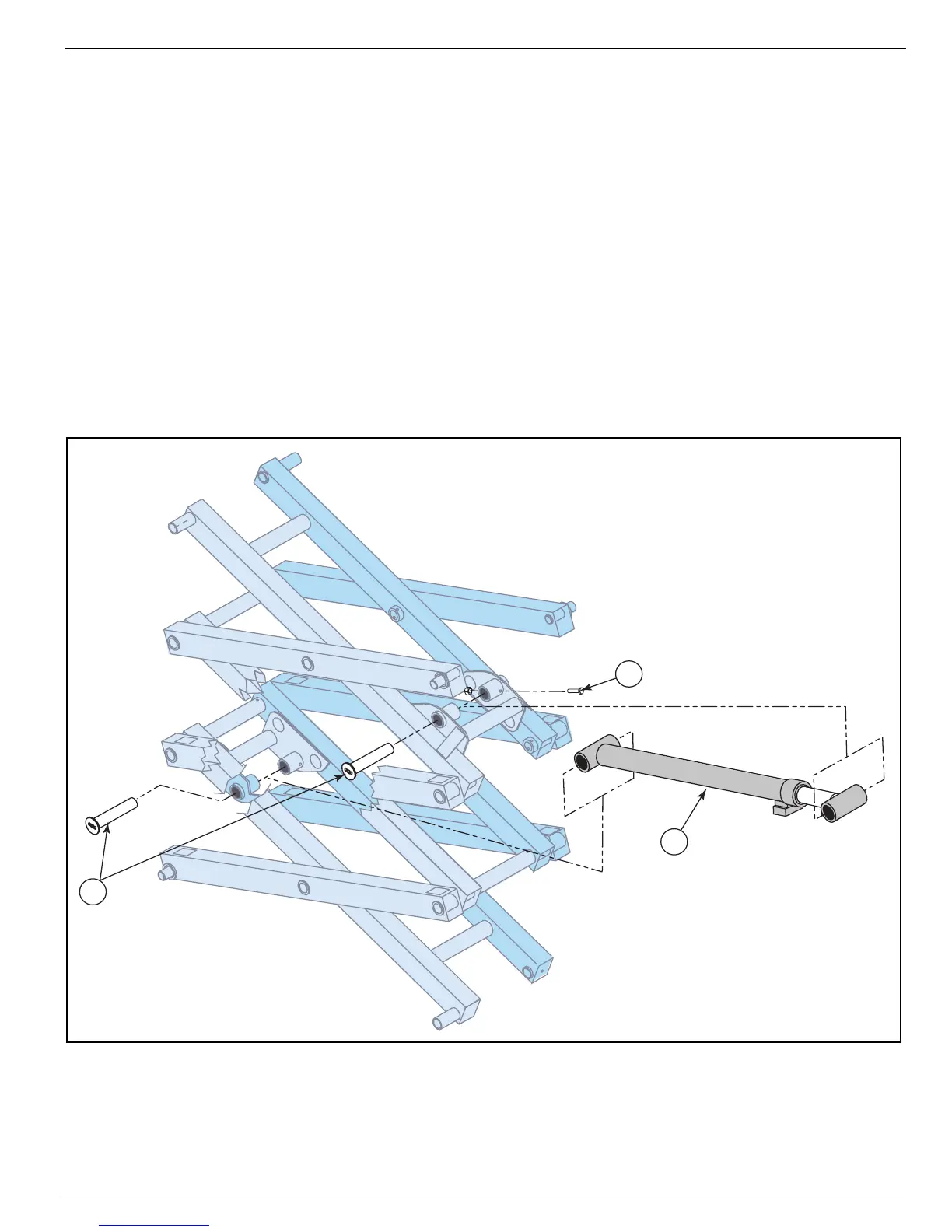

Figure 2-21:
Lift Cylinder Location
3
1
2
1. Lift Cylinder
2. Pivot Pin
3. Capscrew and Locknut
