Upright MX15 - Page 81

Section 4 - Schematics Electric
113101-000 MX15 / MX19 | Service Manual Page 4-5

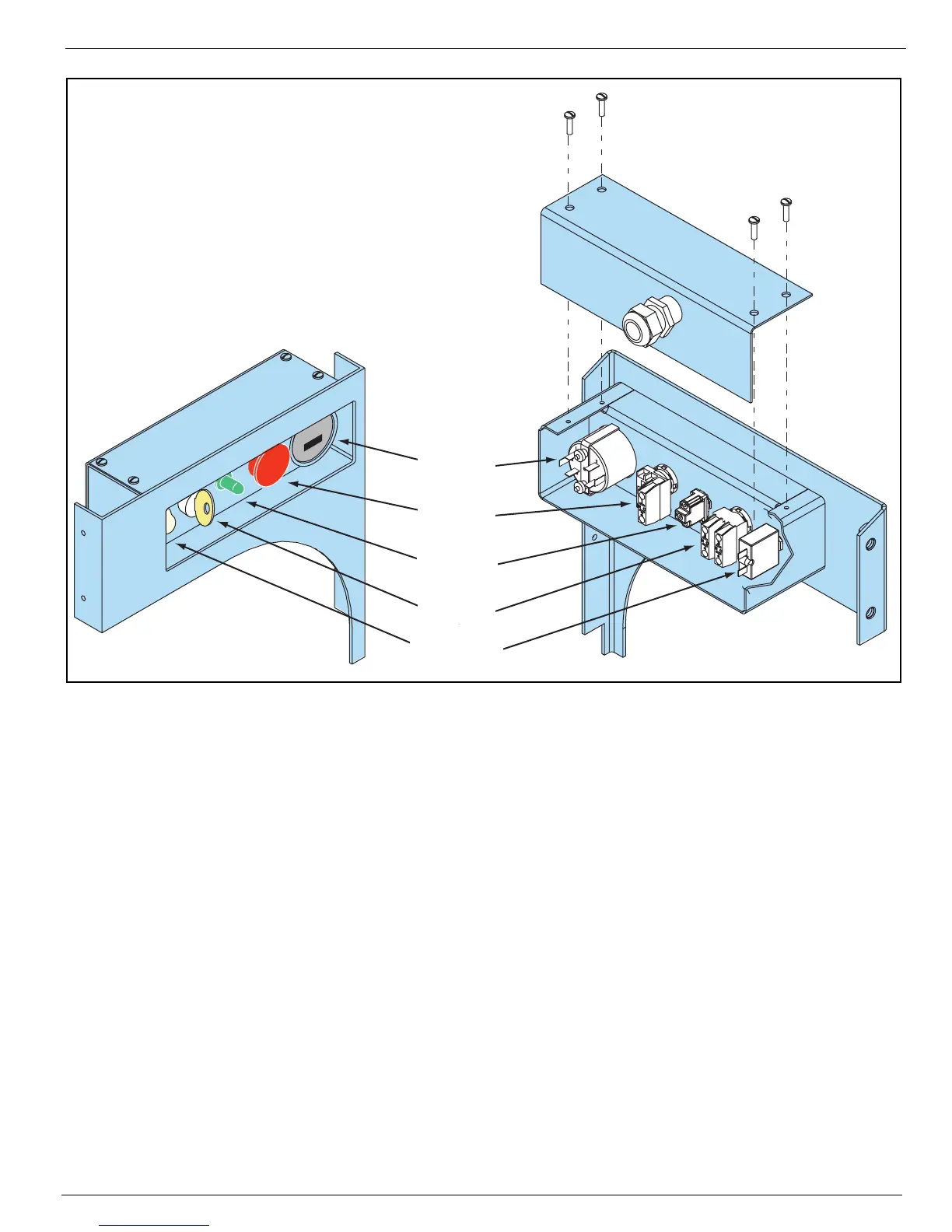

Figure 4-4:
Lower Controls Components
HM
Hourmeter
S1
Emergency
Stop
S2
Lift / Lower
Switch
S3
Key Switch
F1
Circuit Breaker
