Upright MX15 - Page 82

Electric Section 4 - Schematics
Page 4-6 113101-000 MX15 / MX19 | Service Manual

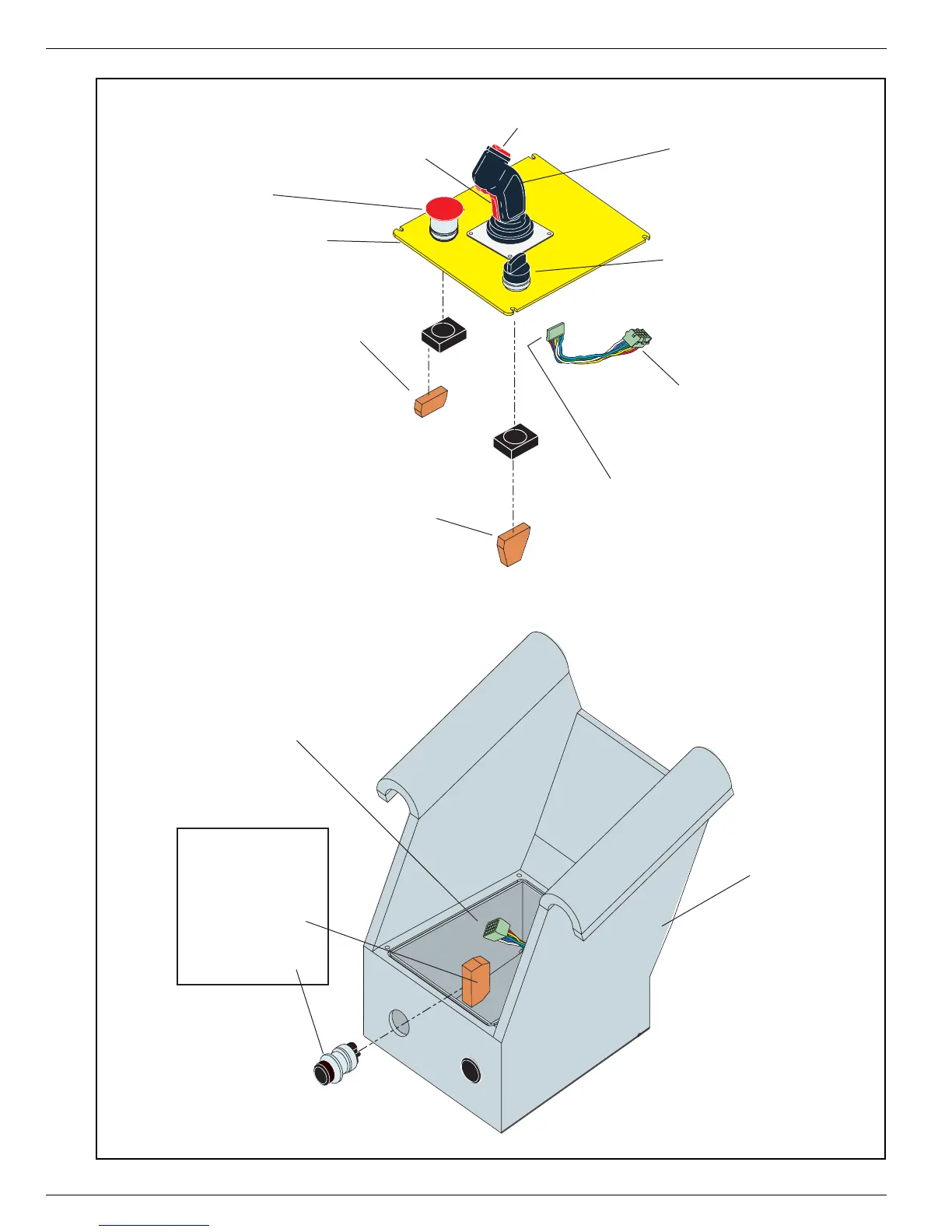

Figure 4-5:
Upper Controls Components
Controller Box
3-Position Selector Switch
Lift/Drive
Red Mushroom Switch
Emergency Stop
Interlock Switch
S7
S10
S8
S9
S4
Control Panel
Contact Block
Normally Closed
Contact Block
Normally Closed
HORN OPTION
Push Button
Contact Block
Normally Open - Normally Closed
Control Handle
Rocker Switch
Steering
Amp Connector (male)
Amp Connector (female)
Hall Effect Connector
S12
