Upright MX19 - Page 100

Page 6-28
Illustrated Parts Breakdown -6.1-Introduction
MX15/19
Platform Controller
065610-020

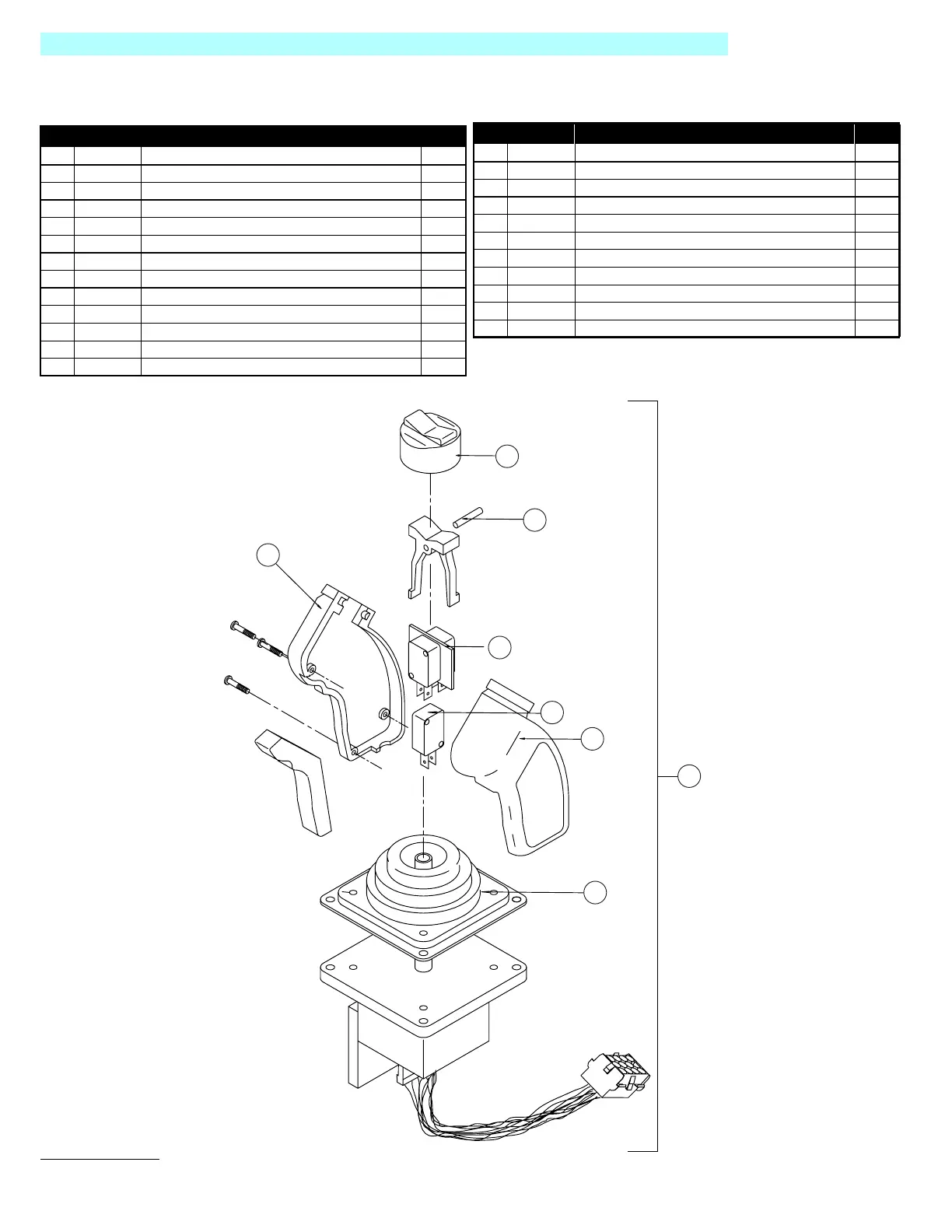

Drawing #1of 2
ITEM PART DESCRIPTION QTY.
1 101188-000 BOX CONTROLLER 1
2 101223-002 COVER CONTROLLER 1
3 066805-002 SWITCH SELECTOR-2 POSITION 1
4 066805-006 SWITCH PUSH BUTTON 1
5 066805-011 CONTACT NC 1
6 066805-012 CONTACT NO - NC 1
7 065512-000 CONTROLLER PQ 1
8 064462-009 HOLE PLUG2
9 068889-099 WEATHERSTRIP FT 2.3
10 011811-006 SCREW SLFTP 10-32 X 3/4 4
11 011761-004 SCREW MACH SLOTTED TRUSS HD #10-24 X 1/2 4
13 101240-000 CABLE ASSY CONTROLLER EURO 1
16 029925-010 CONN CABLE 1
17 029939-003 LOCKNUT3/4 1
18 067990-020 4 PIN RECEPTACLE 1
19 067990-023 4 PIN WEDGE 1
22 063956-003 CONN 12 PIN 1
23 063953-001 CAP, RUBBER 1
24 065512-013 ROCKER PIN 1
25 063953-007 SWITCH, INTERLOCK 1
26 065512-015 SWITCH, STEERING 2
27 065512-016 HANDLE HALF, RIGHT 1
28 065512-017 HANDLE HALF, LEFT 1
29 065512-018 BOOT, HANDLE 1
ITEM PART DESCRIPTION QTY.
23
24
26
25
28
29
27
7
060569-004
