Page 3-15
Maintenance 3.13 - Hydraulic Manifold
MX15/19

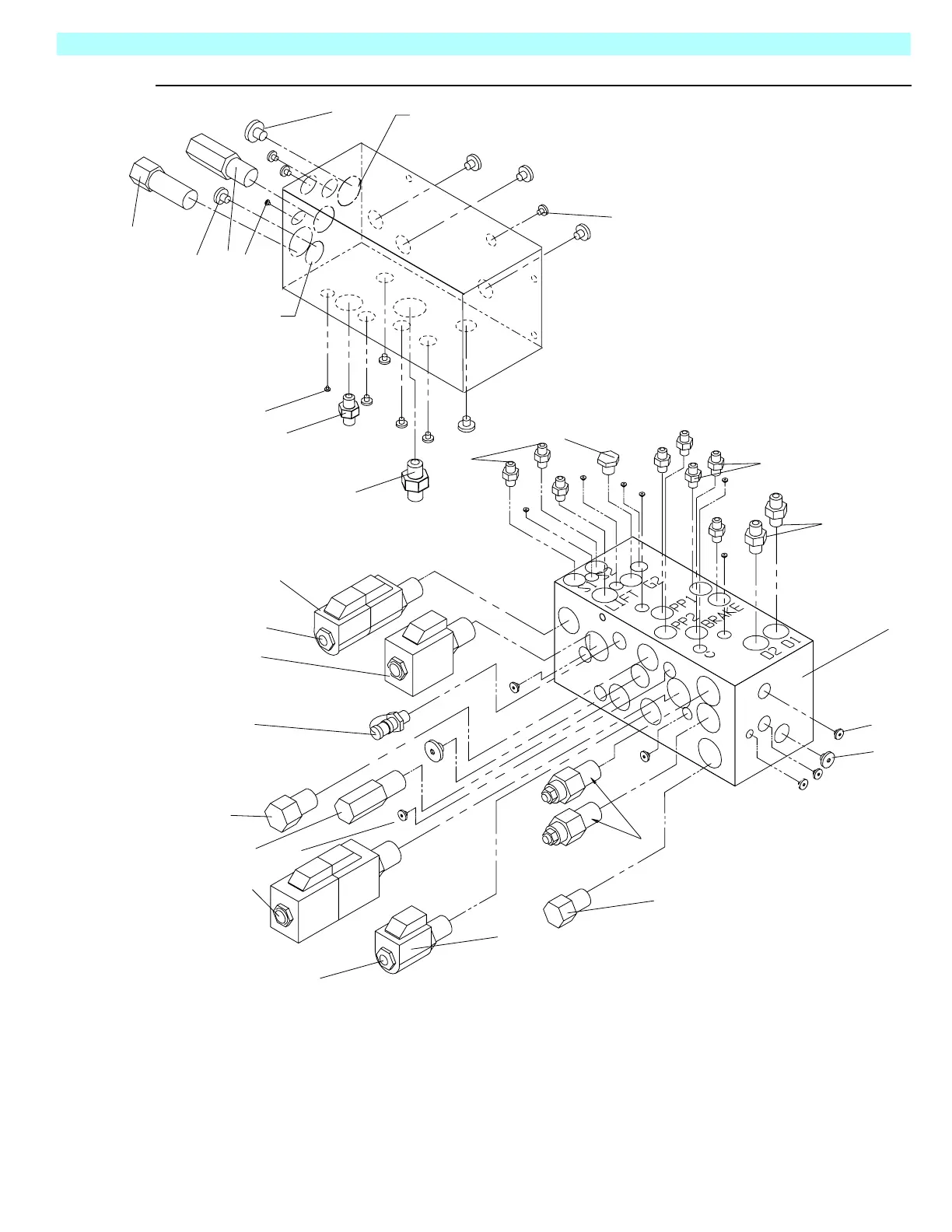

Figure 3-18:
Hydraulic Manifold
#6
#2
#6
#6
#6
2
#2
#2
#4
#4
#4
#4
#4
#4
#8
Pressure
Tank
2
9
17
2
8
4
16
6
18
1
6
#2
#2
#2
#2
#2
#2
#4
#4
#4
#4
#4
#4
#6
#8
5
24
4
3
14
19
7
23
3
10
22
21
12
13
11
5
Front
Bottom
Top
Left
Right
Rear
1. CONTROL VALVE BLOCK
2. FITTING #2PLUG
3. FITTING #4PLUG
4. FITTING STRAIGHT 6MB - 6MJ
5. FITTING STR 4MBH - 4MJ
6. FITTING PLUG #6
7. RELIEF VALVE-- 2000 PSI (138 BAR
8. FITTING 8MB-8MJX
9. RELIEF VALVE, STEERING--1200 PSI (83
BAR)
10. RELIEF VALVE, MAIN--3000 PSI (207 BAR)
11. LIFT SOLENOID
12. COIL
13. STEERING SOLENOID
14. COUNTERBALANCE VALVE
16. FITTING PLUG #8
17. FLOW DIVIDER VALVE (1.0 GPM)
18. DEPRESSION MECHANISM VALVE W/ COIL
19. COIL
21. FITTING GAUGE
22. CHECK VALVE
23. DRIVE SOLENOID W/ COILS
24. FITTING, HEX PLUG 9MM
To Next Page
