Upright MX19 - Page 103

Page 6-31
Illustrated Parts Breakdown -6.1-Introduction
MX15/19

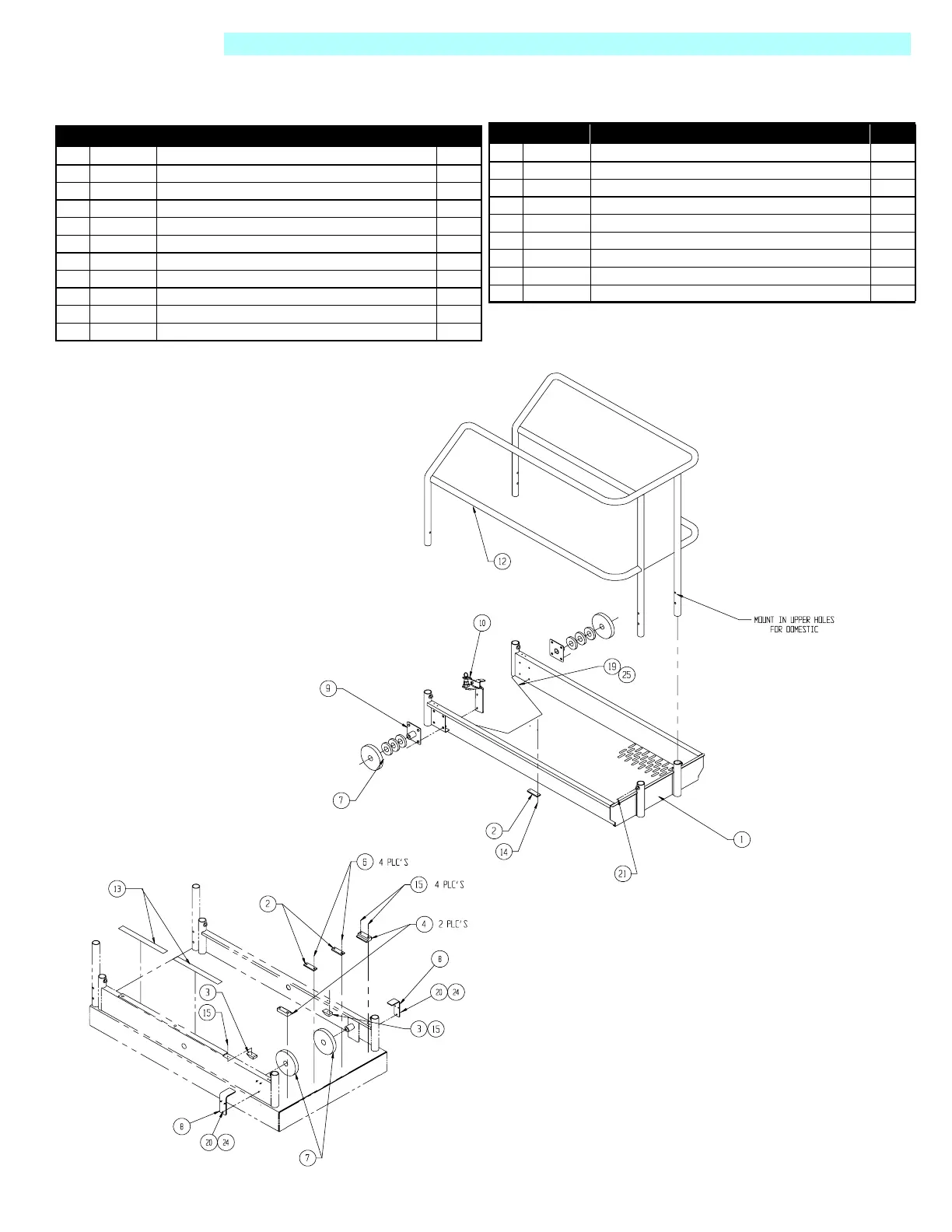

Deck Extension Installation
065614-000
ITEM PART DESCRIPTION QTY.
1 066251-001 WELDMENT DECK EXT. 1
2 066198-000 WEAR PAD 3
3 066193-000 STOP 2
4 066176-000 WEAR PAD 2
6 026553-002 RIVET 3/16 DIA X .126-.250 4
7 066195-000 PLATFORM ROLLER 4
8 066407-011 BRACKET 2
9 066256-000 WELDMENT ROLLER MOUNT 2
10 067185-000 WELDMENT DECK STOP 1
12 066260-001 WELDMENT EXT. R AI L X15 1
13 065988-099 TAPE UHMW 1" FT 3
14 026553-004 RIVET 3/16 DIA X 3/8 GRIP 2
15 026553-008 RIVET 3/16 DIA X 1/2 GRIP 8
18 011254-016 SCREW HHC 3/8-16 X 22
19 011254-014 SCREW HHC 3/8-16 X 13/4 6
20 011252-006 SCREW HHC 1/4-20 X 3/4 8
21 066171-003 BOLT TAP 3/8-16UNC X 24
24 011240-004 WASHER 1/4 FLAT 16
25 011238-006 WASHER 3/8 LOCK 8
26 014996-020 WASHER SAE 1-1/4 ZINC PLATED 6
ITEM PART DESCRIPTION QTY.
060569-004
