Operation
L OWERING THE P LATFORM
1. Ensure the outriggers are deployed and the machine is level.
2. Select either the lower or upper boom lift function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, pull the Control Handle backwards.
4. If the machine is not level the tilt alarm will sound and the machine will not descend.
R OTATING THE P LATFORM
1. Ensure the outriggers are deployed and the machine is level.
2. Select the rotate function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, move the Control Handle forwards or backwards to achieve clock-
wise or counterclockwise rotation.
4. If the machine is not level the tilt alarm will sound and the machine will not rotate.
O PERATING THE J IB
1. Ensure the outriggers are deployed and the machine is level.
2. Select jib function button (the button will illuminate to confirm selection).
3. While engaging the Interlock Switch, move the Control Handle forwards or backwards to jib out or jib in.
4. If the machine is not level the tilt alarm will sound and the machine will not telescope.
E MERGENCY L OWERING

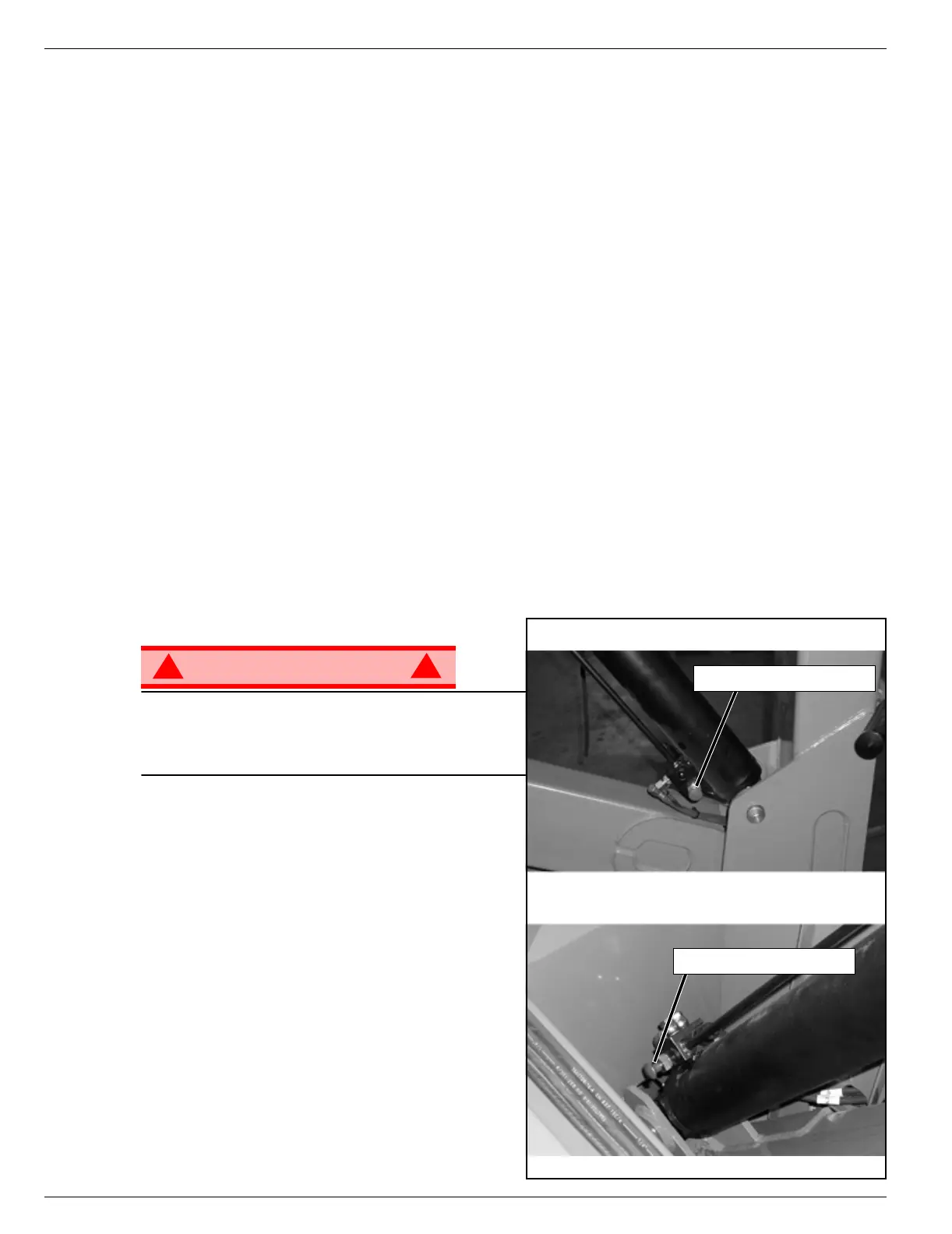

Figure 3: Emergency Lowering Valve
WARNING
!
!
If the platform should fail to lower, NEVER climb
down the elevating assembly.
Stand clear of the elevating assembly while
operating the Emergency Lowering Valve Knob.
TL38
The Emergency Lowering Valve for the TL38 is
located on the valve block of each lift cylinder.
1. Open the Emergency Lowering Valve by pushing
and holding the knob.
2. To close, release the knob. The platform will not
elevate if the Emergency Lowering Valve is
open.
Emergency Lowering Knob
Emergency Lowering Knob
Lower Boom
Upper Boom
